Installing The MX-2424

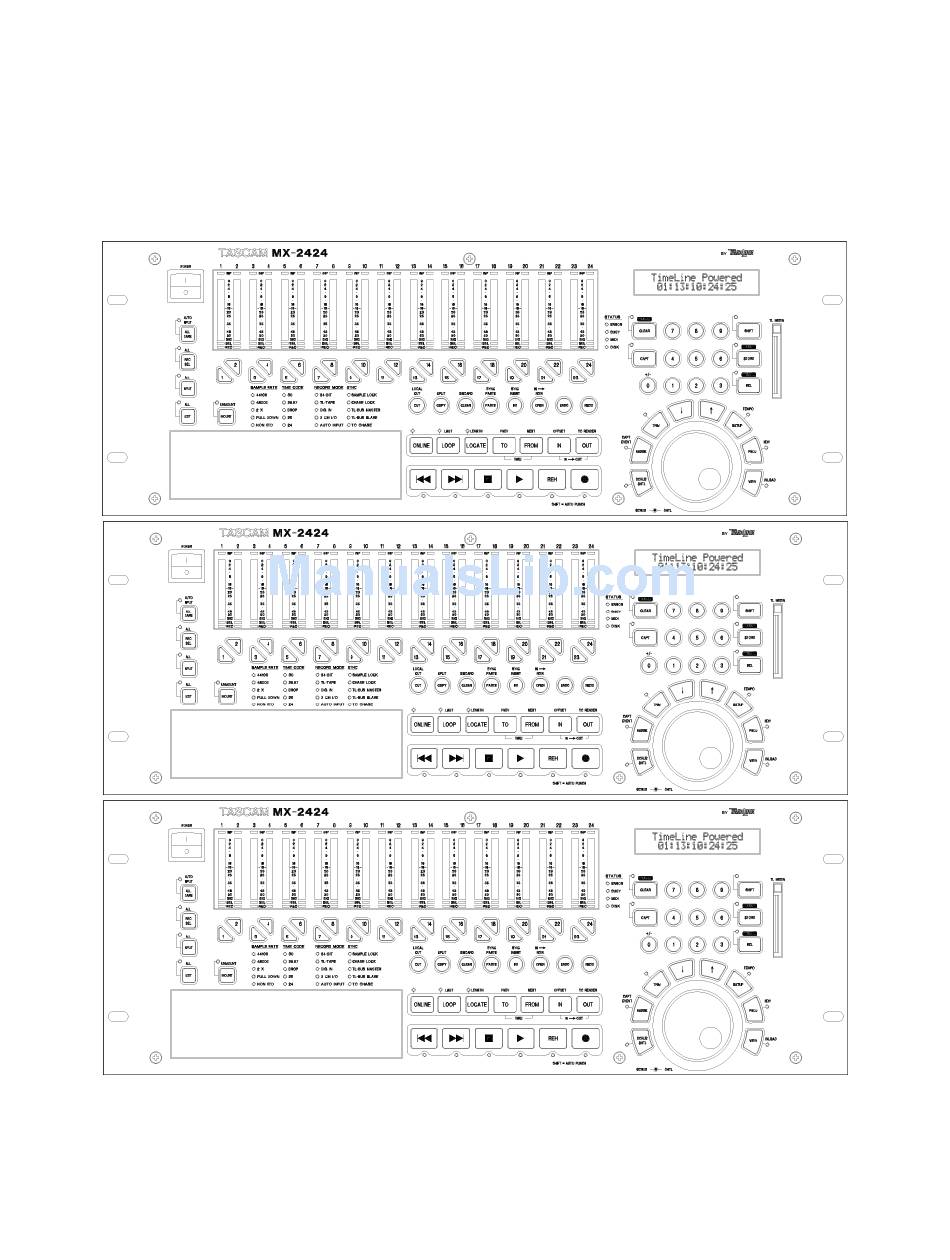

Multiple units can be mounted on top of each other when forced air rack ventilation is provided.
a one inch clearance is required on both sides of the MX-2424 (even in single-unit installations).
In facilities with raised computer-room style flooring, a ventilation opening in the floor is recom-
mended. In no case should the internal rack temperature ever exceed 100 degrees Fahrenheit
(43 degrees Centigrade) during operation (as measured at the rear of any MX-2424 in the system).
When mounting MX-2424's on top of each other in a rack
the feet may be removed by unscrewing them.
To replace the feet:
1. Insert the fastener into the foot
2. Snap the fastener & foot back into the hole in the bottom of the MX-2424 chassis
3. Snap the screw into the fastener's hole
