Creative SXFI AIR C GH0400 - Super X-Fi USB Headset Manual

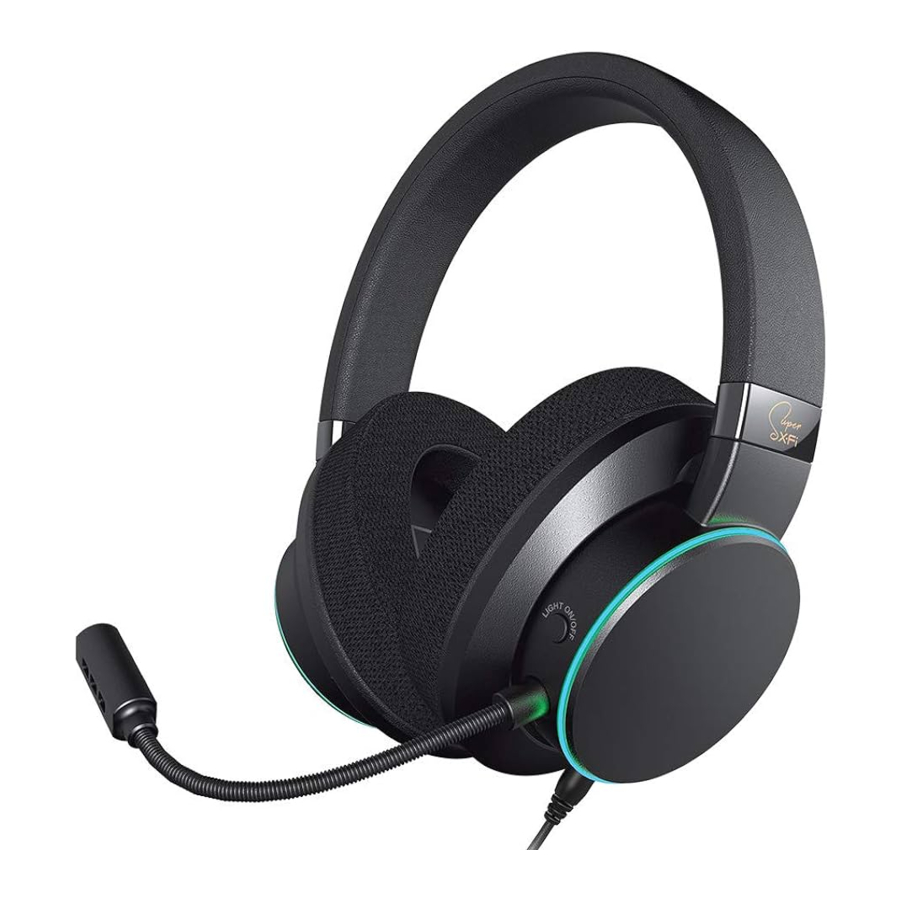

Overview

Overview - Part 1

  1. High Density Memory Foam
  2. Durable Hybrid Headband
  3. Super X-Fi Button
  4. Volume Control Dial
  5. Mic Mute Button
  6. Light On/Off Button
  7. Detachable Noise-Reducing ClearComms Microphone
  1. RGB Lighting

Overview - Part 2
When connected, users may mix Line-in with USB Audio

  1. Micro USB Port
  2. 3.5mm Analog Jack

Enhance Your Audio


Unleash the performance of Super X-Fi with the SXFI App

www.apple.com

play.google.com


Unlock your Creative SXFi AIR C with the SXFI Control Software. Download at support.creative.com

Super X-FI Button

Enabling Super X-FI:

  • Press once to activate SXFI
  • Press once again to deactivate SXFI

RGB Lighting:
Blink once in Green when activated
Blink once again in Orange when deactivated

Light On/Off Button

Light On/Off Button:

  • Press once to enable RGB Lighting
  • Press once again to disable RGB Lighting

Mic Mute Button

Mic Mute Button:

  • Press once to enable Mic Mute
  • Press once again to disable Mic Mute

Mic LED Status Indicator

When Mic Mute is on, Mic LED will light up
When Mic Mute is off, Mic LED will not light up

warning Note: Mic Monitoring is turned on by default. When Mic Mute is enabled, Mic Monitoring will turn off.

Specification

Headphone

  • Driver: 50mm Neodymium magnet
  • Frequency response: 20 Hz ~ 20 kHz
  • Impedance: 32 Ω
  • Sensitivity: 114 dB/mW @ 1 kHz
  • USB input: 5 V

Microphone

  • Type: Unidirectional noise-reduction
  • Frequency response: 50 Hz ~ 15 kHz
  • Impedance: <2.2 kΩ
  • Sensitivity: -42 dB @ 1 kHz

Compliance markings are located on the surface upon removal of ear cup cushion which can be removed by hand.

Other Information

Supplementary documentation for this product includes a detailed user guide, DoC and safety and regulatory information. These documents can be the support.creative.com
Keep this document for future reference.

Hereby, Creative Labs Pte. Ltd. declares the Bluetooth® headset, model no. GH0400 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at http://www.creative.com/


The use of the WEEE Symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help protect the environment. For more detailed information about the recycling of this product, please contact your local authority, your household waste disposal service provider or the shop where you purchase the produc

© 2018 Creative Labs Pte. Ltd. All rights reserved. Creative, the Creative logo, X-FI, SXFI and the Super X-Fi logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Use of this product is subject to a limited hardware warranty. Actual contents may differ slightly from those pictured.
