Creative Sound Blaster Tactic3D Omega GH0130 User Manual

Gaming
Hide thumbs Also See for Sound Blaster Tactic3D Omega GH0130:
Table of Contents

Advertisement

Quick Links

See also: Manual
User's Guide
Model No.: GH0130

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sound Blaster Tactic3D Omega GH0130 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative Sound Blaster Tactic3D Omega GH0130

Summary of Contents for Creative Sound Blaster Tactic3D Omega GH0130

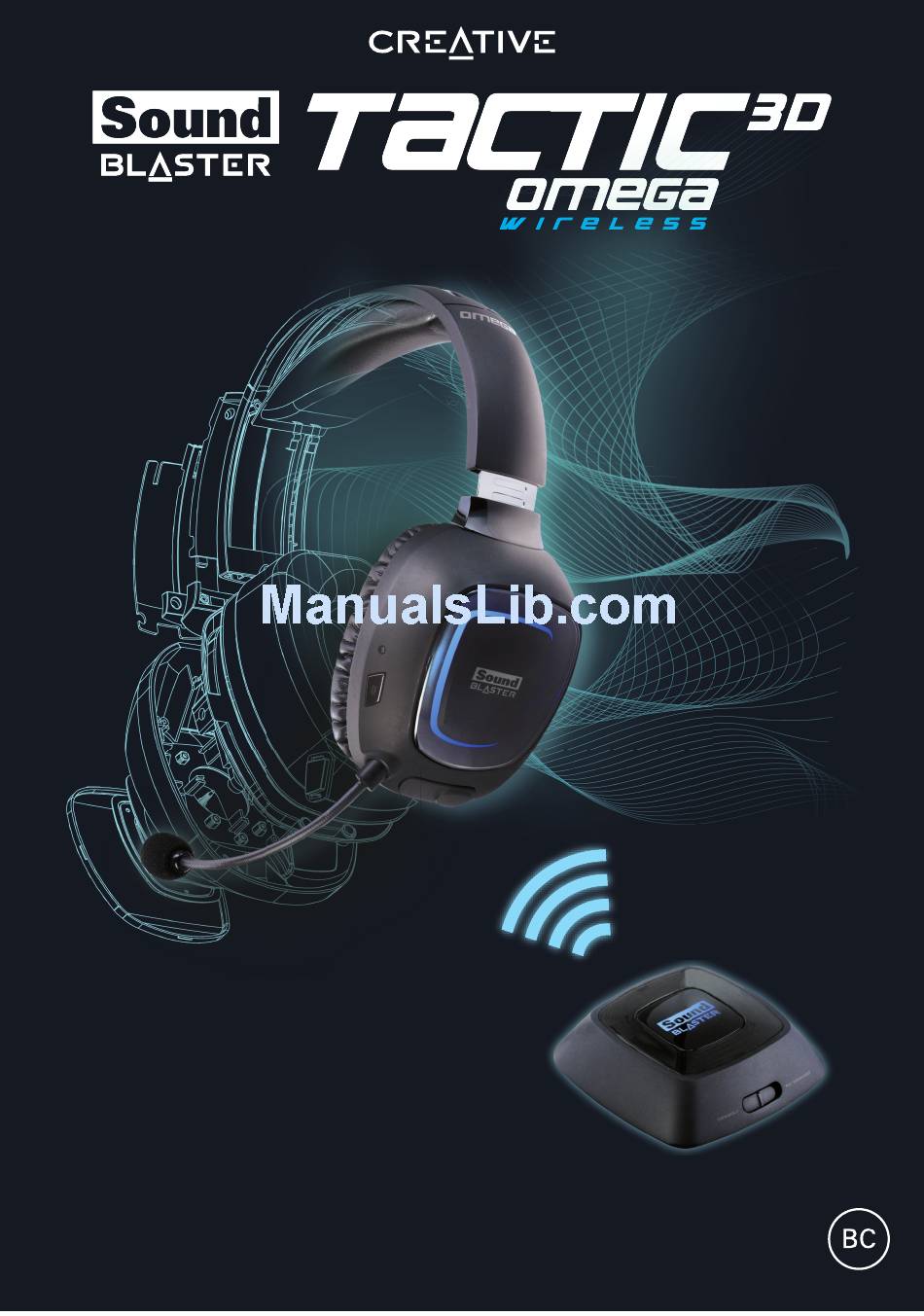

  • Page 1 User’s Guide Model No.: GH0130...

  • Page 2: System Requirements

    Congratulations! You are about to experience the legendary audio quality of Sound ® Blaster on every gaming rig in your arsenal! Gamers have enjoyed the power of Sound Blaster audio on their PC's for over 20 years and now for the first time ever, Sound Blaster Tactic Omega gaming headset brings it wirelessly to PC, Mac, Xbox 360 and PS3.

  • Page 3: About Your Headset

    About Your Headset Sound Blaster Tactic Omega Gaming Headset Adjustable headband Volume Control Reset button buttons Microphone Power LED Mute LED button button Micro-USB port Microphone jack for charging Voice input jack for Noise-canceling Xbox 360 microphone Connect LED Audio input button jack for console...
  • Page 4 Assembling the headset stand NOTE Attach the metal rods as illustrated.

  • Page 5: Setting Up Your Headset

    Setting Up Your Headset For Xbox 360 Default S O LE C O N...
  • Page 6 With HDMI cable Sold separately S O LE C O N If you are using the HDMI audio adapter • Connect the RCA piggyback cable to the HDMI audio adapter’s output jacks. S O LE C O N...
  • Page 7 If you are not using the HDMI audio adapter • Connect the RCA piggyback cable to your TV’s audio output jacks. • Configure your TV to enable analog audio output. Refer to your TV’s user’s guide for instructions. NOTE Slide the Console/PC Mode switch on the transmitter to Console. From the main menu, navigate to System Settings Console Settings Audio...
  • Page 8 For Playstation 3 Default S O LE C O N With HDMI cable S O LE C O N If you are using the composite AV cable • Connect the RCA piggyback cable to your TV’s audio input jacks.
  • Page 9 SO LE CO N If you are not using the composite AV cable • Connect the RCA piggyback cable to your TV’s audio output jacks. • Configure your TV to enable analog audio output. Refer to your TV’s user’s guide for instructions NOTE Slide the Console/PC Mode switch on the transmitter to Console.
  • Page 10 For PC/Mac Your headset can be used without installing any software. However to enjoy the full features of your headset such as SBX Pro Studio and VoiceFX, we recommend you to install the drivers and applications for it by following the steps below Step 1: Download the software Visit www.soundblaster.com to download the latest drivers and...

  • Page 11: Step 3: Install The Software

    Double-click the Install icon. To complete the installation, follow the instructions on the screen. You can launch the Sound Blaster Tactic(3D) Control Panel from the Applications\Creative\Sound Blaster Tactic(3D) Omega folder. Step 4: Set the default audio device (For Mac OS only) Go to System Preferences, then click Sound.

  • Page 12: Charge Your Headset

    Charge your headset When using your headset for the first time, you should charge the headset for at least 8 hours. Connect your headset to the wireless transmitter and turn off the headset while charging. The Power LED flashes red when charging, and lights up red when fully charged.

  • Page 13: Wearing The Headset

    Wearing the Headset Turn on/off the headset Press and hold the headset’s Power button for three seconds to turn it on/off. The Power LED lights up blue when the headset is turned on. Put on the headset Adjust the headband so that the headset rests lightly on your head. Do not tighten excessively.

  • Page 14: Using The Wireless Features

    Using the Wireless Features The wireless capability gives you the convenience and freedom to move around up to a distance of 30 feet (10 meters) away from the transmitter. Your headset and wireless transmitter are paired together and are ready to use.
  • Page 15 Step 3: Successful pairing The Connect LED on the headset and transmitter will stop flashing and light up blue when paired.

  • Page 16: Control Panel

    Sound Blaster Tactic Control Panel Managing your TacticProfiles Activate a profile by clicking selecting it from the list. Click to save all settings to the current profile or create a new profile. Click to delete the active profile. Customizing your avatar You can customize the avatar for each profile by clicking the portrait and selecting another one from the list.
  • Page 17 Adjusting your volume settings Drag the headset or microphone volume marker to adjust the volume level. You can mute/unmute the headset or microphone by clicking their respective icon. Configuring your software settings Click each feature to access its settings page. More information on each feature can be found in their respective sections in this manual.
  • Page 18 Checking your headset’s battery status You can refer to the battery status indicator on the control panel to see how much power is remaining in your headset.

  • Page 19: Sbx Pro Studio Settings

    SBX Pro Studio Settings 1 Audio Test controls Play/Pause or Stop the demo video. 2 SBX Pro Studio enhancements Select to enable or disable each enhancement. 3 Enhancement Level slider Adjust the amount of enhancement to apply. Enhancing your audio experience You can adjust the amount to apply for each enhancement by dragging its slider left to decrease or right to increase.

  • Page 20: Equalizer Settings

    Equalizer Settings 1 EQ presets Select an equalizer preset to apply to your audio. 2 EQ sliders Adjust the equalizer settings. Customizing your EQ settings Select the EQ checkbox to enable this feature, then click the EQ drop- down arrow and select a preset from the list. Selecting a preset will move the EQ sliders to the appropriate values.

  • Page 21: Voicefx Settings

    VoiceFX Settings 1 VoiceFX presets Select a VoiceFX preset to apply to your voice input. 2 VoiceFX audio test Listen to your voice with the selected VoiceFX preset applied. 3 VoiceFX sliders Adjust the VoiceFX settings. Customizing your VoiceFX settings Select the VoiceFX checkbox to enable this feature, then click the VoiceFX drop-down arrow and select a preset from the list.

  • Page 22: Appearance Settings

    Appearance Settings 1 Color selector Select a highlight color for the software user interface. 2 Theme selector Select a graphical style for the software user interface. 3 Intensity slider Adjust the brightness of the LEDs. 4 Pulsation slider Adjust the frequency at which the LEDs fade on and off. Choosing a color Click on the color that you want to use as the highlight.

  • Page 23: Using Your Headset

    Using Your Headset Playing Games Your headset is equipped with cutting edge audio technologies and software to enhance the audio in your games. SBX Pro Studio will elevate your gaming experience to the next level, allowing you to hear sound details in games you have never heard before! SBX Pro Studio Crystalizer restores the dynamic range that is lost when iTunes and MP3 music gets compressed.

  • Page 24: Configuring Creative Alchemy

    • Navigate to the folder where you have installed the game. • Right-click on the game’s launcher and select Run as administrator. • Exit the application and launch Creative ALchemy again. The game should now appear in the left column.

  • Page 25: Software Suite

    Creative Software Suite For PC: • Sound Blaster Tactic Control Panel • Creative ALchemy • Creative System Information For Mac: • Sound Blaster Tactic Control Panel NOTE • The applications available for your headset may differ from those listed here.
  • Page 26 SBX Pro Studio Technology (For PC and Mac only) • SBX Pro Studio Crystalizer • SBX Pro Studio Surround • SBX Pro Studio Bass • SBX Pro Studio Dialog Plus • SBX Pro Studio Smart Volume...

  • Page 27: Troubleshooting

    Troubleshooting Problems with Multiple Audio Devices The onboard audio chipset seems to be in conflict with Sound Blaster Tactic Disable your computer's onboard audio chipset. See your computer's motherboard documentation for details Problems with Sound No sound from the headset. Check the following: •...

  • Page 28: Safety Information

    The product must be disposed of according to local environmental regulations. To replace the battery, return your product to your regional support office. For product service information, go to www.creative.com. • Do not expose to excessive heat such as sunlight, fire or the like.
  • Page 29 (Arrêté du 24 Juillet 1998). Les caractéristiques techniques de ces écouteurs se trouvent dans le manuel en ligne et/ou sur le site internet de Creative. Si vous choisissez d'utiliser un autre casque ou d'autres écouteurs, veuillez vous assurer au préalable que leurs caractéristiques techniques soient les mêmes.

  • Page 30: Declaration Of Conformity

    Declaration of Conformity According to the FCC96 208 and ET95-19 Manufacturer/Importer's Name: Creative Labs, Inc. Manufacturer/Importer's Address: 1901 McCarthy Boulevard Milpitas, CA. 95035 United States Tel: (408) 428-6600 declares under its sole responsibility that the product Trade Name: Creative Labs Model Numbers: GH0130A &...

  • Page 31: Regulatory Information

    Regulatory Information Notice for the USA Federal Communication Commission (FCC) Interference Statement FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 32: Notice For Canada

    Notice for Canada This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme aux normes canadiennes NMB-003 et CNR-210. This device complies with Industry Canada licence-exempt RSS standard. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

  • Page 33: European Compliance

    Operation with non-certified computers or incorrect cables may result in interference to other devices or undesired effects to the product. MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Limited or one of its affiliated companies could void the user’s warranty and guarantee rights.

  • Page 34: Einhaltung Der Europäischen Bestimmungen

    Störungen anderer Geräte oder unerwünschten Auswirkungen auf das Produkt führen. MODIFIZIERUNG: Jegliche Änderung oder Modifizierung des Produkts, die nicht ausdrücklich von Creative Technology Limited oder einer der zugehörigen Firmen genehmigt worden ist, kann für den Benutzer zum Erlöschen der Garantie und der Gewährleistungsrechte führen.

  • Page 35: Homologación Para Europa

    Luokan rajoituksia noudattamattoman tietokoneen tai vääränlaisten kaapeleiden käyttäminen voi aiheuttaa häiriöitä muihin laitteisiin tai haitata itse laitteen toimintaa. MUOKKAUKSET: Muutokset tai muokkaukset, joita Creative Technology Limited tai sen tytäryhtiöt eivät nimenomaisesti ole hyväksyneet, voivat mitätöidä tuotteelle annetun takuun. Európai megfelelõség Ez a termék megfelel a következõknek:...

  • Page 36: Conformità Alle Normative Europee

    AANPASSING: Alle wijzigingen of modificaties die niet uitdrukkelijk zijn goedgekeurd door Creative Technology Limited of een van de gelieerde maatschappijen, kunnen ertoe leiden dat de rechten van de...
  • Page 37 MODIFICAÇÃO: Quaisquer alterações ou modificações que não sejam expressamente aprovadas pela Creative Technology Limited ou por uma das suas afiliadas, pode anular a garantia do utilizador e os direitos inerentes à mesma.

  • Page 38: Соответствие Европейским Нормам

    än 3 m. Användning med icke certifierade datorer eller felaktiga kablar kan leda till interferens på annan utrustning eller oönskade effekter på produkten. MODIFIERING: Alla förändringar och modifieringar som inte är uttryckligen tillåtna av Creative Technology limited eller något av dess filialföretag kan göra användarens garanti och garantirättigheter...
  • Page 39 Lithium rechargeable battery is a resource that can be recycled. • For recycling of embedded lithium rechargeable batteries inside Creative products, please do not attempt to remove the battery from the device. For recycling information and instruction, please go to Creative Media K K customer support at http://jp.creative.com/support/contact/ (in Japanese) •...

  • Page 40: Vietnam Rohs Statement

    Information in this document is subject to change without notice and does not represent a commitment on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose without the written permission of Creative Technology Ltd.
