PS3 INFIMOD Installation Manual
Installation time 10-15 minutes.

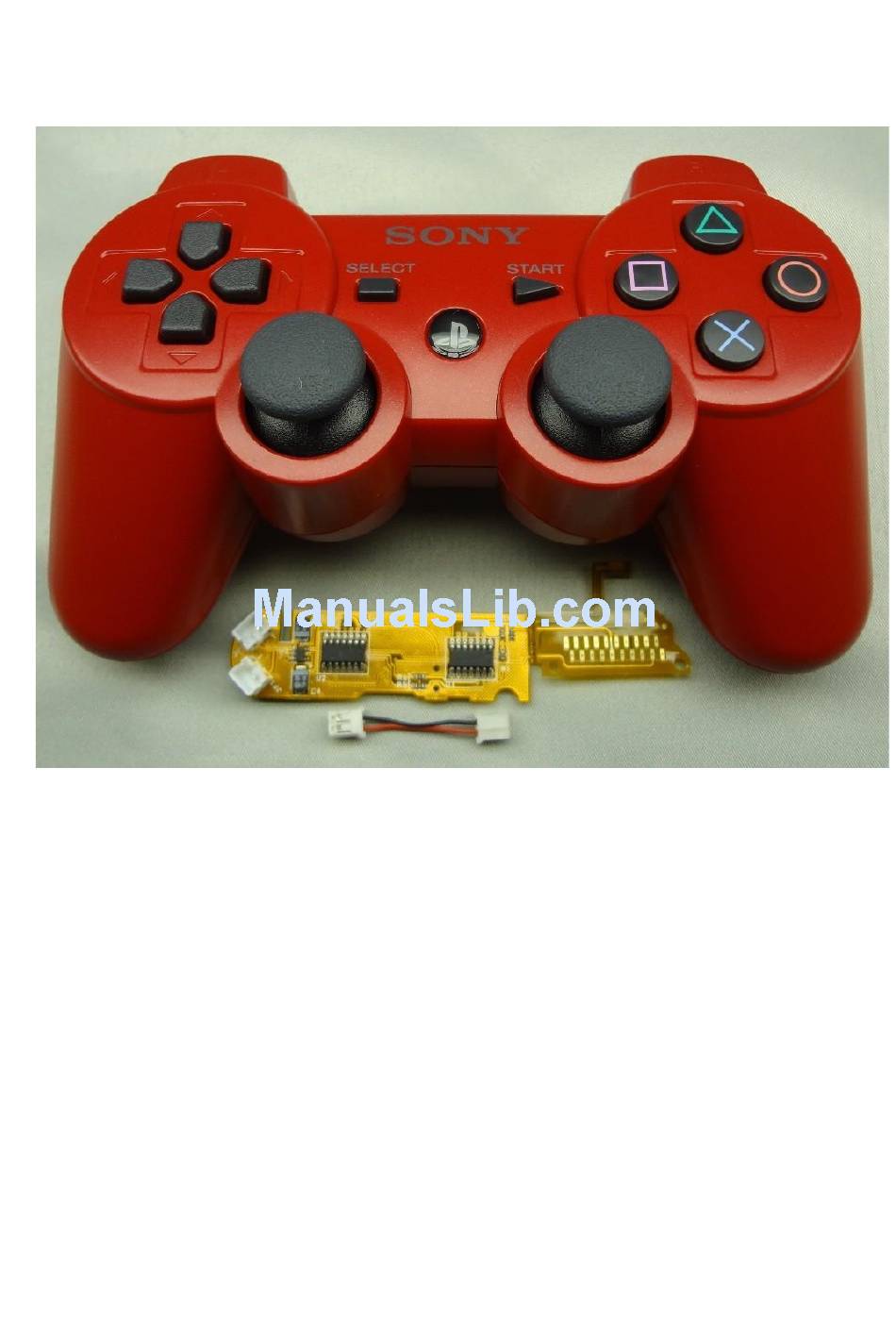

INFIMOD includes electronic board and cable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS3 INFIMOD and is the answer not in the manual?

Questions and answers

Related Manuals for Sony PS3 INFIMOD

Summary of Contents for Sony PS3 INFIMOD

  • Page 1 PS3 INFIMOD Installation Manual Installation time 10-15 minutes. INFIMOD includes electronic board and cable.
  • Page 2 Unscrew 5 screws.
  • Page 3 Open first back side of the controller. If you have any problems opening your controller then on YouTube you can find many videos with explanations how to do it. Search for ”disassemble a ps3 controller”.
  • Page 4 Opened controller. Gray piece is the battery.
  • Page 5 Disconnect battery from the green board. Try to hold white connector and don't pull the wires.
  • Page 6 Unscrew additional screw.
  • Page 7 Lift the board.
  • Page 8 Place the original board like on the picture.
  • Page 9 Now we need to lift the PCB(prinetd circuit board) of the buttons. Insert screwdriver as shown on the picture.
  • Page 10 Lift right side up.
  • Page 11 Then with the help of twizzers or your finger push left side of the board as shown on the picture.
  • Page 12 With the help of screwdriver lift left side of the board.
  • Page 13 Both sides are lifted. Under the board you will see black cushion.
  • Page 14 Remove this cushion and put to the side.
  • Page 15 This picture shows the cushion on the left side and shaped plastick that was under the cushion.
  • Page 16 With the help of the tweezers (included in the kit) put white rectangular piece of paper as shown on the next picture.
  • Page 17 White rectangular piece of paper is placed.
  • Page 18 Place black cushion above white piece of paper. Please note: smooth surface of the cushion must be at the top.
  • Page 19 Black cushion is placed. Please note: place the cushion in the center between two pins.
  • Page 20 Return back clear PCB. Put white plastic pins thru the clear PCB holes.
  • Page 21 Now it is possible to install INFIMOD. Insert this hole first.
  • Page 22 Then this hole.
  • Page 23 Then this holes and slots.
  • Page 24 And this slot also.
  • Page 25 INFIMOD placed.
  • Page 26 Place original green board back. Look on the wires of the motors. They should be above the green board.
  • Page 27 Wires of the motors above the green board. Please look at the 4 red arrows on the pictures. If the green board placed right then you should see plastic parts out. See next picture.
  • Page 28 The green board is placed.
  • Page 29 Insert small cable into the green board connector. Center line of the cable connector must be in the upper position.
  • Page 30 Insert other side of the cable connector to the INFIMOD connector.
  • Page 31 Place battery.
  • Page 32 Connect battery to the other INFIMOD connector.
  • Page 33 Place all wires to the center. If wires will be on the sides then the back case of the controller can damage them.
  • Page 34 Place the back case on the front side of the controller.
  • Page 35 Then close back side. If you have any problems with closing your controller then on YouTube you can find many videos with explanations how to do this. Search for ”assemble a ps3 controller”.
  • Page 36 Done. Don't forget about the 5 screws.

  • Page 37: Infimod 73M - Ps3 Manual

    INFIMOD 73M - PS3 Manual. Button's combinations. Main modes. Default modes and modes explanations. 1st sub-mode and 2nd sub-mode. Change 2nd sub-modes. Quick toggle to Mode0. Temporarily disable and then enable 2nd sub-mode. 1st sub-mode and speed changing. Default reset. 10.Show current mode.
