Audison VCRAK - Subwoofer Volume Remote Control Kit Manual

VCRAK

TECHNICAL FEATURES

Power supply: 10 ÷ 15VDC
Bandwidth: 10 Hz ÷ 50 kHz
Gain: -100 ÷ +6 dB
Fuse: 250 mA, delayed (T)
VCRA lighting: green, red, orange
Muting: internal

FEATURES

VCRAK is a kit for the subwoofer volume remote analogue control that permits to easily adjust the amplifier output level without moving from the listening point. It consists of:

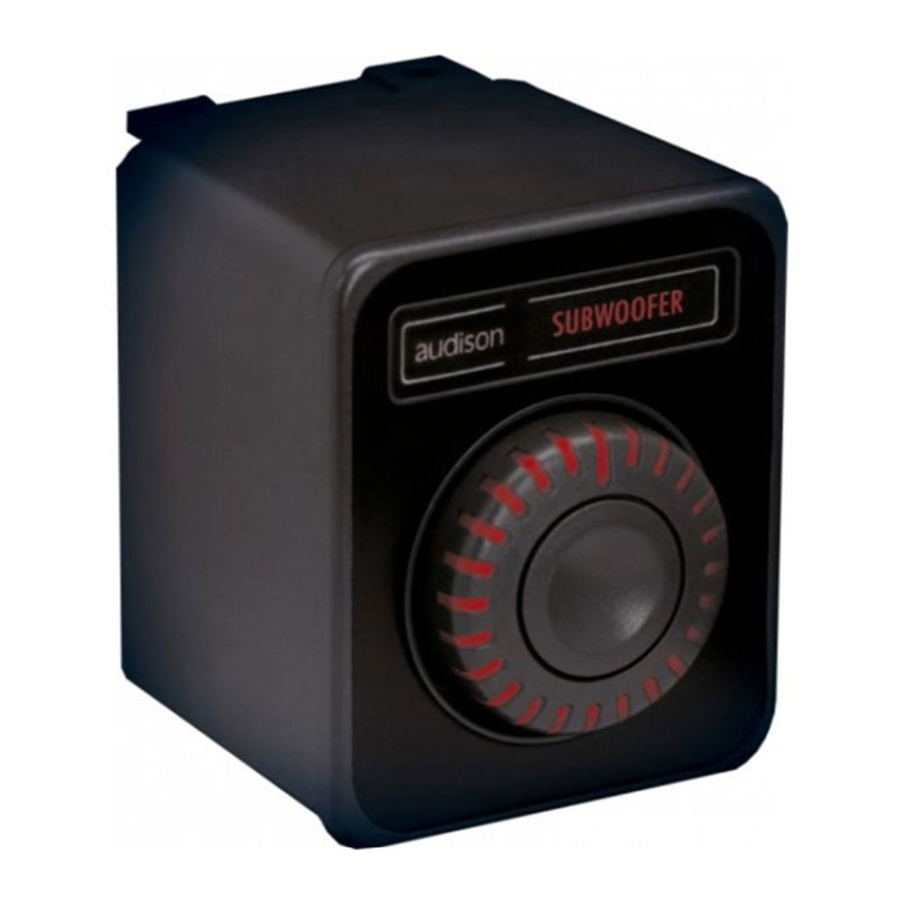

1. VCRA level control to place close to the listening point; it has variable lighting (red, orange and green) and intensity (Dimmer).
2. VCA (Voltage Control Amplifier) module, to put inside the amplifier to control.
3. Connection cables kit.

VCRAK, based on VCA functions, can be only used with the components that are suitable to accept this module.



When designing it, we minded not to affect the signal path in order not to affect sound itself. VCRA varies VCA module reference voltage, that is proportional to the signal level to modify; this makes preamplified signal stay unchanged.

REMARK: VCA module is stereo. This allows the amplifier subwoofer section mono/stereo modes not to change according to the amplifier features or to the chosen configuration.

INSTALLATION

There are six sockets in VCRA rear panel, supplied with small spring terminal blocks to connect to power supply (battery) and amplifier. Please follow instructions and connections diagram for a correct installation.

GROUND: -12 VDC, to be connected to battery negative (-).

REMOTE IN: Input for the cable coming from the source or the amplifier; it switches on internal lighting.

+12 VDC: Battery positive (+).

LIGHT SW: Control to decrease internal lighting when the car lights are turned on. To be connected after the lights switch.

VOLUME CONTROL: Outputs to connect to the amplifier VCR sockets.

REMARKS:

1. The two contacts of VOLUME CONTROL sockets are equivalent and not polarised. They can be connected to the two VCR sockets of the amplifier through the white-yellow wire as you like.
2. Please refer to the amplifiers owner's manuals in order to install VCA module.

We recommend the use of audison cable products in order to have a very good installation.

PRECAUTIONS

In order to insure the system good functioning, avoid to install VCRA in hot or damp places.
Respect power supply voltage polarity.
For safer driving, we recommend to adjust volume not to drown external traffic sounds.

CONNECTIONS DIAGRAM

CONNECTIONS

Press the screwdriver point on the terminal block, then insert the peeled cable to the hole bottom. Release the terminal block insuring the cable perfect fastening. Repeat the operation with the other contacts.

Use the cables given with the device. Otherwise, please use cables with 1 mm maximum diameter, peeling their ends for about 10 mm.

VCRAK USE

VCRA level control has a knob with central tripping ("0" position). If the knob is adjusted on this position, subwoofer volume stays unchanged.
If you turn the knob counterclockwise, you gradually decrease subwoofer volume until it is completely silent.
If you turn the knob clockwise, you gradually increase subwoofer volume until its output level doubles.

ADJUSTMENTS

1. Set VCRA knob on the central tripping.
2. Adjust output levels of the system channels through a standard calibration.
3. Adjust subwoofer volume by turning VCRA knob according to your needs.

HOW TO SELECT LIGHTING COLOUR

You can choose three different colours, green, red and orange, in order to make VCRA lighting suitable to the car dashboard it is installed on.
In order to set the colour you like, remove VCRA chassis through the two rear screws and connect the two jumpers to the connector as indicated below. There is a short caption on the printed circuit board inside VCRA that explains how to carry out this simple operation.

• Red (R): position 1 and 2

• Orange (O): position 2 and 3 ^Caption

• Green (G): position 1 and 3


DASHBOARD MOUNTING

PANEL MOUNTING

VCRA control module can be also installed on panel. Please follow the installed on panel. Please follow the instructions below in order to install it in the right way:

1. . Make a rectangular hole, 32 x 40mm(w x h).


2. . Remove the screws that fasten VCRA chassis.


3. . Clean the hole edges and VCRA front panel rear surface where bi-adhesive tape must be applied with alcohol (bi-adhesive tape is given with the device).


   Make sure alcohol does not damage the possible plastic where you drilled the hole using it on a hidden place first. Remove one of the two protective films from the bi-adhesive tape and apply it on VCRA front panel back by pressing your fingers on it, in order to insure perfect adherence.
4. Make connections and after removing the other protective film from the biadhesive tape insert VCRA into the hole by pressing on it.
