Ninja Foodi POWER NUTRI CB100UK - 2-in-1 Blender Manual

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY • READ ALL INSTRUCTIONS BEFORE USE

	Read and review instructions for operation and use.
	Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.
	For indoor and household use only.
When using electrical appliances, basic safety precautions should always be followed, including the following:

burn hazard
To reduce the risk of fire, electric shock, serious injury, death, or damage when using this appliance, follow these basic safety precautions.

General Precautions

Carefully observe and follow all warnings and instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
ALWAYS exercise care when handling the Hybrid Edge Blades Assembly. The blades are sharp, handle carefully. ONLY grasp the Hybrid Edge Blades Assembly by the outer perimeter of the blade assembly base. Failure to use care when handling the blade assembly will result in a risk of laceration.
Take your time and exercise care during unpacking and appliance setup. This appliance contains sharp, loose blades that can cause injury if mishandled.
Take inventory of all contents to ensure you have all parts needed to properly and safely operate your appliance.
Blades are sharp. Handle carefully.
Unplug the appliance from the socket when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug by the body and pull from the socket. NEVER unplug by grasping and pulling the flexible cord.
B efore use, wash all parts that may contact food. Follow washing instructions covered in this instruction manual.
To protect against the risk of electric shock, DO NOT submerge the appliance or allow the power cord to contact any form of liquid.
DO NOT use this appliance outdoors. It is designed for indoor household use only.
This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance shall be replaced.
DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. This appliance has no user-serviceable parts. If damaged, contact SharkNinja for servicing.
Extension cords should NOT be used with this appliance.
DO NOT allow children to operate this appliance or use as a toy. Close supervision is necessary when any appliance is used near children.
This appliance is NOT intended to be used by people with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Before each use, inspect blade assembly for damage. If a blade is bent or damage is suspected, contact SharkNinja to arrange for replacement.
DO NOT attempt to sharpen blades.
DO NOT allow the unit or the cord to hang over the edges of tables or counters. The cord may become snagged and pull the appliance off the work surface.
DO NOT allow any part of the unit to contact hot surfaces, including stoves and other heating appliances.
ALWAYS use the appliance on a dry and level surface.
NEVER place a blade assembly on the motor base without it first being attached to the cup.
Keep hands, hair and clothing out of the container when loading and operating
ONLY use attachments and accessories that are provided with the product or are recommended by SharkNinja. The use of attachments not recommended or sold by SharkNinja may cause fire, electric shock, or injury.
During operation and handling of the appliance, avoid contact with moving parts.
DO NOT operate the appliance with an empty container.
DO NOT fill containers past the MAX FILL or MAX LIQUID lines.
DO NOT microwave any containers or accessories provided with the appliance.
DO NOT use for grinding ingredients.
Before operation, ensure all utensils are removed from containers. Failure to remove utensils can cause containers to shatter and potentially result in personal injury and property damage.
NEVER operate the appliance without lids and caps in place. DO NOT attempt to defeat the interlock mechanism. Ensure the container and lid are properly installed before operation.
DO NOT expose the containers and accessories to extreme temperature changes. They may experience damage.
NEVERleave the appliance unattended while in use.
DO NOT blend hot liquids. Doing so may result in pressure buildup and steam exposure that can pose a risk of the user being burned.
If you find unmixed ingredients sticking to the sides of the cup, stop the appliance, remove the blade assembly and use a scraper to dislodge ingredients.
DO NOT attempt to remove the container and lids from the motor base while the blade assembly is still spinning. Allow the appliance to come to a complete stop before removing lid and container.
Remove the Hybrid Edge Blades Assembly from the Power Nutri Cup or Power Nutri Bowl upon completion of blending. DO NOT store ingredients before or after blending them in the cup with the blade assembly attached. Some foods may contain active ingredients or release gases that will expand if left in a sealed container, resulting in excessive pressure buildup that can pose a risk of injury. For ingredient storage in the cup, use only Spout Lid to cover. For ingredient storage in the bowl, use only Spout Lid or Storage Lid.
If the appliance overheats, a thermal switch will activate and temporarily disable the motor. To reset, unplug the appliance and allow it to cool for approximately 15 minutes before using again.
The maximum wattage rating for this appliance is based on the configuration of the Hybrid Edge Blades Assembly and Power Nutri Cup. Other configurations may draw less power or current.
DO NOT process dry ingredients without adding liquid to the Power Nutri Cup or Power Nutri Bowl. They are not intended for dry blending.
To protect against risk of electrical shock, DO NOT immerse the motor base in water or other liquid. Unplug the motor base before cleaning.

SAVE THESE INSTRUCTIONS

GETTING TO KNOW YOUR DEVICE

PARTS

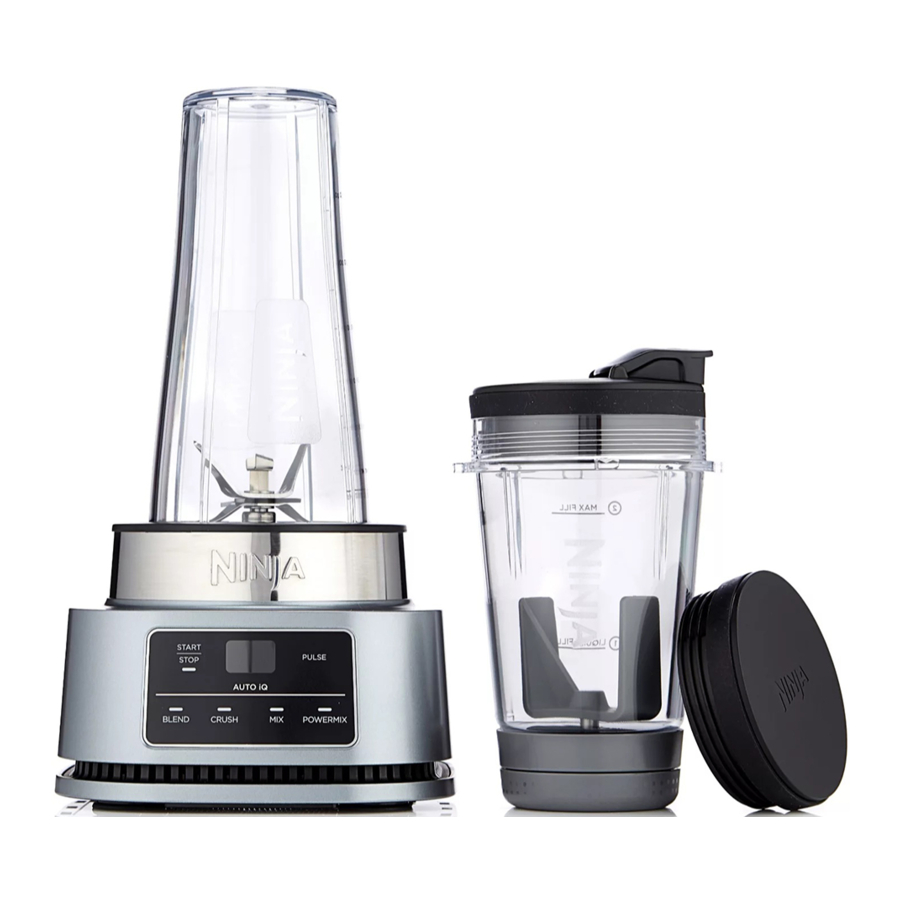

GETTING TO KNOW YOUR DEVICE - Parts

Spout Lid
700ml Power Nutri Cup
Storage Lid
400ml Power Nutri Bowl
Hybrid Edge Blades Assembly
Motor Base(attached power cord not shown)

NOTE: The Hybrid Edge Blades Assembly is not compatible with other Ninja products.

To order additional parts and attachments, visit ninjakitchen.co.uk

BEFORE FIRST USE

Review all warnings above before proceeding.

NOTE: Handle the Hybrid Edge Blades Assembly by grasping around the perimeter of the blade assembly base.

NOTE: All attachments are BPA free and dishwasher safe. It is recommended that the containers, lids and blade assembly be placed on the top rack of the dishwasher. Ensure blade assembly and lid are removed from the container before placing in the dishwasher. Exercise care when handling blade assembly.

Remove all packaging materials from the unit. Exercise care when unpacking blade assembly, as the blades are sharp.
Wash containers, lids and blade assembly in warm, soapy water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assembly, as the blades are sharp.
Thoroughly rinse and air-dry all parts.

GETTING TO KNOW THE POWER NUTRI BOWL

Powering through tough and frozen ingredients used to require a lot of stopping, scraping and recipe tinkering. But now, it's easier than ever to create thick and spoonable smoothie bowls, nut butters and more. All you have to do is twist the Power Paddle while blending to push ingredients down toward the blade.
It's like having a built-in tamper.

USING THE CONTROL PANEL

AUTO-IQ PROGRAMS
Intelligent preset programs combine unique blending and pausing patterns that do the work for you. Once a preset program is selected, it will start immediately and automatically stop when blending is complete. To stop blending before the end of the program, press the currently active button again.
USING THE CONTROL PANEL

AUTO-IQ PROGRAMS:
BLEND
Combine your favourite fresh or frozen ingredients, liquids and powders to create smoothies and proteins shakes.
CRUSH
Turn ice, juice and fruit into expertly blended frozen drinks. Also ideal for tough, leafy or fibrous whole fruits and vegetables including their skins, seeds and stems.
MIX
Create spoonable smoothie bowls to frozen yogurt.
POWERMIX
Create anything from spreadable nut butters to the perfect houmous.
NOTE: For best results when using the Power Nutri Bowl, use the Auto-iQ Programs, MIX and POWERMIX.

MANUAL PROGRAMS:
NOTE: Manual programs cannot be used in conjunction with any Auto-iQ programs.
START/STOP
Press once to start continuous running up to 60 seconds; press again to stop. Can also be pressed to stop a running Auto-iQ program.
PULSE
Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

USING THE POWER NUTRI BOWL

Review all warnings before proceeding.

Plug in motor base and place on a clean, dry, level surface such as a worktop or table.
Add liquid then ingredients to the Power Nutri Bowl. DO NOT add liquid past the LIQUID FILL line or ingredients past the MAX FILL line.
Place the Hybrid Edge Blades Assembly on the top of the bowl and turn clockwise to seal.
Turn the bowl upside down and install on motor base by aligning the tabs on the bowl with the slots on the base. Then, rotate bowl clockwise until it clicks. Once locked in place, the programs will illuminate and the unit will be ready for use.

NOTE: While processing, twist the Power Paddle anti-clockwise continuously.
1. If using an Auto-iQ program, select the program that best suits your desired output. During the blending process, twist the Power Paddle anti-clockwise continuously. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press the currently active program again.
2. If using START/STOP, once the ingredients have reached your desired consistency, press START/STOP again and wait for the unit to come to a complete stop. During the blending process, make sure to twist the Power Paddle anti-clockwise continuously.
Remove the bowl from the motor base by turning it anti-clockwise and then lifting up.
Remove the blade assembly by twisting anti-clockwise. DO NOT store blended contents with the blade assembly attached. Only use the Spout Lid or Storage Lid to cover. Exercise care when handling the blade assembly, as the blades are sharp.
To enjoy on the go, place the Spout Lid or Storage Lid onto the bowl and twist lid clockwise until firmly sealed.
Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

USING THE POWER NUTRI CUP

Review all warnings before proceeding.

Plug in motor base and place on a clean, dry, level surface such as a worktop or table.
Add ingredients to the Power Nutri Cup. DO NOT add ingredients past the MAX LIQUID line
.
Place the Hybrid Edge Blades Assembly on the top of the cup and turn clockwise to seal.
Turn the cup upside down and install on the motor base by aligning the tabs on the cup with the slots on the base. Then, rotate cup clockwise until it clicks. Once locked in place, the programs will illuminate and the unit will be ready for use.
1. If using an Auto-iQ program, select the program that best suits your desired output. The preset feature will automatically stop at the end of the program. To stop the unit at any time, press the currently active program again.
2. If using START/STOP, once the ingredients have reached your desired consistency, press START/STOP again and wait for the unit to come to a complete stop.
Remove the cup from the motor base by turning it anti-clockwise and then lifting up.
Remove the blade assembly by twisting anti-clockwise. DO NOT store blended contents with the blade assembly attached. Only use the Spout Lid or Storage Lid to cover. Exercise care when handling the blade assembly, as the blades are sharp.
To enjoy on the go, place the Spout Lid or Storage Lid onto the cup and twist lid clockwise until firmly sealed.
Unplug the unit when finished. Refer to the Care & Maintenance section for cleaning and storage instructions.

CARE & MAINTENANCE

CLEANING

Hand-Washing

Wash containers, lids and blade assembly in warm, soapy water. Use a dishwashing utensil with handle to avoid direct contact with the blades. Exercise care when handling the blade assembly as the blades are sharp. Thoroughly rinse and air-dry all parts.
NOTE: The Power Paddle in the Power Nutri Bowl is not removable.

STUCK-ON INGREDIENTS IN THE POWER NUTRI BOWL

For stuck-on ingredients, such as nut butter, rinse the bowl and blade assembly under warm water.
Next, fill the bowl with warm water up to the top of the Power Paddle and add 1–2 small drops of washing-up liquid.
Screw on the blade assembly and press MIX. Twist the Power Paddle anti-clockwise continuously while cleaning.
Then, empty contents and rinse under warm water and wipe with a dishwashing utensil, if needed.

Dishwasher

Containers, lids and blade assembly are ONLY dishwasher safe on the top rack. Ensure the blade assembly and lid are removed from the container before placing in the dishwasher.

Motor Base

Unplug the unit before cleaning. Wipe motor base with a clean, damp cloth.

STORAGE

For cord storage, wrap cord with hookand-loop fastener near the back of the motor base. DO NOT wrap the cord around the bottom of the base for storage.
DO NOT store blended or unblended ingredients in the cup or bowl with the blade assembly attached. Use only the spout lid or storage lid when storing blended or unblended ingredients in the containers.
DO NOT stack items on top of the containers. Store any remaining attachments alongside the unit or in a cabinet where they will not be damaged or create a hazard.

RESETTING THE MOTOR THERMOSTAT

This unit features a unique safety system that prevents damage to the motor and drive system should you inadvertently overload it. If the unit is overloaded, the motor will be temporarily disabled. Should this occur, follow the reset procedure below.

Unplug the unit from the electrical socket.
A llow the unit to cool for approximately 15 minutes.
Remove the blade assembly from the container. Empty the container and ensure no ingredients are jamming the blade assembly.

Ensure that maximum capacities are not exceeded. This is the most typical cause of appliance overload.

If your unit needs servicing, call Customer Service on 0800 862 0453. So we may better assist you, please register your product online at ninjakitchen.co.uk/registerguarantee and have the product on hand when you call.

TROUBLESHOOTING GUIDE

To reduce the risk of shock and unintended operation, unplug unit before troubleshooting.

Control panel does not illuminate

Make sure unit is plugged in. If the unit is powered on and no container is installed, the unit will display '- -'. The available programs will illuminate after placing a container on base and rotating it clockwise until it clicks into place.

Control panel doesn't turn off

Remove container from base by rotating it anti-clockwise and lifting it up. The display with flash '- -'. Unplug the power cord from the socket. If the unit remains plugged in, the display will time out after 3 minutes of inactivity. Press any button to wake the unit.

Doesn't mix well; ingredients get stuck

Using the Auto-iQ programs is the easiest way to achieve great results. The pulses and pauses allow the ingredients to settle toward the blade assembly. If ingredients are routinely getting stuck, adding some liquid will usually help.
When filling the cup, start with fresh fruit or vegetables, then leafy greens or herbs. Next add liquids or yogurt, then seeds, powders or nut butters. Finally, add ice or frozen ingredients.
If using the Power Nutri Bowl, during the blending process twist the Power Paddle anti-clockwise continuously to circulate ingredients.

Unit moves on counter while blending

Make sure the counter and feet of the unit are clean and dry.

Lid or Hybrid Edge Blades Assembly is hard to install on the container.

Set the container on a level surface. Carefully place the lid or blade assembly on the top of the container and align the threads so the lid/blade assembly sits flat. Twist clockwise until you have a tight seal.

Can't remove the Power Paddle from the Power Nutri Bowl.
