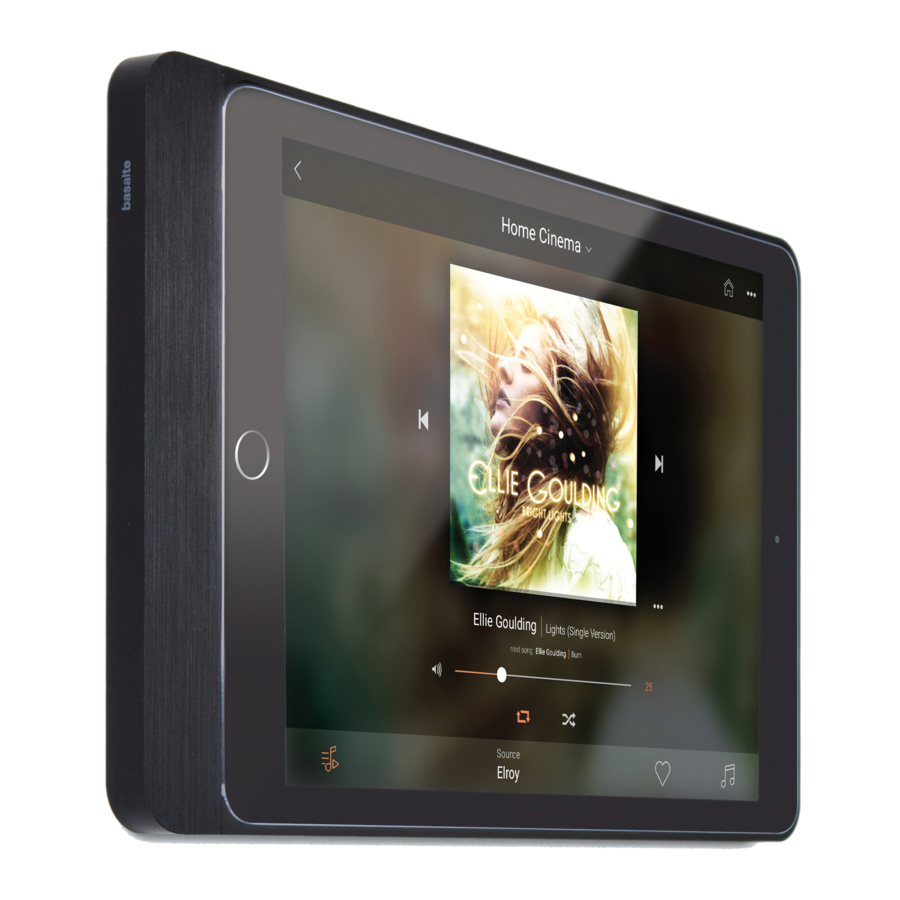

Basalte EVE Plus, EVE Plus 120-CC - Docking Station Manual

Identification of the parts

EVE Plus 120-CC

1. EVE Plus sleeve
2. iPad (not included)
3. Cover
4. Softy grip
5. Plus connector
6. Screws
7. Charging cable

Mounting the iPad

1. Unmount the screws on the back of the sleeve and slide off the cover.

2. Place EVE Plus sleeve on a flat surface with the soft grip facing downwards.
   Secure the charging cable in the guide and push down the lightning connector.
   Make sure the cable does not block the iPad while sliding in.

3. Gently slide in the iPad. Never apply to much force and keep the iPad aligned with the sleeve. Make sure the iPad stays flush with the frame.

4. When the iPad is slide in completely, take the charging cable and plug it in the iPad.

5. Gently reattach the cover and lock using the screws.


Make sure to follow the steps above in the right order as a wrong installation can damage the frame.

Removing the iPad

1. Remove the screws holding the cover and slide off the cover from the frame.

2. Unplug the charging connector and place it in the space between the iPad and sleeve.

3. Place the EVE Plus on a flat surface, with soft grip facing downwards.
   Gently pull out the iPad keeping aligned with the sleeve. Never apply to much force or pull the iPad up or down while sliding.
   Make sure the iPad stays flush with the sleeve until removed.


Docking the Unit

EVE Plus lets you dock your iPad on a wall or table, while keeping it charged. Thanks to the Plus connector the iPad can be docked horizontally (landscape) and vertically (portrait).
EVE Plus is compatible with the EVE Plus wall base (0130-CC) and EVE Plus table base.

Dimensions

265 mm x 174 mm

EVE Plus is compatible with:
iPad (5th generation), iPad (6th generation)

Made in Belgium

Basalte is a registered trademark of Basalte bvba.
Eve is a registered trademark of Basalte bvba.
Eve mini, Eve 9.7", Eve Pro 9.7", Eve Pro 12.9" and Eve touch are registered designs of Basalte bvba.
iPad mini, iPad Air, iPad, iPad Pro and iPod touch are registered trademarks of Apple Inc.

basalte bvba
hundelgemsesteenweg 1a I 9820 merelbeke I belgium
tel +32 9 385 78 38 I info@basalte.be I www.basalte.be
