Basalte EVE PLUS Installation Manual

EVE PLUS WALL BASE POE
Installation Manual

Safety instructions

Before installing the unit, read this manual thoroughly and retain it for future reference.
The device should be installed in compliance with official regulations valid in country of use.
The device may only be installed and connected by qualified electricians.
Ensure that electricity is switched off when installing or unmounting the device.
Do not open, dismantle, alter or modify the device.

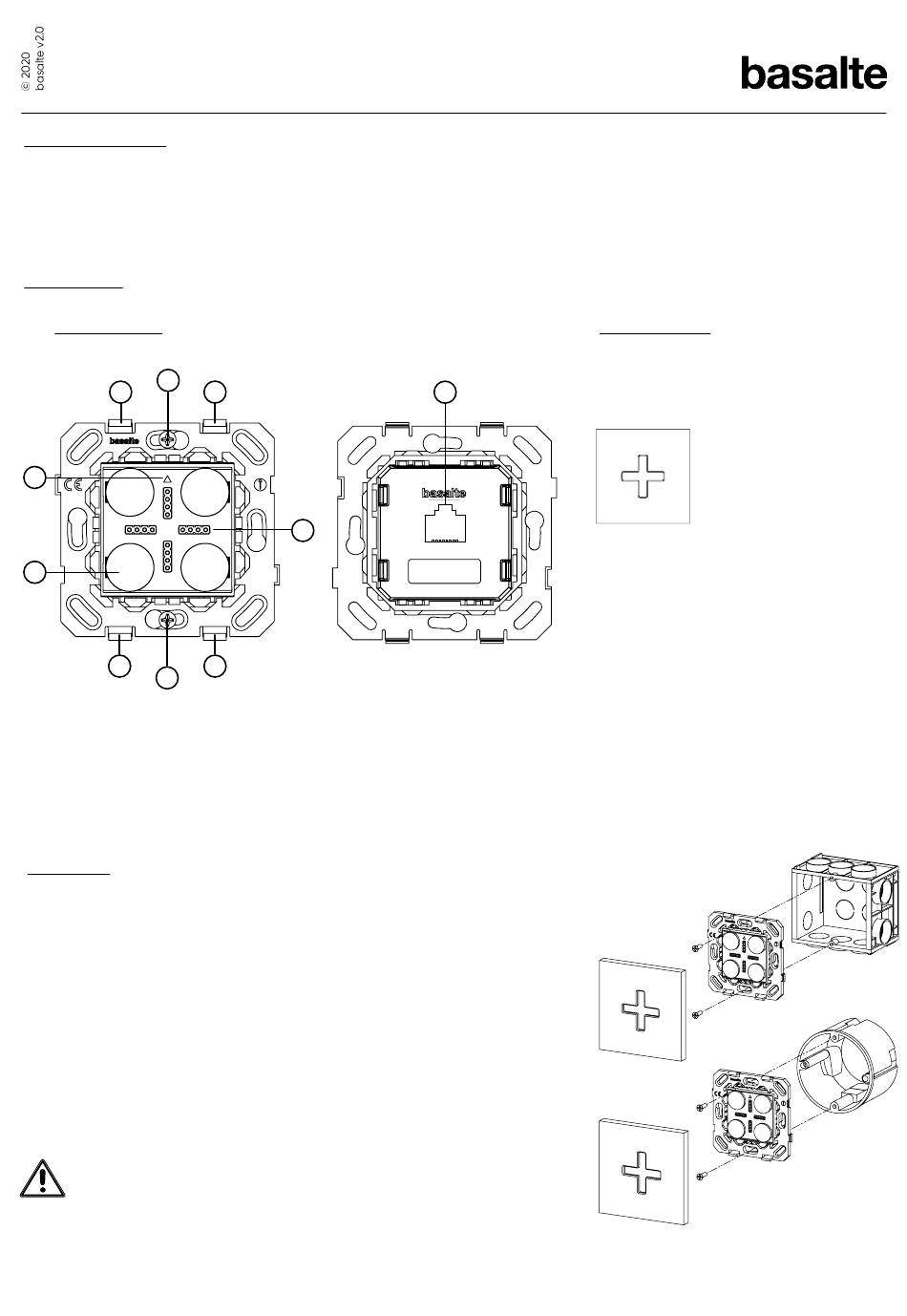

Components

Wall base PoE
0130-03
A
B
D
E
B
A
A Opening to fix the outlet to the wall box
B Clips to mount the cover plate
C Charging connector for Eve Plus sleeve
D This sign up
E Alligning magnets
F 48V PoE IEEE 802.3af connector

Wall boxes

The wall base should be installed in European wall boxes with screws.
The distance between the screws needs to be 60mm, and a minimal
depth of 45 mm is required. Depending on the type RJ45 connector
used, additional depth might be required.
Square wall boxes size 60 x 60 mm are compatible with the sockets.
Round wall boxes should have an inner diameter of 64mm or more.
The following round wall boxes are compatible with the Basalte sockets:
• Helia round with cut hole 68 mm (type 247, 261).
• Kaiser round with cut hole 68 mm (type 9063-xx, 9064-xx, 9062-xx).
• Legrand batibox round (ref 080051, 080061, 080052, 080053).
• ABB round Hafobox MD4050 and hollow wall boxes HW-50,
HW50-G, HW52-F (Except HW52-F IGD and HW52-F BW).
When using other round boxes,
please verify the compatibility upfront.
Do not use following wall boxes:
• Helia O-range
• Kaiser (1055-xx – 1056-xx)
• ABB 3040
• ABB HW52-F IGD and HW52-F BW
B
C
B
Eve Plus Cover
(not included)
F
Model No. 0131-CC
