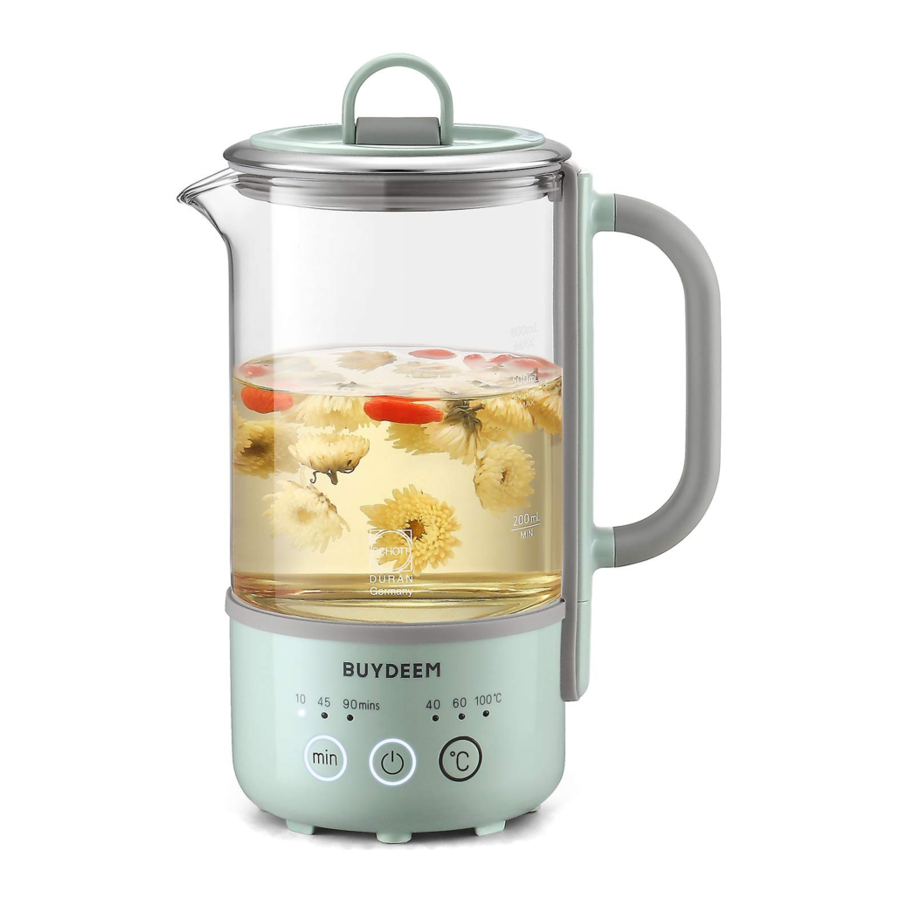

Buydeem K313 - 0.6L Mini Beverage Maker Manual

Technical specifications

Understanding Product

Product Structure Drawing

Key function introduction

Function Name	Time/ Temp	Suitable Ingredients	Operation Mode	Keep Warm (f enabled)
	/	/	Short touch this button to start/ pause the beverage maker Long touch for 2s to enter the standby mode.	/
	40°C	Milk powder, milk	Quickly boil water to 40°C	40°C,8H
	60°C	Honey, lemon, black wolfberry	Quickly boil water to 60°C	60°C, 8H
	100°C	Tea leaf, coffee	Quickly boil water to boiling. Note: Please do not use this to heat soup liquid/except water, otherwise overflow may occur.
	10min	Tea, eggs	The small fire mode work for for 10min after the water is boiled.
	45min	Millet, lotus seeds, whole grains	The small fire mode work for for 45min after the water is boiled.
	90min	Tremella, beans	The small fire mode work for for 90min after the water is boiled.

Note: The above cooking time starts after water is boiled, not include water boiling time.

Guidelines for keep warm mode

• This product defaults to keeping warm for 8 hours after cooking, when the lamp circle is breathing light, it means that it is keeping warm.
• For more personalized products, the automatic keep warm mode is canceled. The specific methods are as follows:

1. Insert the power plug to power on, the standby device enters the standby mode.
2. Touch and hold the "'Cooking" button for 3 seconds until you hear a long beep that means the automatic keep warm is cancelled.
3. If you need to restart keep warming mode, repeat the operation once.

Remarks: After power-on, firstly need to touch the "Cooking" button for 3 seconds, otherwise the automatic keep warm mode cannot be canceled.

Using Product

Initial use

1. Remove all packaging, labels and accessories from the inside and outside of beverage maker. Before using the product for the first time, we recommend that you do a boiling point detection operation

2. The first 2-3 times of boiling water should be poured out for cleaning, and then wipe the outside of beverage maker parts with a damp cloth (please note that the electrical connectors on the bottom and base of the pot should not touch the water).


Fast installation

1. Plug the power cord into the socket of beverage maker.

2. Power on.


Guidelines for users

1. Open the lid
   • Tighten the lid handle and pull upward to remove the lid.

2. Add ingredients

3. Add appropriate amount of pure water
   • Do not add water and ingredients above the maximum water level or below the minimum water level,
   • If the water is too full, water may splash when boiling.
   • Never pour milk or soya milk directly into beverage maker to prevent the bottom from burning. Except "40°C" mode.

4. Close the lid tightly
   • Place the lid on the pot as shown in the figure. Make sure the silicone groove of the lid is aligned with the handle.
   • If the pot lid is not assembled properly, it will fall easily when pouring water.


Panel operation guide

1. Function selection
   • After power on, you can touch the "°C" button to select the boiling water temperature, or touch the "min" button to select the cooking time.
   • At this time, the selected function key light is on, and mid button flashes.

2. Function confirmation and start
   • After selecting the mode, you need to touch the mid button and the machine starts the program.
   • At this time, the selected function key light is on, and mid button light is on.

3. Keep warm mode
   • If the machine has the automatic keep warm mode turned on, it automatically enters after cooking is completed, please refer to the instruction manual.
   • At this time, the corresponding function key light circle breathing light, the mid button light is still on.
     Remarks: When the '"40°C" mode is selected, the corresponding light strip will also light up, representing the corresponding temperature of keep warm. The remaining modes are kept at 60°C for 8 hours, and the light strip does not light up.


Boiling point

Boiling point detection memory program

• Because in non-zero altitude areas, the water cannot reach 100°C when boiling, which will cause the ordinary beverage maker to not work properly (the off is too slow or even normal trip.)
• BUYDEEM recommends that you perform a boiling point detection operation for the first time. After the test is completed, the chip will record the accurate boiling point data and use it again without repeating the test.
• After the boiling point detection, beverage maker can work more accurately (the performance is better than the factory setting).
• If you are in a city with an altitude higher than 250m, be sure to perform boiling point detection before use.

Start boiling point detection

1. Add water to the 600mI water level line. If the amount of water is insufficient or excessive it will affect the test results.

2. Firstly, plug in the power plug to power on.

3. Touch the '"°C" button for 3 seconds, until the mid button flashes; Remarks: After power on, you need to first press the "°C" button for 3 seconds, otherwise you cannot start the boiling point detection.

4. At this time, press the mid button, the light strip flashes from left to right, indicating that the machine has entered the boiling point self-test work. After the detection is completed, a shutdown sound will sound, and the work will automatically end and enter the standby state.


Features

Beverage maker pause memory function

When beverage maker works in accordance with the procedure, you can pause it by the mid button. Within 30 minutes, then continue the previous work by pressing mid button. The beverage maker will perform a pause before the unfinished program time, the function program will not be executed again.

Avoid misuse

Within 30 seconds of beverage maker starting you can press "min" and "C°" to switch the mode. After switching, you need to press the mid button again to enter the cooking state. In order to avoid mis-operation, the function could not be switched after beverage maker starts working for 30 seconds. If you need to switch functions, you need to press the mid button first, then the button flashes and select the program to be switched.

Cold water protection

When beverage maker is working, if you add cold water in the middle of cooking, the health pot will automatically boil the water and then perform the unfinished program, without worrying about the hidden danger of cold.

Cleaning & Maintaining

Cleaning of beverage maker

1. Unplug the power plug.
2. After product cool down, clean the inside with a wet sponge.
   Note: Do not immerse the glass body and its power supply and plug in water (the electronic connector at the bottom of the pot must not touch the water)
3. Please clean in time after each use.

Descaling

The beverage maker needs to be descaled regularly, at least once a month, and the number should be increased if the water quality is poor. If there are spots on the heating plate, this is scale, which is a normal phenomenon. It can be cleaned by scrubbing with a scouring pad. If the situation is more serious, the following methods can be used for descaling.

Tips for descaling of beverage maker

Use white vinegar

• Add 100ml of white vinegar to the product
• Fill with water to the 200ml mark and activate the "°C" button.
• After the procedure, let it stand for 1 hour, then wipe the bottom of the pot with a scouring pad.

Use citric acid

• Add 200ml of water to the product.
• Add 10g of citric acid to activate the "100°C" boiling water mode.
• After automatic power off, let it stand for 5-10 minutes. (If there is a lot of scale, you can extend the standing time)
• Finally, pour out the water in the pot and wipe the bottom of the pot with a scouring pad.

Simple Troubleshooting

Machine failure sound correspondence table

List of Environmental Protection

Environ mental protection list

Name and content of harmful toxic substances or elements in products

Part name	hazardous substance
	Pb	Hg	Cd	Cr (Vi)	PBB	PBDE
Pot cover assembly
Pot body group
Base assembly
Heating plate assembly
Circuit board assembly
Power cord

: indicates that the content of the hazardous substance in all homogeneous materials of the part is under the limit requirements of GB/T 26572.

: indicates that the content of toxic and hazardous substances in at least one homogeneous material of the part exceeds the limit requirements specified in GB/T 26572.specified in GB/T 26572.

Environmental protection use period of 10 years: indicates that the harmful substances contained in this product will not leak or mutation, and the normal use of this product by the user under the circumstances described in the user normally using the product according to the manual will not cause serious pollution to the environment or cause serious damage to his personal and property, The arrow mark indicates that this product can be recycled. It should not be discarded at random after it has expired and cannot work normally after being repaired. After it has expired or could not work after repair, it should not be discarded at will. Please give it to the formal recycling channels and enterprises that are qualified to dispose of discarded electrical and electronic products. For the correct disposal method, please refer to the relevant national and local handling regulations.

The above labels are implemented in accordance with the Chinese Management Measures for Restricted Use of Hazardous Substances and its supporting standard SJ/T 11364. Long-term use of the product will not cause harm to people, please rest assured to use.
