Summary of Contents for Smartech HSR-1500

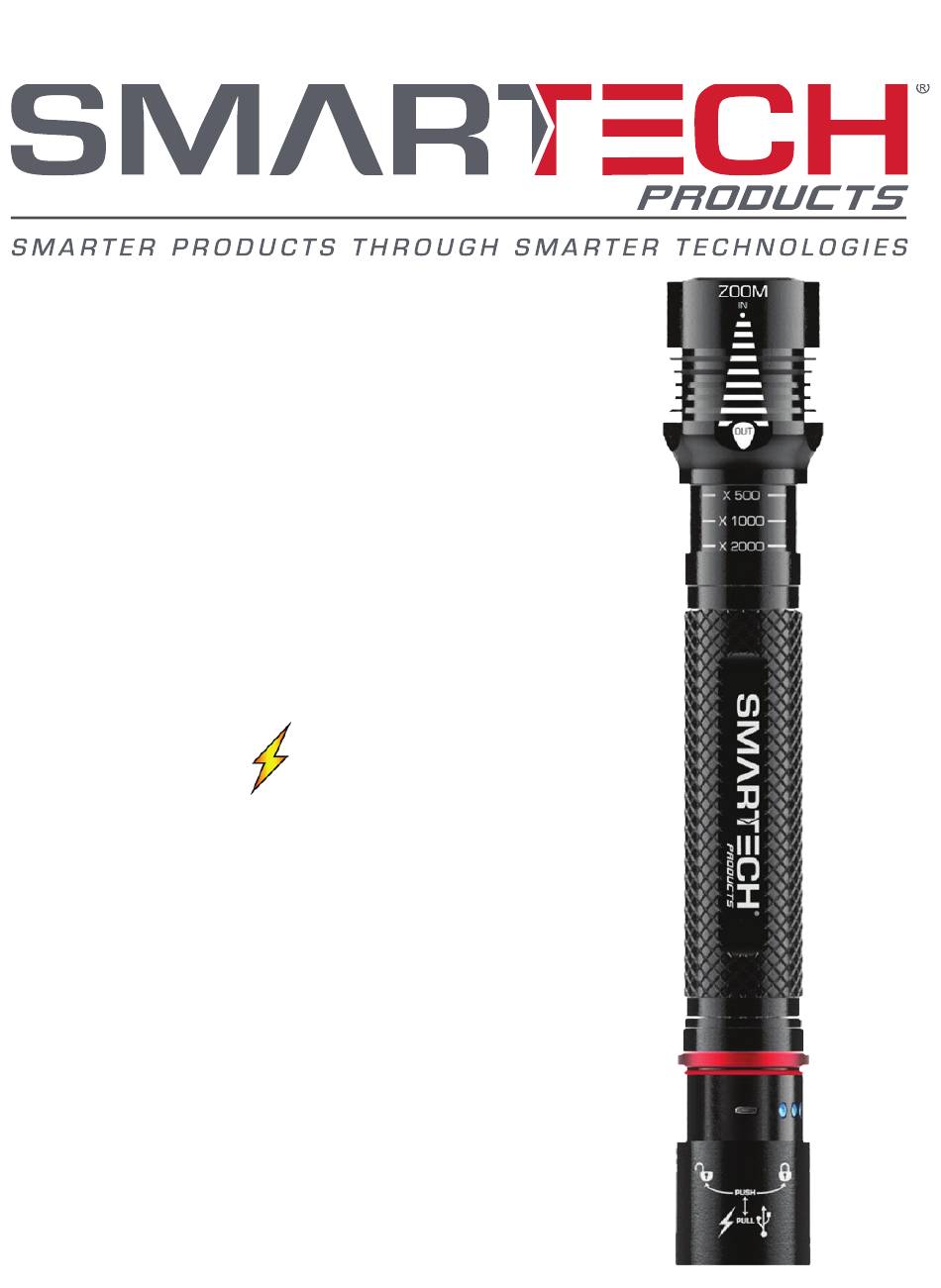

- Page 1 User Guide Model: HSR-1500 Rechargeable LED Flashlight / Portable Power Bank MAX. FLASHLIGHT LUMENS: 1500 5 FLASHLIGHT MODES ADVANCED FOCUS SYSTEM BATTERY CAPACITY: 5200mAh USB OUTPUT: 1A Dual Power Lithium or Alkaline Battery...
-
Page 2: Included Accessories
What’s included with the HSR-1500 HSR-1500: 1500 Lumen Rechargeable Flashlight / Power Bank INCLUDED ACCESSORIES 5200mAh Lithium Ion Rechargeable Battery Pack USB Recharging Cable Smartech HSR-1500 USER GUIDE PAGE 2... - Page 3 About the HSR-1500 Aircraft Grade Aluminum Construction Ultra Bright 1500 Lumen LED Integrated Heat-Sink Advanced Focus System Slip Resistant Grip Power/Mode Button Power Indicator Button LED Charge Level Indicator USB Charging Input USB Output Port Smartech HSR-1500 USER GUIDE PAGE 3...
-
Page 4: Flashlight Features
Advanced focus system with zoom in/out capability • Provides a beam intensity of 1500 lumens and a throw distance of up to 259 meters. • 5 flashlight modes: High power Medium power Low power Strobe Smartech HSR-1500 USER GUIDE PAGE 4... - Page 5 • Toughened ultra-clear glass lens. • Integrated heat sink. • Built-in slip resistant grip • Aircraft grade aluminum construction. • Water resistant to 1 meter HSR-1500 Product Specifications: Dual Power RECHARGEABLE ALKALINE High Medium High Medium 1500 1000 lumens...
-
Page 6: Flashlight Operation
HIGH light mode regardless of what mode it was in when you turned it off. To turn off the flashlight without cycling through the modes, hold down the red power button. Figure A. Smartech HSR-1500 USER GUIDE PAGE 6... - Page 7 Figure B. To widen the beam, push the front of the flashlight inwards and the beam will increase in size and decrease in intensity. Figure C. Smartech HSR-1500 USER GUIDE PAGE 7...
- Page 8 3. The USB port is near the smaller charging port. Figure D. 4. Plug the USB end of the multi device USB Output Cable (included) into the HSR-1500 USB port, (for Apple® products use the original Apple® cable). Smartech HSR-1500...
- Page 9 USB Port Multi Device USB Output Cable (Included) Mobile Phone (Not Included) Checking The HSR-1500 Battery Power Level: To check the battery level of Figure F. the internal lithium battery, open the bottom of the Battery Power flashlight as per the previous...
-
Page 10: Charging The Lithium Ion Battery
Press the “Power Indicator” button to show the charging status on the blue LED’s. Figure G. Figure G. HSR-1500 Flashlight Recharging Cable (Included) Wall Charger (Not Included) Battery Power Check Button Micro USB Charging Port Battery Power Level Indicators Smartech HSR-1500 USER GUIDE PAGE 10... - Page 11 Using C Batteries To Power The HSR-1500: The HSR-1500 flashlight has a Dual Power option. It can run either on the included rechargeable Lithium-Ion battery or it can run on (3) alkaline C batteries (not included). 1. To power your flashlight using alkaline C batteries, unscrew the back portion of the flashlight and remove the Smartech Lithium-Ion battery.
- Page 12 See Figure J. Your flashlight is ready to use! Figure J. Warning: Do Not attempt to charge your HSR-1500 when using non- rechargeable C batteries. The C batteries are not meant to be recharged and may burst if the charger is connected, causing damage to your flashlight.
-
Page 13: Warranty Exclusions
Do not return the unit to the place of purchase. Contact Smartech Inc. Customer Service and Smartech Inc. will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, Smartech Inc. - Page 14 Problems caused by parts that are not original parts. Limits of Implied Warranty and Consequential Damage Smartech Inc. disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyonefrom using this product.
- Page 15 SMARTECH INC. LIMITED WARRANTY (continued) A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from state to state.
