Smartech HSR-1000 User Manual

Rechargeable led flashlight / portable power bank
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

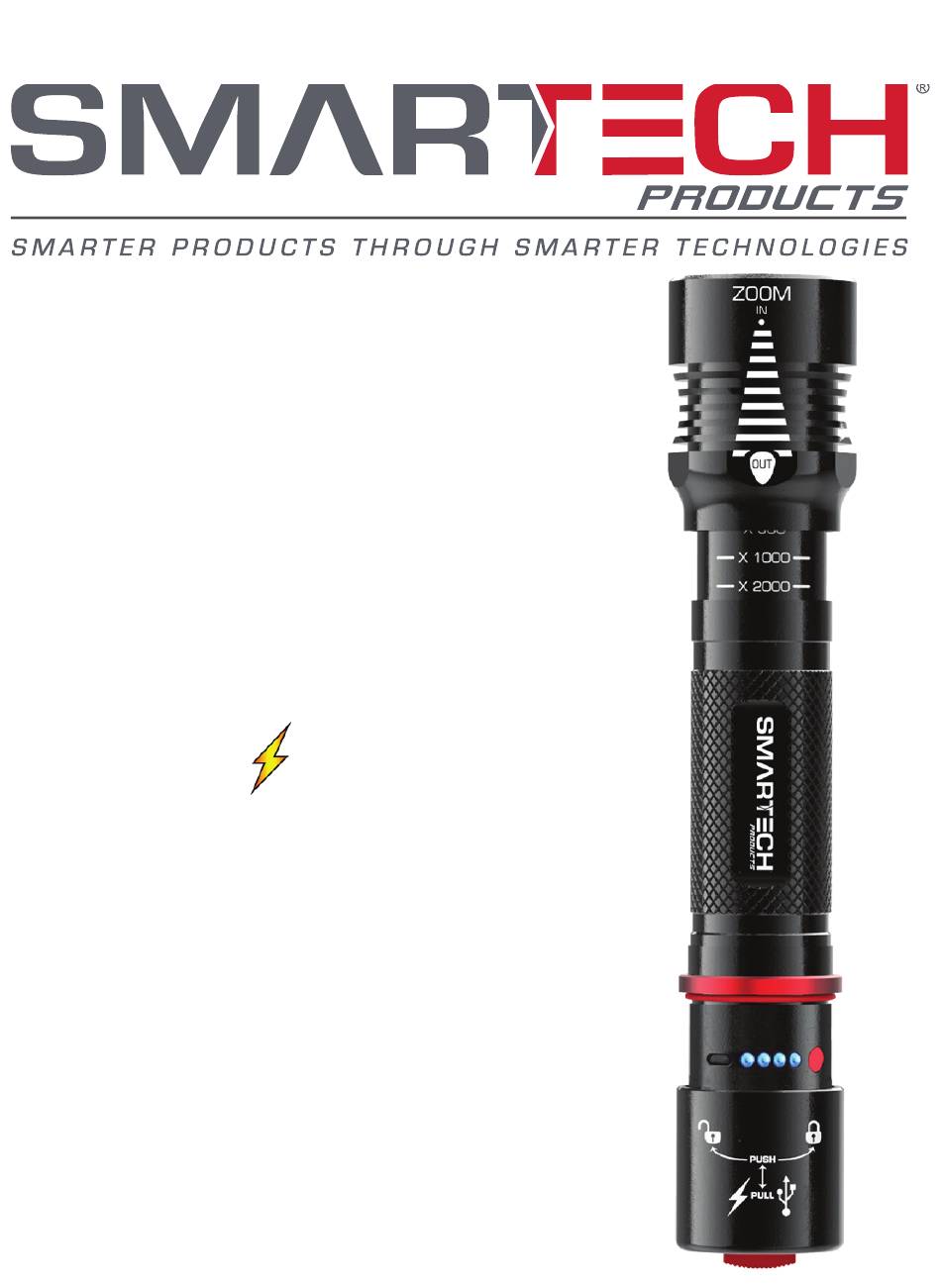

User Guide
Model: HSR-1000
Rechargeable LED Flashlight /
Portable Power Bank
MAX. FLASHLIGHT LUMENS: 1000
5 FLASHLIGHT MODES
ADVANCED FOCUS SYSTEM
BATTERY CAPACITY: 2600mAh
USB OUTPUT: 1A
Dual Power
Lithium or Alkaline Battery

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSR-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Smartech HSR-1000

Summary of Contents for Smartech HSR-1000

  • Page 1 User Guide Model: HSR-1000 Rechargeable LED Flashlight / Portable Power Bank MAX. FLASHLIGHT LUMENS: 1000 5 FLASHLIGHT MODES ADVANCED FOCUS SYSTEM BATTERY CAPACITY: 2600mAh USB OUTPUT: 1A Dual Power Lithium or Alkaline Battery...

  • Page 2: Included Accessories

    What’s included with the HSR-1000 HSR-1000: 1000 Lumen Rechargeable Flashlight / Power Bank INCLUDED ACCESSORIES 2600mAh Lithium Ion Alkaline AAA Rechargeable Battery Pack Battery Cartridge + (4) AAA batteries USB Recharging Cable Smartech HSR-1000 USER GUIDE PAGE 2...
  • Page 3 About the HSR-1000 Aircraft Grade Aluminum Construction Ultra Bright 1000 Lumen LED Integrated Heat-Sink Advanced Focus System Slip Resistant Grip Power/Mode Button Power Indicator Button LED Charge Level Indicator USB Charging Input USB Output Port Smartech HSR-1000 USER GUIDE PAGE 3...

  • Page 4: Flashlight Features

    Advanced focus system with zoom in/out capability • Provides a beam intensity of 1000 lumens and a throw distance of up to 219 meters. • 5 flashlight modes: High power Medium power Low power Strobe Smartech HSR-1000 USER GUIDE PAGE 4...
  • Page 5 • Toughened ultra-clear glass lens. • Integrated heat sink. • Built-in slip resistant grip • Aircraft grade aluminum construction. • Water resistant to 1 meter HSR-1000 Product Specifications: Dual Power RECHARGEABLE ALKALINE High Medium High Medium 1000 lumens lumens...

  • Page 6: Flashlight Operation

    5 light modes (High, Medium, Low, Flash, Strobe) followed by the off mode. To turn off the flashlight without cycling through the modes, hold down the red power button for two seconds. Figure A. Smartech HSR-1000 USER GUIDE PAGE 6...
  • Page 7 Figure B. To widen the beam, push the front of the flashlight inwards and the beam will increase in size and decrease in intensity. Figure C. Smartech HSR-1000 USER GUIDE PAGE 7...
  • Page 8 Power/Charge USB Devices: The HSR-1000 Flashlight includes a USB charge/power port to charge/power USB devices. See Figure D. 1. Turn the bottom of the flashlight towards the left in order to unlock it. 2. Pull the bottom of the flashlight down to expose the charging and USB ports.
  • Page 9 1. Plug the USB end of the multi device USB Output Cable (included) into the HSR-1000 USB port. 2. Plug the compatible end of the multi device USB Output cable to your USB device. See Figure E. Figure E. HSR-1000...

  • Page 10: Charging The Lithium Ion Battery

    Press the “Power Indicator” button to show the charging status on the blue LED’s. Figure G. HSR-1000 Flashlight Figure G. Recharging Cable (Included) Wall Charger (Not Included) Battery Power Check Button Micro USB Charging Port Battery Power Level Indicators Smartech HSR-1000 USER GUIDE PAGE 10...
  • Page 11 Using Battery Cartridge To Power The HSR-1000: The HSR-1000 flashlight has a Dual Power option. It can run either on the included rechargeable Lithium-Ion battery or it can run on AAA batteries using the included Alkaline Battery Cartridge and (4) AAA batteries.
  • Page 12 1. Load the Battery Cartridge into the HSR-1000. Make sure that the nipple end is inserted first. See Figure K. 2. Screw in the back portion of the flashlight. See Figure L. Your flashlight is ready to use! Figure K.

  • Page 13: Warranty Exclusions

    Do not return the unit to the place of purchase. Contact Smartech Inc. Customer Service and Smartech Inc. will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, Smartech Inc.
  • Page 14 Problems caused by parts that are not original parts. Limits of Implied Warranty and Consequential Damage Smartech Inc. disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyonefrom using this product.
  • Page 15 SMARTECH INC. LIMITED WARRANTY (continued) A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit. This warranty gives you certain legal rights which may change from state to state.
