- Page 1 SH-2 Series User’s Manual...
-
Page 2: Table Of Contents
Using the Trinocular Port ................. 10 Attaching a Camera ................... 10 Adjusting Focusing Tension ................11 Maintenance/Precautions ..................11 Specifications ................12 SH-2 Series Specifications ..................12 Optional Accessories ..................... 13 Technical Terms & Concepts ................14 Troubleshooting ................ Common Issues (Optical) .................. 15... -
Page 3: Before Use
Congratulations on the purchase of your new AmScope microscope! This manual is designed for the SH-2 series microscopes (SH-2B, SH-2T, and all their variants). The two base models of this series differ in that the -B models are binocular (two eyepiece ocular tubes), while the -T models are trinocular (two eyepiece ocular tubes with a third port on top for a microscope camera). -
Page 4: Safety Precautions
SH-2 Series Before Use Safety Precautions 1. As the microscope is a precision instrument, always handle it with care, avoiding impact or abrupt movement during transportation. Do not shake the package. 2. Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in maximum relative humidity of 85%. -
Page 5: Parts

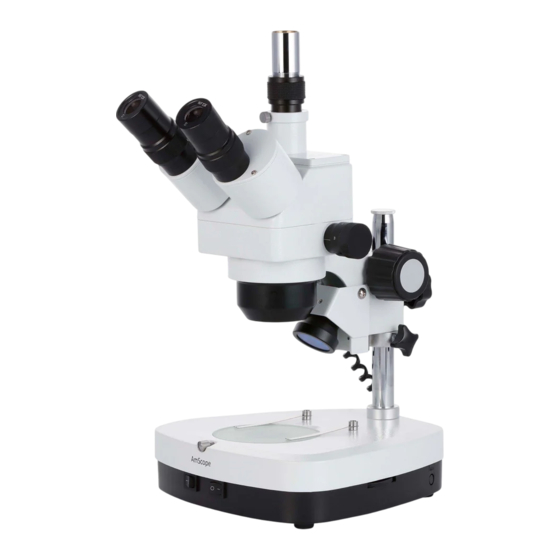

SH-2 Series Parts SH-2B/T Trinocular Port (SH-2T Only) Eyepieces Magnification Knob Ocular Tubes Interpupillary Adjusters Objective Focusing Rack Focusing Knob Pillar Stand Top Light Source Stage Clips Base Illuminator... -
Page 6: Definition Of Parts
SH-2 Series Parts Definition of Parts Adjustable Trinocular Port Threaded port with adjustable length of attachment of digital or video camera Boom Stand Stand for the microscope that allows the head to be moved in physical space in various directions... - Page 7 SH-2 Series Parts Magnification Knob Changes the magnification of the lenses on a continuous zoom microscope Microscope Head Contains the objective lens, eyepiece ocular tubes, and prisms used to magnify Ocular Tube Tube designed to hold the eyepieces or camera in place...
-
Page 8: Getting Started
Check carefully to ensure that all parts and accessories are intact. 2. Check the packing list to ensure that you’re received all items. Please note that this can vary depending on which model you’ve purchased, and is generally listed on www.amscope.com at the items’ details page for your specific model. -
Page 9: Operation
SH-2 Series Operation Setting Up 1. Once you have placed your sample on the table or base below the objective, center the sample as best as possible. A slide is neither needed nor required for a stereo microscope, although they can be used if desired. If using a slide, use the stage clips to hold it in place. -
Page 10: Using The Trinocular Port
Operation Using the Trinocular Port The AmScope SH-2T model is uniquely designed so that you can view the image through the eyepieces and the trinocular port without removing the camera or using your eyepiece. This feature allows the images through the microscope’s eyepieces, and those displayed on your computer screen or television be viewed at the same time (although unless using 20x eyepieces to match your camera, the image may differ in magnification). -
Page 11: Adjusting Focusing Tension
Doing so will void your warranty unless by advisement of one of our technicians to do so. - After use, cover the microscope with the provided dust cover. - Keep your AmScope microscope in a dry, clean location in order to prevent rust or other damages. -
Page 12: Specifications
SH-2 Series Specifications SH-2 Series Specifications Parts Specifications SH-2TY SH-2TZ SH-2TZZ Widefield Eyepiece WF10X/18mm WF10X/18mm w/ Pointer WF10X/18mm w/ Reticle WF16X/13mm WF20X/10mm WF25X/10mm 0.5x (SH05) Barlow Lenses 2.0x (SH20) 45 Degree Viewing Head Binocular, Interpupillary Adjustment x (if B-) x (if B-) -
Page 13: Optional Accessories
SH-2 Series Specifications Optional Accessories Parts Description Model # Purpose Eyepieces EP20X30 For obtaining higher magnification powers EP25X30 For obtaining higher magnification powers 10x w/ Pointer EP10X30P For easier identifying of objects 10x w/ Reticle EP10X30R For measuring objects 0.5X... -
Page 14: Technical Terms & Concepts
SH-2 Series Technical Parameters Technical Terms & Concepts Total Magnification Total magnification of a microscope is calculated by the magnification of the objective multiplied by the mag- nification of the eyepieces. -Ex: (10x Eyepieces) x (4x Objective) = 40x Total Magnification... -
Page 15: Troubleshooting
SH-2 Series Troubleshooting Common Issues (Optical) Symptom Cause Remedy OPTICAL ISSUES Stains, dust, or dirt has accumulated on the speci- Clean the slide or use a new specimen if sample is Obstructions are observed in the field destroyed of view... -
Page 16: Common Issues (Mechanical)
SH-2 Series Troubleshooting Common Issues (Mechanical) Symptom Cause Remedy MECHANICAL ISSUES Focus knob does not turn The tension knob is too tight Loosen it by adjusting the tension by grabbing both knobs on the focusing rack and twisting them in opposite directions.
