Summary of Contents for Grundig M 2300 DAB+

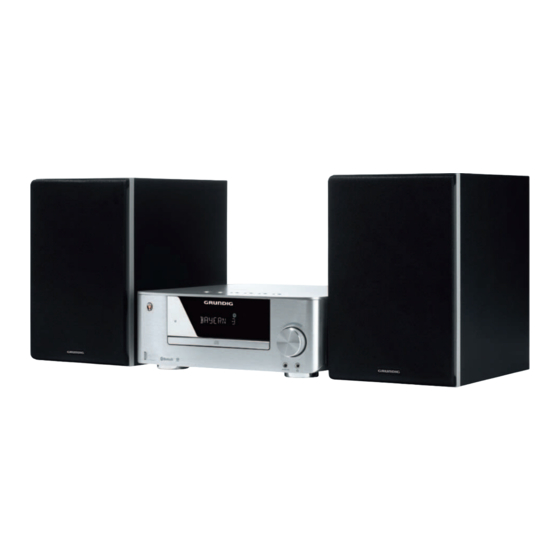

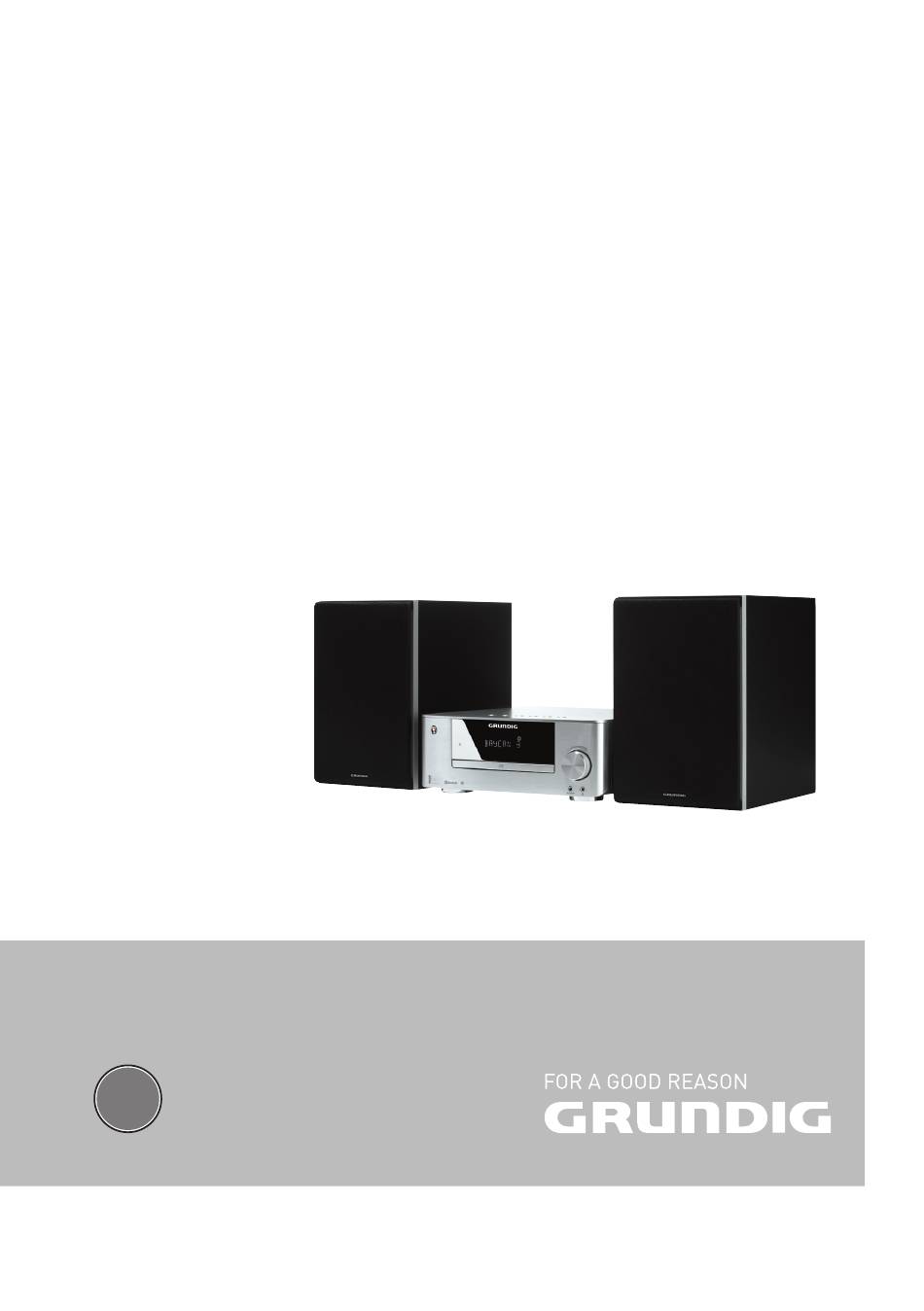

- Page 1 MINI HIFI SYSTEM M 2300 DAB+...
-
Page 2: Table Of Contents
CONTENTS ---------------------------------------------------------------------------------------------------------------------------------- 3 SETUPANDSAFETY 19 EXTERNALDATAMEDIAMODE Caution: high-frequency radiation Using CDs O peration with an MP3 player or USB 4 OVERVIEW memory stick The hi-fi system controls Inserting/connecting music data media The remote control Playback The hi-fi system displays D isplaying track information (for MP3/ WMA) 10 CONNECTIONANDPREPARATION Repeat functions Connecting the loudspeakers P laying back tracks in random order Connecting the antenna (Random) C onnecting an MP3 player or a USB Playing the start of each track (intro) memory stick Creating a playlist Connecting external devices 23 BLUETOOTHMODE Connecting the headphones Connecting an external recording device Compatible with the following devices Connecting the power cord Selecting the Bluetooth input source Inserting batteries into the remote control... -
Page 3: Caution: High-Frequency Radiation
SETUPANDSAFETY ----------------------------------------------------------------------------- Please note the following instructions: Thunderstorms are a danger to all electrical devices. Even if the hi-fi is switched off, it can The hi-fi system is designed for the playback be damaged by a lightning strike to the mains. of audio signals. All other uses are expressly Always remove the power plug during a thun- prohibited. der storm. If you want to set up the hi-fi system on wall Prolonged listening with the shelves or in cupboards, please ensure that it headphones at loud volumes can is adequately ventilated. There must be at least damage your hearing. 10 cm of space at the side, above and behind the hi-fi system. Note: Do not cover the hi-fi system with newspapers, D o not connect any other equipment while table cloths, curtains, etc. the device is switched on. Also switch off the other equipment before connecting it. When setting up the hi-fi system, remember that furniture is often coated with various types O nly plug the device into the mains socket of varnish and plastic, which often contain after you have connected the external de- chemical additives. These additives may cause... -
Page 4: Overview
OVERVIEW ------------------------------------------------------------------------------------------------------- Thehi-fisystemcontrols SOURCE NFC AUDIOIN ● 4 ENGLISH... - Page 5 OVERVIEW ------------------------------------------------------------------------------------------------------- Thefrontofthedevice Thetopofthedevice NFC P osition for NFC registration SOURCE S witches the device on from (Near Field Communication) of standby mode. mobile phones and tablet PCs. S elects the input sources FM Tuner, DAB Tuner, Bluetooth, P ress briefly to switch the device Aux, Audio In, Disc and USB. in and out of standby mode. I n tuner mode: press and hold P ress and hold down to activate down to start the reverse or for- ECO mode. wards frequency search; U SB port type A for connecting p ress briefly to change the fre- a USB memory stick or an MP3 quency backwards or forwards in steps. player. I n external data media mode: ●...
- Page 6 OVERVIEW ------------------------------------------------------------------------------------------------------- Thebackofthedevice AC ~ LINEOUT AUXIN DAB/FMAERIAL SPEAKEROUT +R–+L– AC ~ Socket for mains cable. Note: T he only way to completely disconnect the hi-fi system from the mains supply is to pull out the plug. SPEAKEROUT Terminals for connecting the +R–+L– loudspeaker cables. R = right channel, L = left channel. LINEOUT A udio signal output for con- necting an external recording device. AUXIN A udio signal input (3.5 mm) for connecting an external device, e.g. an MP3 player. DAB/FM A ntenna socket for the roof ana - tenna or the auxiliary antenna AERIAL supplied.
-
Page 7: The Remote Control
OVERVIEW - --------------------------------------------------------------------------------------------------------------------------------- Theremotecontrol S witches the hi-fi system to standby mode and from standby mode to the last input source selected. O pens and closes the CD compart- ment. FM/DAB S elects the FM tuner and DAB tuner input sources. Selects the Bluetooth input source. CD Selects the CD input source. Selects the USB input source. AUDIOIN S elects the Audio In and Aux AUX i nput sources for use with an external data medium. / OK I n tuner mode: switches between FM stereo and mono reception. - Page 8 OVERVIEW - --------------------------------------------------------------------------------------------------------------------------------- LOUDNESS T he loudness function provides better I n DAB tuner mode: for selecting DAB sound at lower audio volumes. radio stations from the presets. I n external data media mode: select –TREBLE+ F or tuning to radio stations. tracks forwards or backwards. 1...0 I n FM and DAB tuner mode: select I n standby and timer mode: for setting preset channels. the hours/minutes. 10+ I n FM and DAB tuner mode: selects I n DAB tuner mode: for selecting DAB the tens for presets. radio stations from the station list; f or setting the frequency/channel of a PROG I n FM and DAB tuner mode: pressing briefly activates the memory function;...
-
Page 9: The Hi-Fi System Displays
OVERVIEW - --------------------------------------------------------------------------------------------------------------------------------- Thehi-fisystemdisplays Ä 888888 ALB TRK PRG SHUF REP ALL ALB I n external data media mode: T he loudness function is ) displays albums. activated TRK I n external data media mode: D ata medium mode (disc) displays tracks. selected. PRG I n tuner mode: a station is A UX mode selected. being stored. D ata media mode (USB) I n external data media mode: selected. -
Page 10: Connecting The Loudspeakers
CONNECTIONANDPREPARATION --------------------------------------- Connectingtheloudspeakers Note: If no roof antenna is available, use the auxiliary antenna supplied. When suitably positioned and with adequate signal, this antenna provides adequate reception of FM and DAB channels. Do not shorten the auxiliary antenna. Connecting an MP3 player or a USBmemorystick Caution: The hi-fi system must be switched off while 1 Insert the wires of the loudspeaker cable into the USB connection is being made. If it is not the side of the threaded fasteners on the loud-... -
Page 11: Connecting External Devices
CONNECTIONANDPREPARATION --------------------------------------- Connectingexternaldevices Connectinganexternalrecord- ingdevice Note: Switch the hi-fi system off before you connect external devices. 1 Use standard audio cables to connect the sound inputs of the external recording device to the »LINEOUT« sockets on the hi-fi system. 1 Use standard audio cables to connect the audio outputs of the external device to the »AUXIN« sockets on the hi-fi system. Note: If possible, connect MP3 players to the »AUDIOIN« socket. -
Page 12: Connecting The Power Cord
CONNECTIONANDPREPARATION --------------------------------------- Connectingthepowercord Insertingbatteriesintothe remotecontrol Notes: Check that the mains voltage on the type plate (on the bottom of the hi-fi system) cor- responds to your local mains supply. If this is not the case, contact your specialist dealer. All the other devices/loudspeakers must be connected before you connect the power cord. 1 Open the battery compartment by pressing down on the catch and then remove the lid. 2 Observe the polarity marked on the base of the battery compartment when inserting the batteries (micro batteries, 2 x 1.5 V, R 03/ UM 4/AAA). -
Page 13: Tuning And Storing Dab Radio Stations
SETTINGS - -------------------------------------------------------------------------------------------------------------------------------------- TuningandstoringDABradio AddDABradiostationsaftera stations changeoflocation You can restart the automatic station search. This Note: is useful if you want to operate the device at a Make the settings with the buttons on the re- new location or if you want to search for new mote control. DAB radio stations. Initialsetup 1 Switch on the hi-fi system by pressing »FM/ DAB«. When the device is connected to the mains for – D isplay: the name of the radio station, such the first time or after a reset, the device starts an as » B5 AKTUELL «. automatic station search for DAB radio stations and then stores them in the station list. 2 Open the menu by pressing »MENU «. 1 Switch on the hi-fi system by pressing »FM/ 3 Select the »... -
Page 14: Tuning And Storing Fm Radio Stations
SETTINGS - -------------------------------------------------------------------------------------------------------------------------------------- TuningandstoringFMradio 7 Set the radio station by pressing and holding down » « or » «. stations – T he radio station search starts and stops at You can store up to 40 FM radio stations on pre- the next station with a good reception signal; set channels. Switch on the hi-fi system by pressing » «, »SOURCE«on the device or»FM/DAB« on keep pressing » « or » « until you reach the remote control. the frequency you want. – E ach time you press the button, the frequen- 2Select the FM TUNER input source by pressing cy changes by 50 Hz. »SOURCE« on the device or »FM/DAB« on 8 Save the FM radio station on a preset, to do the remote control. -
Page 15: Setting The Time Manually
SETTINGS - -------------------------------------------------------------------------------------------------------------------------------------- Settingthetimemanually The time can also be set manually. 1 Switch off the hi-fi by pressing » «. 2 To set the time in standby mode, press and ¥ hold » « for about 2 seconds. – D isplay: »CLOCK SET« and then »CLOCK 24 HR«. 2 Select the hour format (12 or 24 hours) by pressing »VOLUME« on the device or by pressing »... -
Page 16: Switching On And Off
GENERALFUNCTIONS --------------------------------------------------------------------------------------- Switchingonandoff Adjustingthevolume The only way to disconnect the hi-fi system from 1 Press » VOLUME« on the hi-fi or »– VOL+« the mains supply is to pull out the plug. on the remote control to change the volume. 1 Switch on the hi-fi by pressing » « or Selectingsoundsettings »SOURCE« on the device. You can choose between preset sound settings. – T he last input source used is automatically selected. 1 Select the sound setting using »DSC« on the remote control. Note: Changingthebassortreble The hi-fi system can also be switched on by pressing »FM/DAB«, »... -
Page 17: Dab Tuner Mode
TUNERMODE - ----------------------------------------------------------------------------------------------------------------------- DABtunermode SettingDynamicRangeControl (DRC)forDABstations SelectingtheDABtunerinput When you activate Dynamic Range Control, you source can hear quiet sounds better in a loud environ- 1 Select the FM TUNER input source by pressing ment. »SOURCE« on the device or »FM/DAB« on 1 Open the menu by pressing »MENU «. the remote control. – D isplay: »DAB«, followed by the name of a 2 Select the » DRC « menu item with » « or DAB station. »... -
Page 18: Fm Tuner Mode
TUNERMODE - ----------------------------------------------------------------------------------------------------------------------- FMtunermode SelectingtheFMtunerinputsource 1 Select the FM TUNER input source by pressing »SOURCE« on the device or »FM/DAB« on the remote control. – T he most recently selected station is played (Last Station Memory). Selectingpresets 1 Select a preset by pressing » « or » « on the device or » « or » « on the remote control. Stereo/monoreception When the hi-fi system receives stereo channels, » « appears in the display. If the signal from the stereo channel is weak, you can improve the sound quality by switching to mono reception. 1 Press » « on the remote control to switch to mono reception. 2 To switch back to FM stereo, press » « on the remote control. DisplayingRDSstationinformation If the device receives an RDS station, the station name appears in the display together with »RDS«. If no information is available, the reception frequency appears in the display. Additional information can be displayed. 1 To display information on the current RDS sta- tion, press »RDS« repeatedly. -
Page 19: Using Cds
EXTERNALDATAMEDIAMODE - ------------------------------------------------------ UsingCDs OperationwithanMP3player orUSBmemorystick The device is suitable for music CDs displaying the The » « socket is not compatible with logo shown here (CD- USB hubs and cannot be connected directly DA) and for CD-Rs and to a PC. CD-RWs with audio data. The USB interface of this device is a stand- ard interface. All currently-known MP3 chip concepts were taken into account when it was developed. Due to rapid progress in MP3 technology and new manufacturers The device cannot play CD-ROM, CD-I, CDV, appearing every day, the compatibility of... -
Page 20: Playback
EXTERNALDATAMEDIAMODE - ------------------------------------------------------ ConnectinganMP3playeroraUSB Pausingandresumingplayback memorystick 1 Press » II« on the hi-fi system or » IIOK« on 1 Switch the device to standby mode by pressing the remote control to pause playback. – Display: the playing time flashes. » «. 2 Press » II« on the hi-fi system or » IIOK« on 2 Connect the USB interface of the MP3 player the remote control to resume playback. to the » « socket of the hi-fi system with a standard USB cable; Pausingandresumingplayback or 1 To pause playback, press »MENU « once. insert the USB plug of the USB memory stick – I f you select the data medium again, play- into the USB interface » « of the hi-fi sys- back continues from the point at which it tem. -
Page 21: Repeat Functions
EXTERNALDATAMEDIAMODE - ------------------------------------------------------ Repeatfunctions Playingbacktracksinrandom order(Random) Repeatingatrack(RepeatOne) 1 Press » « during playback. 1 Press » « once during playback. – D isplay: »SHUF«. – D isplay: »REP«, the current track is repeated. – A ll tracks on the data medium are played 2 To stop the function, press » « so repeat- back once in random order. edly until the display »REP« disappears. 2 Press » « to switch off the random function. Repeatingallthetracksofafolder – T he display »SHUF« disappears. (RepeatFolder)(MP3/WMAonly) Playingthestartofeachtrack 1 Press »... -
Page 22: Creating A Playlist
EXTERNALDATAMEDIAMODE - ------------------------------------------------------ Creatingaplaylist You can create a track memory of up to 32 tracks for the current data medium in any order you choose and then play them back in that sequence. A track may be saved more than once. The entries can only be made in stop mode. Selectingandstoringtracks 1 Press »MENU « to end playback. 2 Press »PROG« to open the function. – D isplay: »1 P−−01«, »PRG« lights up. 3 Select the folder by pressing » + – «, then select the track with » « or »... -
Page 23: Compatible With The Following Devices
BLUETOOTHMODE --------------------------------------------------------------------------------------------------- T he M 2300 automatically connects to the last Bluetooth auxiliary device that was logged on. I f the Bluetooth auxiliary device is not recog- Compatiblewiththefollowing nised, it has to be activated again via its own devices menu. Your M 2300 can be connected to any com- PlaybackfromtheBluetooth mercially available Bluetooth-compatible de- auxiliarydevice vices that comply with the A2DP standard. This 1 Start playback on the Bluetooth auxiliary de- includes smartphones, laptops and tablet PCs, vice. - Page 24 NFCMODE ---------------------------------------------------------------------------------------------------------------------------------- Loggingonandconnectingamobile Note: T he log on must be confirmed on the mobile telephone(NFCstandard) phone/ tablet PC when doing so for the first As an alternative to the Bluetooth log on you can time. simply log on a mobile telephone or a tablet PC 3 To log out hold the mobile phone / the tablet which conforms to the standard NFC (near field PC again over the » « marking on the front communication) on to your M 2300. Mobile of your M 2300. phones and tablet PCs with appropriate hard- ware and software are suitable. 1 Select the Bluetooth input source by pressing is a registered trade mark of the NFC Fo- rum, Inc., and is registered in the USA and other »SOURCE« on the device or »...
-
Page 25: Timer
TIMERMODE -------------------------------------------------------------------------------------------------------------------------- Your hi-fi system has two timer modes: Activatinganddeactivatingthe – T he timer, which switches the hi-fi system on alarm at a preset time and wakes you with the input ≈ 1 Deactivate the alarm by pressing » « once source you selected. briefly. – T he sleep timer, which switches the hi-fi sys- ≈ – D isplay: » « disappears when the timer is tem off at a preset time. deactivated. Notes: Sleeptimer You can only set the timer mode with the but- Settingthesleeptimer tons on the remote control. -
Page 26: Delete Settings (Reset)
SPECIALFUNCTIONS -------------------------------------------------------------------------------------------- Deletesettings(Reset) The device can be reset using this function. As a result, the preset radio stations and the sta- tion listing will be deleted. 1 Open the menu by pressing »MENU «. 2 Select the » SYSTEM « menu item with » « IIOK« to confirm. or » « and press » 3 Confirm the » RESET « menu item with » II OK«. – A security prompt appears. 4 Select the » Y « (yes) option with » «. Note: To cancel the reset function, select » « (no) »... -
Page 27: Cleaning The Hi-Fi System
This device is noise-suppressed Max. 256 folders and 999 tracks per CD according to the applicable EU Filesystem/foldermanagement: directives. ISO 9660 Level 1 compatible This product fulfils the European USB directives 1999/5/EC, 2009/125/ EC and USB 2.0 for FAT 32/16 format 2011/65/EU. Dimensionsandweight To obtain a copy of the Declaration of Conform- ity (Doc), please submit your request by using the Device dimensions (with threaded fasteners): contact information at www.grundig.com/down- W x H x L 260 x 100 x 300 mm load/doc. Device weight: 2 kg The type plate is located on the bottom of the Loudspeaker dimensions: hi-fi system. W x H x L 155 x 240 x 235 mm Loudspeaker weight: 2.37 kg Technical and design modifications are reserved. 27 ENGLISH... -
Page 28: Environmental Note
INFORMATION - ----------------------------------------------------------------------------------------------------------------- Environmentalnote Generalinformationonlaser devices This product has been made from high-quality parts and This device is a CLASS materials which can be re-used CLASS 1 1 LASER PRODUCT. and recycled. This means that the laser LASER PRODUCT is designed in such a Therefore, do not dispose of the product along way as to ensure that the maximum permissible with normal household waste at the end of its emission value cannot be exceeded under any service life. Take it to a collection point for the circumstances. -
Page 29: Troubleshooting
INFORMATION - ----------------------------------------------------------------------------------------------------------------- Troubleshooting Not every kind of sound interference is caused not resolve the problem satisfactorily, please visit by a defect in your hi-fi system. Cables that have www.grundig.com, product range: hi-fi, micro accidentally been disconnected, damaged CDs CD stations or contact your specialist dealer. and flat batteries for the remote control will impair functioning. If the following measures do Problem Possiblecause/remedy Insert a CD. Check that the CD was inserted with the label facing upwards. »NO DISC« is displayed. Moisture may have collected on the laser lens; wipe it clean. Clean the CD (see "INFORMATION") or use a different CD. The CD-RW/CD-R is not finalised. Reception signal too weak; position the wire antenna differently. Poor radio reception. Move the hi-fi further away from the television. The hi-fi system does not react Disconnect the power cord from the mains plug, reinsert it after a short when the buttons are pressed. - Page 30 Grundig Intermedia GmbH Beuthener Strasse 41 90471 Nürnberg www.grundig.com 72011 412 2500 14/10...
