TRENDnet TFC-210MSC Specifications

FEATURES
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards
• One 10/100Base-TX Auto-Negotiation, Auto-MDIX RJ-45 port
• One 100Base-FX multi-mode SC-type Fiber port
• Supports LLCF (Link Loss Carry Forward)
• Provides Dip switches to set: UTP (Auto Negotiation/Full Duplex), Fiber (Half Duplex/Full Duplex) , LLCF (Enable/Disable), Mode
(Pure Mode/ Switch Mode)
• 802.3x flow control for 10/100Base-TX port
• Diagnostic LEDs
• Plug & Play, Hot Swappable
• Optional 19" Fiber Converter Chassis (TFC-1000) holds up to 10 Media Converters
• 5-Year Warranty

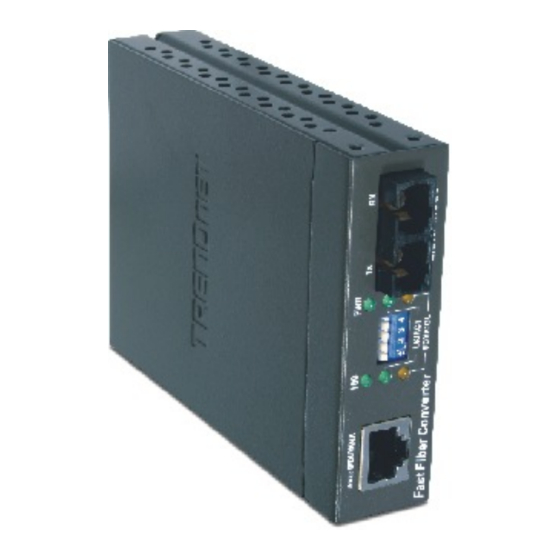

10/100Base-TX to 100Base-FX Fiber
Multi-Mode SC-Type Fiber Converter
TFC-210MSC (v1.0R)
This Fiber Converter transforms 10/100Base-TX UTP/STP media to
100Base-FX multi-mode media. The 10/100Base-TX port supports
auto-negotiation and auto-MDIX. Designed to connect up to 2KM,
the converters are the perfect Fast Ethernet, multi-mode solution.
TFC-210MSC
rev:03.02.2007
