Replacement Parts Diagram - Air King Exhaust Fan DRLC107 Operating Manual

21
# Qty. Description
1 1 Fan Housing
2 4 Mounting Rails
3 1 Collar
4 1 Damper
5 1 Polarized Receptacle
6 1 Polarized Nylon Receptacle 3P
7 1 Blower Wheel
8 1 Motor
9 2 Lockwasher
10 1 Motor Bracket
11 2 Screw
210572064 Rev. A 8-05

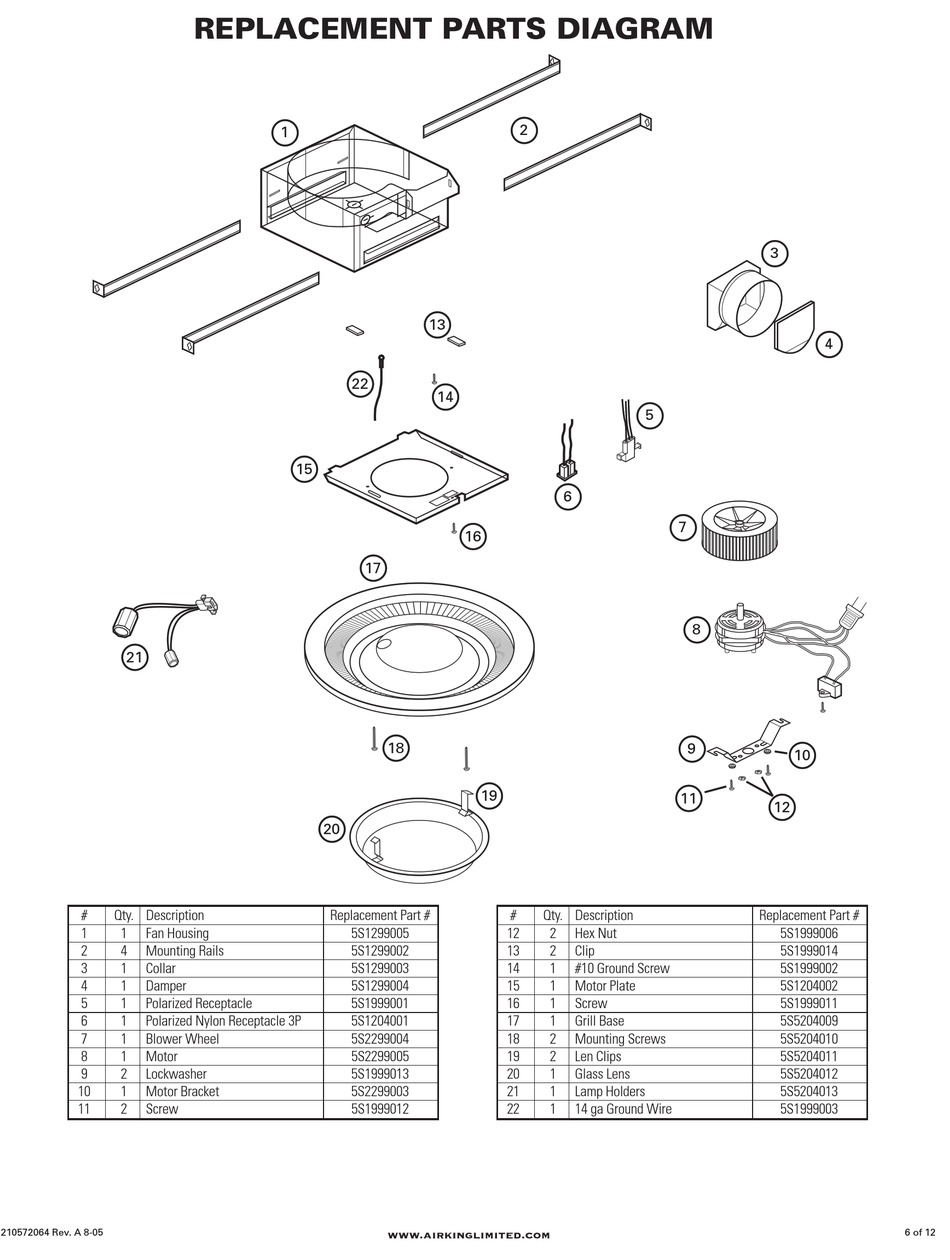

REPLACEMENT PARTS DIAGRAM

1
22
15
17
20
Replacement Part #
5S1299005
5S1299002
5S1299003
5S1299004
5S1999001
5S1204001
5S2299004
5S2299005
5S1999013
5S2299003
5S1999012
2
13
14
6
16
18
19
# Qty. Description
12 2
13 2
14 1
15 1
16 1
17 1
18 2
19 2
20 1
21 1
22 1
