olqljb`

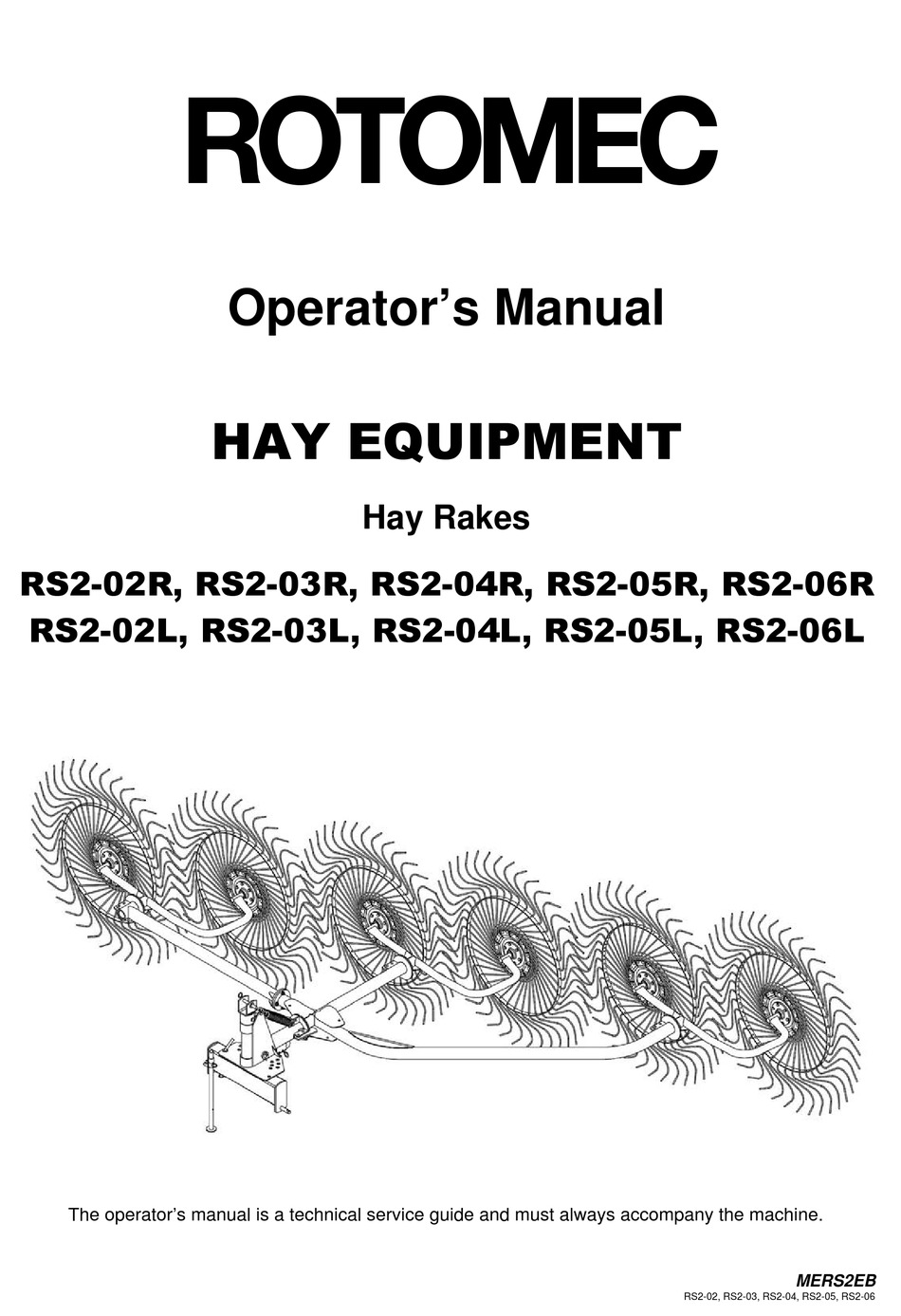

Operator's Manual
HAY EQUIPMENT
Hay Rakes
RS2-02R, RS2-03R, RS2-04R, RS2-05R, RS2-06R
RS2-02L, RS2-03L, RS2-04L, RS2-05L, RS2-06L
The operator's manual is a technical service guide and must always accompany the machine.
MERS2EB
RS2-02, RS2-03, RS2-04, RS2-05, RS2-06

Advertisement

Table of Contents
loading

Related Manuals for Rotomec RS2-02R

Summary of Contents for Rotomec RS2-02R

  • Page 1 Operator’s Manual HAY EQUIPMENT Hay Rakes RS2-02R, RS2-03R, RS2-04R, RS2-05R, RS2-06R RS2-02L, RS2-03L, RS2-04L, RS2-05L, RS2-06L The operator’s manual is a technical service guide and must always accompany the machine. MERS2EB RS2-02, RS2-03, RS2-04, RS2-05, RS2-06...

  • Page 2: Signal Words

    SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
  • Page 3 Operator’s Manual HAY EQUIPMENT Hay Rakes RS2-02R, RS2-03R, RS2-04R, RS2-05R, RS2-06R RS2-02L, RS2-03L, RS2-04L, RS2-05L, RS2-06L The operator’s manual is a technical service guide and must always accompany the machine. MERS2EB RS2-02, RS2-03, RS2-04, RS2-05, RS2-06...
  • Page 4 INDEX 1 - GENERAL INFORMATION 1.01 - General 1.02 - Warranty Information 1.03 - Model and Serial Number ID 1.04 - Assembly Instructions 2 - SAFETY PRECAUTIONS 2.01 - Preparation 2.02 - Starting and Stopping 2.03 - Messages and Signs 3 - OPERATION 3.01 - Operational Safety 3.02 - Set-up...

  • Page 5: General Information

    ’ AKES PERATOR ANUAL 1 - GENERAL INFORMATION Thank you and congratulations for having chosen our implement. Your new hay rake is a technologically advanced machine constructed of high quality, sturdy components that will fulfil your working expectations. Read this manual carefully. It will instruct you on how to operate and service your implement safely and correctly.

  • Page 6: Model And Serial Number Id

    ’ AKES PERATOR ANUAL 1.03 - Model and Serial Number ID Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your dealer needs this information to give you prompt, efficient service when you order parts.
  • Page 7 ’ AKES PERATOR ANUAL Note: All hardware needed for assembly will be found in the crate and the hardware bag of the machine. Assembly will be easier if all parts are loosely assembled before tightening the hardware. CAUTION: Stand clear of bands when cutting as they could be under sufficient tension to cause them to fly loose.
  • Page 8 ’ AKES PERATOR ANUAL 3. Slide the arm with hubs in the hole at the end of the support arm until the flanges on both pieces are bumped up to one another. Secure the arm with the locking lever then secure the lever with the Ø12x56 locking pin and the Ø3 hairpin cotter. 4.
  • Page 9 ’ AKES PERATOR ANUAL 4. To facilitate further assembly, use a hoist to attach the three point hitch of the hay rake to the three point hitch of the tractor. Secure the top link with the top hitch pin and the Ø4 hairpin cotter and the bottom hitches with lynch pins. 5.

  • Page 10: Safety Precautions

    ’ AKES PERATOR ANUAL 2 - SAFETY PRECAUTIONS Safety is the primary concern in the design and manufacture of our products. Unfortunately our efforts to provide safe equipment can be wiped out by a single careless act of an operator. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of...

  • Page 11: Starting And Stopping

    ’ AKES PERATOR ANUAL 2.02 - Starting and Stopping 1. Be sure that no one is near the machine prior to engaging or while the machine is working. 2. Be sure the tractor is in “Neutral” before starting engine. 3. Equipment operating power is ground driven. Know how to stop the tractor quickly in case of an emergency.
  • Page 12 ’ AKES PERATOR ANUAL Fig. 5 - Safety decals - implement; replace immediately if damaged. 1. Read this manual carefully. 2. Before maintenance operations, shut tractor down. 3. Keep away from rotating parts. 4. Keep away, objects can be thrown. 5.
  • Page 13 ’ AKES PERATOR ANUAL right side left side olqljb` AFETY RECAUTIONS...

  • Page 14: Operational Safety

    Bearings are protected by dust caps. With working widths ranging from 1,3 meters to 3,9 meters (4’3” to 12’9”) and working speeds of up to 22 km/h (14 mph) there is no doubt that Rotomec offers the ideal rake for all your raking needs.
  • Page 15 ’ AKES PERATOR ANUAL 6. Never place hands or feet under implement with tractor engine running or before you are sure all motion has stopped. Stay clear of all moving parts. 7. Do not reach or place yourself under equipment until it is blocked securely. 8.

  • Page 16: Pre-Operational Check

    ’ AKES PERATOR ANUAL 3.02 - Set-up Notice to dealer: Pre-delivery set-up and service including lubrication is the responsibility of the authorised dealer. It is up to him to assure that the machine is in perfect condition and ready to be used. It is his responsibility to ensure that the customer is aware of all safety aspects and operational procedures for the implement.
  • Page 17 ’ AKES PERATOR ANUAL DANGER: Never attempt to attach the implement to the tractor or make any adjustments to it without first turning the tractor off. DANGER: Failure to ensure a secure coupling of the implement to the tractor can cause injury and damage to the implement or tractor.

  • Page 18: Working Speed

    ’ AKES PERATOR ANUAL 3.06 - Working Speed Ground speed is determined by the soil condition and tractor power. Simple experimentation will determine the best speed for the desired results, usually 12 to 22 km/h (8 to 14 mph). 3.07 - Operating Techniques When working, rake wheels should slightly touch the ground.
  • Page 19 Rotomec’s RS2-04, RS2-05 and RS2-06 hay rakes offer six different angling positions that allow the operator to fine tune the unit to obtain the best raking results for his job (see fig. 7). The first hole on either side of the frame holder hitch is always the one to be used when transporting the hay rake (see #1, fig.
  • Page 20 ’ AKES PERATOR ANUAL adjustments available (see fig. 7). Once the desired raking angle is selected insert the locking pin through the hole and secure it with the Ø4 hairpin cotter. Lower the rake to the ground so that the rake wheels are carrying the weight at the back of the unit. Select the desired working speed and begin raking.
  • Page 21 ’ AKES PERATOR ANUAL Fig. 9 - Spreading Turning (models RS2-04, RS2-06) In the turning position, each pair of rake wheels overlap front to back turning the forage crop and allowing it to dry faster. In the turning position, the finger wheels are set to work in pairs turning two windrows in each pass.

  • Page 22: Uneven Terrain

    ’ AKES PERATOR ANUAL 3.09 - Uneven Terrain DANGER: Be careful of rollover when operating tractor and implement over uneven ground. The following precautions should always be observed when working on uneven terrain: 1. In extremely uneven terrain rear wheel weights, front tractor weights, and/or tire ballast should be used to improve stability.
  • Page 23 ’ AKES PERATOR ANUAL Once the field has been raked raise the three point hitch so the rake wheels are clear off the ground. Always engage the lock plate before transporting the unit to and from its storage location (see fig. 6). Insert the locking pin in the transport position hole and secure it with the Ø4 hairpin cotter (see fig.

  • Page 24: Maintenance Safety

    ’ AKES PERATOR ANUAL 4 - MAINTENANCE DANGER: Stop engine, lock parking brake and remove key before performing any service or maintenance. Never rely on the tractor lift system. Install blocks or stands under the implement to prevent it from falling. Always use personal protection devices, such as glasses or gloves when performing maintenance.
  • Page 25 ’ AKES PERATOR ANUAL 13. Unauthorised modifications to the machine may impair the function and/or safety of the machine and reduce its life. If equipment has been altered in any way from original design, the manufacturer does not accept any liability for injury or warranty. 4.02 - Service Before each use: 1.
  • Page 26 ’ AKES PERATOR ANUAL TABLE 1 - TORQUE SPECIFICATIONS Metric (ISO) Inch (SAE) treaded treaded bolts head bolts head marking marking Class 5.8 Class 8.8 Class 10.9 Grade 2 Grade 5 Grade 8 Bolt Bolt Thread Thread size ft-lb ft-lb ft-lb size inch...

  • Page 27: Repair Procedures

    ’ AKES PERATOR ANUAL 5 - REPAIR PROCEDURES CAUTION: All repair procedures must be done by authorised dealerships. It is not recommended that untrained individuals perform any repair work. The following operations are detailed for qualified personnel only. Never work under the implement without properly blocking the unit.

  • Page 28: Suggested Spare Parts

    ’ AKES PERATOR ANUAL 5.02 - Suggested Spare Parts It is suggested that the following spare parts be kept on hand for the implement at all times to prevent a minor problem from delaying work. Description Quantity Teeth Carriage bolts & nuts 5.03 - Storage After seasonal use it is important to perform the following for prolonged storage: 1.

  • Page 29: Troubleshooting

    ’ AKES PERATOR ANUAL 6 - TROUBLESHOOTING WARNING: Be sure tractor engine is off, parking brake is locked, and key is removed before making any adjustments. PROBLEM POSSIBLE CAUSE SOLUTION Wheel does not New teeth. Run rake wheels on gravel road for a unload hay.
  • Page 30 ’ AKES PERATOR ANUAL PROBLEM POSSIBLE CAUSE SOLUTION Teeth breaking. Excessive ground speed. Reduce ground speed. Excessive ground pressure. Reduce ground pressure. Backing up with teeth on the Raise rake before backing up. ground. Too much machine weight on Raise three point hitch. teeth.

  • Page 31: Pre-Delivery Checklist

    ’ AKES PERATOR ANUAL 7 - PRE-DELIVERY CHECKLIST To the dealer: Inspect the machine thoroughly after assembly to assure it is functioning properly before delivering it to the customer. The following checklist is a reminder of points to cover. Check off each item as it is found satisfactory or after proper adjustment is made.

  • Page 32: Warranty

    ’ AKES PERATOR ANUAL 8 - WARRANTY The Company warrants its machine from defects in material and workmanship. The machines are warranted from the invoice date for the following periods. 1. 24 months for private use. 2. 12 months for commercial, contractual and public use. 3.
  • Page 33 ’ AKES PERATOR ANUAL The Company reserves the right to modify or update machines without the obligation of modifying or updating previously sold machines. Venue: Any judgements will be decided by the Verona Court. olqljb` ARRANTY...

  • Page 34: Ec Declaration Of Conformity

    ’ AKES PERATOR ANUAL EC Declaration of Conformity according to Directive 2006/42/EC olqljb` =ëé~ sá~=jçäáåç=Çá=pçéê~I=RS PTMRQ=kçÖ~ê~=EsÉêçå~FI=fí~äó declare under our sole responsibility, that the product: Hay Rake Model ____________ Serial No. _______________ to which this declaration relates corresponds to the relevant basic safety and health requirements of the Directive 2006/42/EC.

  • Page 37: Warranty Registration

    Operator’s Manual and literature published by Rotomec. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to Rotomec spa within 14 days of date of purchase.
  • Page 38 Place stamp here olqljb`=ëé~ Via Molino di Sopra, 56 37054 Nogara (VR) ITALY...
  • Page 39 Use only original spare parts All rights reserved. It is unlawful to copy, reprint or use any of the information or details in this manual without the expressed written permission of the Company. Technical information provided in this manual is approximate, the Company reserves the right to modify or improve the models shown for technical or commercial purposes.
  • Page 40 olqljb` ëé~ sá~=jçäáåç=Çá=pçéê~I=RS PTMRQ=kçÖ~ê~=EsoFI=fí~äó qÉäKW=HPVKMQQOKRNMQMM=J=c~ñW=HPVKMQQOKRNMMPU ïïïKêçíçãÉÅKÅçã...
