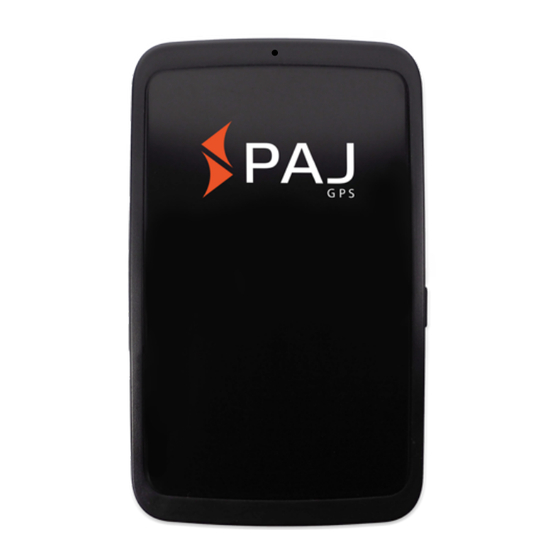

- Page 1 ALLROUND FINDER...
-
Page 3: Table Of Contents
NOTE! We update our user manuals on a regular basis, in order to keep them up to date. The latest version can be viewed at any time at www.paj-gps.de/finder. ALLROUND Finder 4G von PAJ V.2.0 EN © PAJ UG (haftungsbeschränkt) -
Page 4: Scope Of Delivery
2.1 Scope of delivery Your delivery will include: • ALLROUND Finder 4G • charging cable • USB wall plug • protective case • M2M SIM card* *the M2M SIM card is already inside your FINDER and is not replaceable... -
Page 5: Product Description
However, beware that this duration will depend on how much you use your device. The more the ALLROUND Finder 4G is in motion and thus sending data to the portal, the greater the battery usage. -
Page 6: Activation
2.4 Activation In order to use your ALLROUND Finder 4G, you will need to previously activate it online. Enter the following link and follow the instructions: www.start.finder-portal.com 2.5 Switch on/off When activation is successful, turn on right = on the GPS tracker by sliding the switch... -
Page 7: Use
2.6 Use As soon as your device has been successfully activated, started up and has sent and logged data for the first time, you can place it wherever you choose and use your phone, tablet or PC to start tracking it! You will be able to do this in our App or enter the following link to the desktop version: www.v2.finder-portal.com... - Page 9 1. Menu 2. Notifications 3. Devices menu 4. Device position 5. 2D / 3D setting 6. Own location 7. Map adjustment 8. Alarms / Stops on the route 9. Route points 10. Heat map 11. Routes...
-
Page 10: Meaning Of The Led Lights
2.7 Meaning of the LED lights Orange LED - GSM status Signal Meaning The orange LED is blinking There is no available GSM signal The GPS Tracker is in standby mode or The orange LED is off switched off The orange LED is fixed A GSM signal is available Blue LED - GPS status Signal... -
Page 11: Operating The Sos Button
The LEDs flash alternately for 12 seconds The SOS button has been pressed for 5 seconds and an SOS signal has been sent. 2.8 Operating the SOS button Press and hold the SOS button for 5 se- conds and the FINDER will send an alarm. You can see whether an alarm has been sent by the orange and blue LEDs flashing alternately for 12 seconds. -
Page 12: Technical Details
2.9 Technical Details Dimensions 105,5 mm x 63 mm x 22,7 mm GPS accuracy under 10 meters Standby time approximately 60 days Battery 3,7 V 5.000 mAH Li-ion Weight 170 g Cold start: 30 s Start time Standby: 30 s / running: 1 s Network GSM/GPRS/EDGE/FDD-LTE/TDD-LTE LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/... -
Page 13: Safety Instructions
In other countries and regions there are different laws on digital positioning and localization of people, animals and/or objects. PAJ UG is not responsible if such laws or regulations are violated, this is the sole responsibility of the user. - Page 14 Safety WARNING! RISK OF ELECTRIC SHOCK! A faulty electrical installation or a mains voltage that is too high can lead to an electric shock. • Before use, make sure that the mains voltage of the socket corresponds with the information on the type plate. •...
- Page 15 • PAJ GPS shall not be liable for any damage or loss (whether in contract or tort, including negligence) arising from your failure to comply with these warnings and instructions.
- Page 16 Electromagnetic compatibility Please observe all rules and prohibitions and switch off the GPS tracker immediately in danger areas and if it might cause interference. Furthermore, it should not be used in the vicinity of, for example, medical equipment, fuels and chemicals, or in blasting areas.
- Page 17 Declaration of conformity Hereby, PAJ UG (haftungsbeschränkt) declares that the tracker, ALLROUND Finder 4G, is in conformity with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity can be found at the following Internet address: paj-gps.de/konformitaetserklaerung/...
-
Page 18: Disposal Of Used Batteries
Used batteries of the aforementioned type can therefore either be returned to us with sufficient postage or handed in directly to our dispatch warehouse at the following address free of charge: PAJ UG (haftungsbeschränkt) Hohe Straße 61 51570 Windeck Germany E-Mail: info@paj-gps.de... -
Page 19: Disposal Of Electrical Devices
2.12 Disposal of electrical devices The Electrical and Electronic Equipment Act (ElektroG) contains a large number of requi- rements for the handling of electrical and electronic equipment. The most important ones are summarised here. 1. Separate collection of WEEE: Waste Electrical and Electronic Equipment that has become waste is referred to as WEEE. Owners of WEEE must dispose of it separately from unsorted local waste. - Page 20 PAJ UG (haftungsbeschränkt) Hohe Straße 61 51570 Windeck Germany Mail: info@paj-gps.de Telefon: +49 (0) 2292 39 499 59 Web: www.paj-gps.de The PAJ GPS Team wishes you to enjoy your ALLROUND Finder 4G!
- Page 21 PAJ UG (haftungsbeschränkt) Hohe Straße 61, 51570 Windeck Germany...
