ZHEJIANG BENYI NEW ENERGY CO.,LTD.
WENZHOU BRIDGE INDUSTRIAL ZONE,BEIBAIXIANG TOWN, ZHEJIANG, CHINA
TEL: +86-577-5717 7008 FAX: +86-577-5717 7007
VERSION: 20230201
benyi@zjbeny.com
www.beny.com
This catalogue has been printed on ecological paper.
Zhejiang Benyi New Energy Co.,Ltd.all rights reserved.
If the models and specification in this product catalogue is changed due to the change of products, we wil not inform.

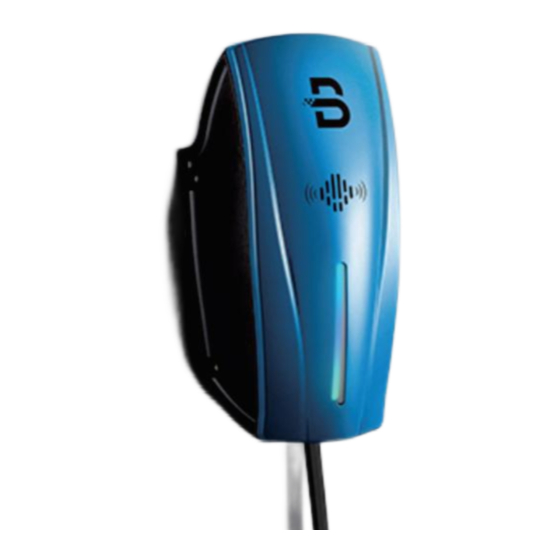

BCP Series
AC EV Charger
Use and lnstallation Manual
WWW.BENY.COM
Scan For
More Information
Advertisement
Table of Contents
Related Manuals for BENY BCP Series
Summary of Contents for BENY BCP Series

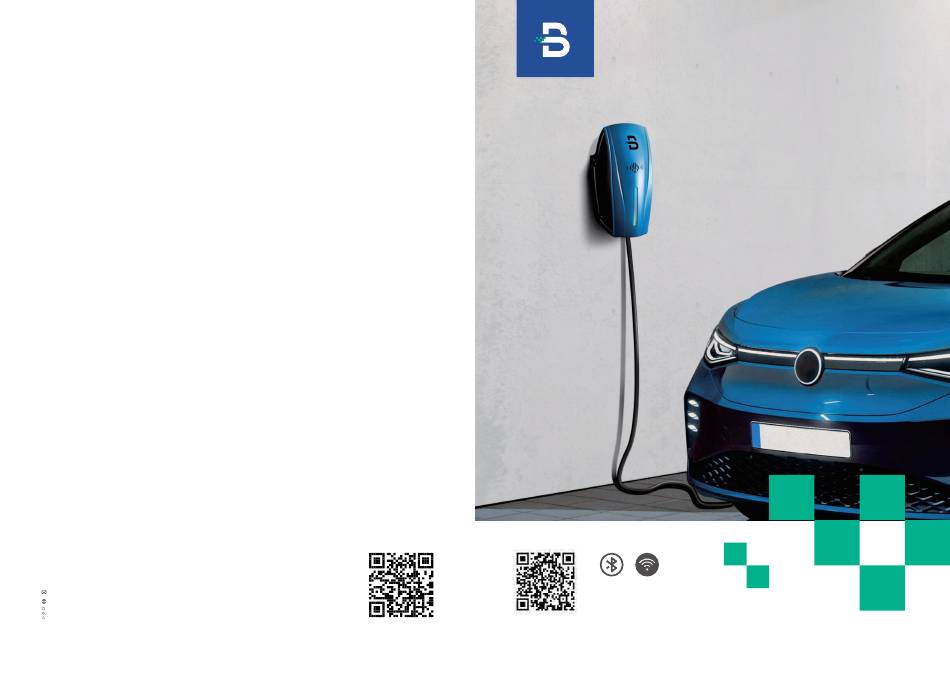

- Page 1 BCP Series AC EV Charger Use and lnstallation Manual WWW.BENY.COM ZHEJIANG BENYI NEW ENERGY CO.,LTD. WENZHOU BRIDGE INDUSTRIAL ZONE,BEIBAIXIANG TOWN, ZHEJIANG, CHINA TEL: +86-577-5717 7008 FAX: +86-577-5717 7007 VERSION: 20230201 benyi@zjbeny.com www.beny.com This catalogue has been printed on ecological paper.
-
Page 2: Table Of Contents
CONTENTS Safety information Operating status Power on checking P-17 Important safety instructions P-01 ● ● ● Button P-17 ● Cautions P-02 ● LED lights instructions P-18 ● Notes P-02 ● Buzzer prompt description P-22 ● Specification P-03 Start to use? Download the APP here P-22 Power Comparison Table P-03... -
Page 3: Safety Information
Read this entire mandatory document before installing or using the EV charger. This device should be supervised when used around children. The BCP series EV Charger must be grounded through a permanent wiring system or an Cautions equipment grounding conductor. -
Page 4: Specification
Safety information Safety information Specification Features Build-in with overvoltage and under-voltage protection(U>264V or U<187V), over-current ● Description Specification protection, over temperature protection, imperfect earth detection, CP abnormal signal Voltage and wiring Single-phase or three-phase EV Charger: AC230V±10%; L1、N、 protection and type A + DC 6mA for europe standard. PE Three-phase EV Charger: AC400V±10%;... -
Page 5: Prepare For Installation
Prepare for installation Prepare for installation Position Ensure that the parking position is within range of the charging cable. ● ● There is enough clearance for the charging cable to wrap around and the charging handle can be comfortably positioned on the side of base. ●... -
Page 6: Power Supply
APP to turn off the earth detection and it will work, but it will reduce to the leakage protection safety level. This BCP series AC EV charger must be grounded via a permanent electrical system or equipment grounding Conductor. -
Page 7: In The Box
In the box Installation instructions Step-by-step installation instructions ① ② ③ ④ (bottom entry wiring) Step 1 Position EV charger Wire box (optional) Mounting braket RFID card (optional) ⑨ The bottom of the positioning plate is 1.2 wall m away (recommended), if the EV charger is Drill installed close to the edge of the wall, the The 6 pionts... -
Page 8: Step-By-Step Installation Instructions (Rear Entry Wiring
Installation instructions Installation instructions Step-by-step installation instructions Step step installation instructions (bottom entry wiring) top entry wiring Step 3 Step 1 lnstall the EV Charger to the mounting plate Position ⑨ wall The bottom of the positioning plate is Align the side hole of EV charger to the 1.2 m away (recommended), if the EV panel's side holes. - Page 9 Installation instructions Installation instructions Step step installation instructions Step-by-step installation instructions (rear entry wiring) top entry wiring Step 3 Step 1 Cut out on the back of the EV charger. Position ⑨ wall The bottom of the positioning plate is 1.2 Find the hole for cut out on the back of EV M6*8 bolts m away (recommended), if the EV charger...
-
Page 10: Set The Operating Current
Installation instructions Installation instructions Step-by-step installation instructions Warning (rear entry wiring) Do not connect the power cord before reading and fully understanding all the concepts ● introduced in this section. If you are not sure whether the type of power supply on the repair Step 3 panel is available, please consult an electrician for assistance. -
Page 11: Operating Status
Operating status Operating status Power on checking LED light instructions Check content Normal Status Check and ensure the circuit breaker for the EV charger is reasonably selected LED Behavior LED Status Status Description Potential Cause Solution Confirm that there is no short circuit between the Lights OFF No power supply No power... - Page 12 Operating status Operating status Normal Status Fault Status Status Description Status Description LED Behavior LED Status Potential Cause Solution LED Behavior LED Status Potential Cause Solution Green lights up and No RFID card All lights strobe Contactor failure Contactor adhesion Check whether ( 4 times per second) or tripping...
-
Page 13: Buzzer Prompt Description
Operating status Operating status Buzzer prompt description Fault Status Status Description LED Behavior LED Status Potential Cause Solution Buzzer Status Operating Red light flashes Over current Short circuit may Call for Short buzzing one sound Swipe to start Start charging continuously happen professional repair... -
Page 14: Maintenance Instructions
Maintenance instructions Maintenance instructions ln order to ensure the normal service life of the charging pile and reduce the risk during use, it Safety notice must be overhauled with in the specified time period; the overhaul of the equipment should be Operation and maintenance risk notification carried out by professionals, band qualified and safe overhaul tools should be used. -
Page 15: Dlb Installation Instructions
DLB Installation instructions DLB Installation instructions 1 Phase Grid 2 Phase Grid Normal DLB Normal DLB Other Other household household Distribution Distribution Load Load Appliances Appliances State Grid State Grid Clamp Clamp Electric Car Electric Car EV Charger EV Charger Solar DLB Solar DLB Other... -
Page 16: Phase Grid
DLB Installation instructions DLB Installation instructions 3 Phase Grid 2 Live wire 1 earth wire power supply method Normal DLB Normal DLB Other Other household household Distribution Distribution Load Load Appliances Appliances State Grid State Grid Clamp Clamp L1 L2 PE L1 L2 Electric Car Electric Car...
