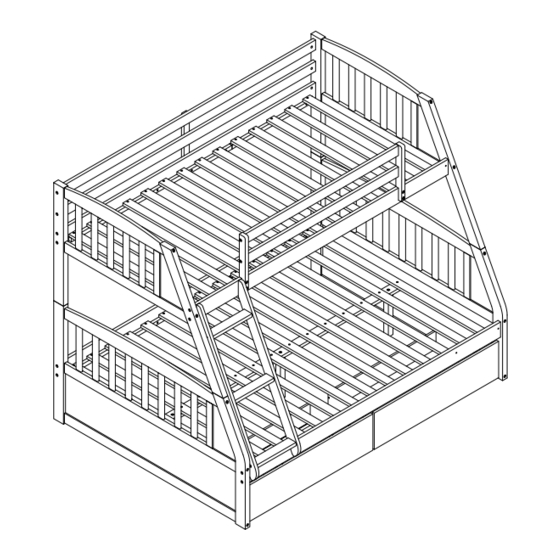

- Page 1 ASSEMBLY INSTRUCTIONS BUNK BED WF287229/WF287230...
- Page 2 SAFETY WARNINGS 1. This bed is designed for use only mattress(es) meeting the following specifications on the upper bunk, and lower bunk: Bed Type Length Width Thickness Twin Standard 74” - 75” 38 ¹/ ²” Full Standard 74” - 75” 53 ¹/²...
- Page 3 Detail View...
- Page 4 PART LISTS : WF287229 Bottom Frame - (2pcs) Bottom front leg (left) - (1pc) Upper Frame - 2pcs Upper slats - (14pcs) Bottom slats - (14pcs) Drawer side panels - (4pcs) Center support leg - (3pcs) Bottom panel - (2pcs)
- Page 5 PART LISTS : WF287230 Bottom panel - (2pcs) Bottom rail - (2pcs) Bottom back leg (left) - (1pc) Bottom front side rail - (1pc) Back Guardrail reinfoce bar - (1pc) Bottom back side rail - (1pc) Guardrail front posts (left) - (1pc) Front upper side rails - (2pcs) Back upper side rail - (2pcs) Back upper side rail - (1pc)
- Page 6 HARDWARE LISTS : WF287229 Hex-Head bolt: Ø1/4"*65mm - (4pcs) Hex-Head bolt: Ø1/4"*110mm - (20pcs) Hex-Head bolt: Ø6"*30mm - (3pcs) Hex-Head bolt: Ø1/4"*80mm - (20pcs) Hole bolt: Ø1/4"*12*15mm - (24pcs) Hex-Head bolt: Ø6"*50mm - (10pcs) Allen key - (1pc) Metal dower: Ø10*90mm - (4pcs) Wood dower: Ø10*30 - (56pcs)
- Page 7 Step 1: Step 2: 12pcs 12pcs...
- Page 8 Step 3: 6pcs Step 4: 4pcs 8pcs 8pcs ATTENTION: PLEASE DON'T TIGHTEN ALL BOLTS IN THIS STEP, JUST TIGHTEN 80%...
- Page 9 Step 5: 8pcs 8pcs Step 6: 12pcs 12pcs 12pcs ATTENTION: PLEASE DON'T TIGHTEN ALL BOLTS IN THIS STEP, JUST TIGHTEN 80%...
- Page 10 Step 7: 8pcs Step 8: 4pcs 8pcs 4pcs...
- Page 11 Step 9: 4pcs 4pcs Step 10: 4pcs...
- Page 12 Step 11: 12pcs 6pcs Step 12: 4pcs...
- Page 13 Step 13: 3pcs Step 14: STEP 2: SCREW STEP 1: PULL SIDE RAIL ALL SLATS CLOSE TOGETHER 70pcs ENOUGH TO FIT THE SLATS STEP 3: TIGHTEN 100% ALL HEXAGON BOLTS...
- Page 14 Step 15: 8pcs Step 16: 4pcs 8pcs Step 17: 8pcs 16pcs...
- Page 15 Step 18: Completed...
