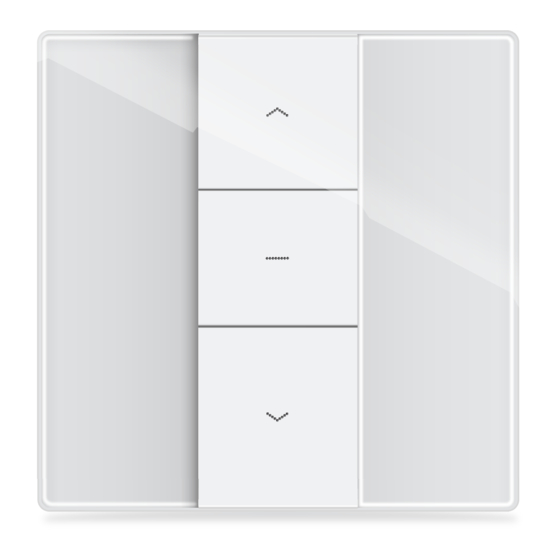

- Page 1 EN NL DE FR M O T O R S INSTALLATION MANUAL DD1680 Bi-directional Receiver www.brel-home.com Scan the QR code here for the manual Visit our website for more to download & view instructional videos. manuals and information. DD-1680...
- Page 2 Working temperature C~+55 Stall detection rebound function One DD1680 receiver can store Max.10 channels, after more than 10 channel, only the last channel will be covered recycledly Wiring If press UP button, the sliding window actuator will close the window, then pls change the wires of NOTE the motor that connect to "+"...
- Page 3 Page 3 Functions Remote Control Stop Stop Down Setting Channel(-) button Down (P1-) (P2) Channel(-) CR2450 CR2450 LITHIUM BATTERY LITHIUM BATTERY (P1-) Switch Motor Types LED flashes 5 times Power on Press UP and DOWN The motor type has been button for 10 sec.
- Page 4 Page 4 Setting Motor Resistance Increase motor resistance If the LED flashes 10 times, the motor resistance has already been the Max. grade. LED flashes LED flashes LED flashes 5 once once times CR2450 CR2450 LITHIUM BATTERY LITHIUM BATTERY Power on Press P2 X 1 Press UP button Press UP button...
