Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
____________________________________________________
Technical data of the receiver
- Voltage:
- Power output:
- Radio frequency:
- Moisture and dust resistance:
- Temperature range of the motor:
____________________________________________________
Button specification
Up
Channel-
Down
Works with these BREL motors and receivers:
Motors:
MR, MEV, MCE, MDE, MLE, MJE, MTE, MEQ, MPE.
Receivers:
DC-50, DC-90, DC-92, DC-94, DC-101, DC-109, DC-114, DC-227, DC-252,
DC-253, DC-292, DC-305, DC-306, DC-2702.
____________________________________________________
Installation of the receiver
BREL motors is part of:

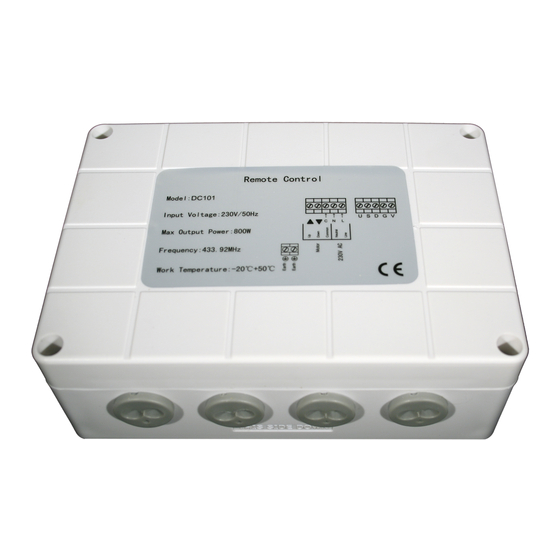

Manual Brel external receiver
Type DC-101
Channel+
P2
Type DC-50
230V 50Hz
800W
433.92MHz
IP55
- Normal use: -10℃ to +40℃
- Heavy use : -20℃ to +70℃
Mode
Time
Reach
L1 = 200 meter L2 = 35 meter
Electric roller
shutter
DC-101
Page 1
Electric roller
shutter
DC-101
Advertisement
Table of Contents
Related Manuals for brel-motors DC-101
Summary of Contents for brel-motors DC-101
- Page 1 Time Works with these BREL motors and receivers: Motors: MR, MEV, MCE, MDE, MLE, MJE, MTE, MEQ, MPE. Receivers: DC-50, DC-90, DC-92, DC-94, DC-101, DC-109, DC-114, DC-227, DC-252, DC-253, DC-292, DC-305, DC-306, DC-2702. ____________________________________________________ Installation of the receiver Reach L1 = 200 meter L2 = 35 meter...
- Page 2 Page 2 ____________________________________________________ Wiring diagram Best Distance ____________________________________________________ Reading multiple transmitters in the memory of the motor ˄ 1xP2 Long beep Long beep Power on. Press 1x P2 Press 1x up button. To remove a transmitter, repeat the above. ____________________________________________________ Delete all channels 1x P2 1x P2...
