brel-motors DC-50 Manual

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
____________________________________________________

Technical specifications

• Voltage:
• Power:
• Speed:
• Amperage:
• Radiofrequency:
• Moisture and dust:
• Working temperature of the motor:
o
o
____________________________________________________

Button specifications

Up
Channel-
Down
Operates with these BREL motors and receiversː
Motors: MR, MEV, MCE, MDE, MLE, MJE, MTE, MEQ.
Receivers: DC-50, DC-90, DC-92, DC-94, DC-101, DC-109, DC-114, DC-227, DC-252,
DC-253, DC-292, DC-305, DC-306, DC-2702.
____________________________________________________

Functions

BREL motors is part of:
Manual Brel receiver

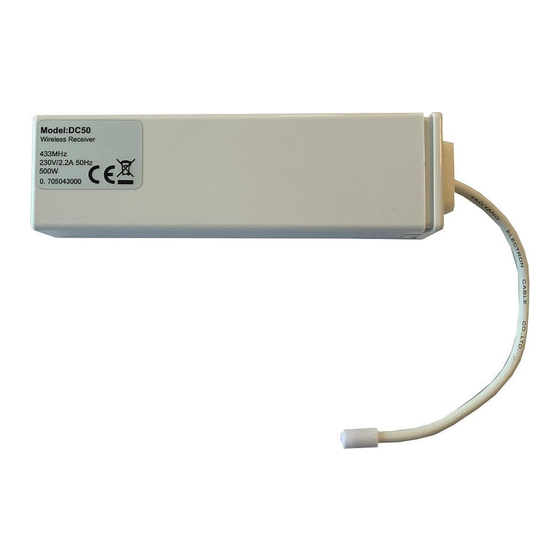

Type DC-50
Normal use:
Heavy use:
Channel+ P2
Type DC-50
230V
900W
20cm/sec.
4A
433.92MHz
IP55
-10℃ tot +40℃
-20℃ tot +70℃
If in the 5 channel receiver all
the lights are lid. All the
products are operated
Mode
simultaneously. (mode and
Time
time have only a function on an
emitter with a timer).
emitter with a timer)
Reach
L1 = 100 meter
Page 1
on an
L2 = 25 meter
