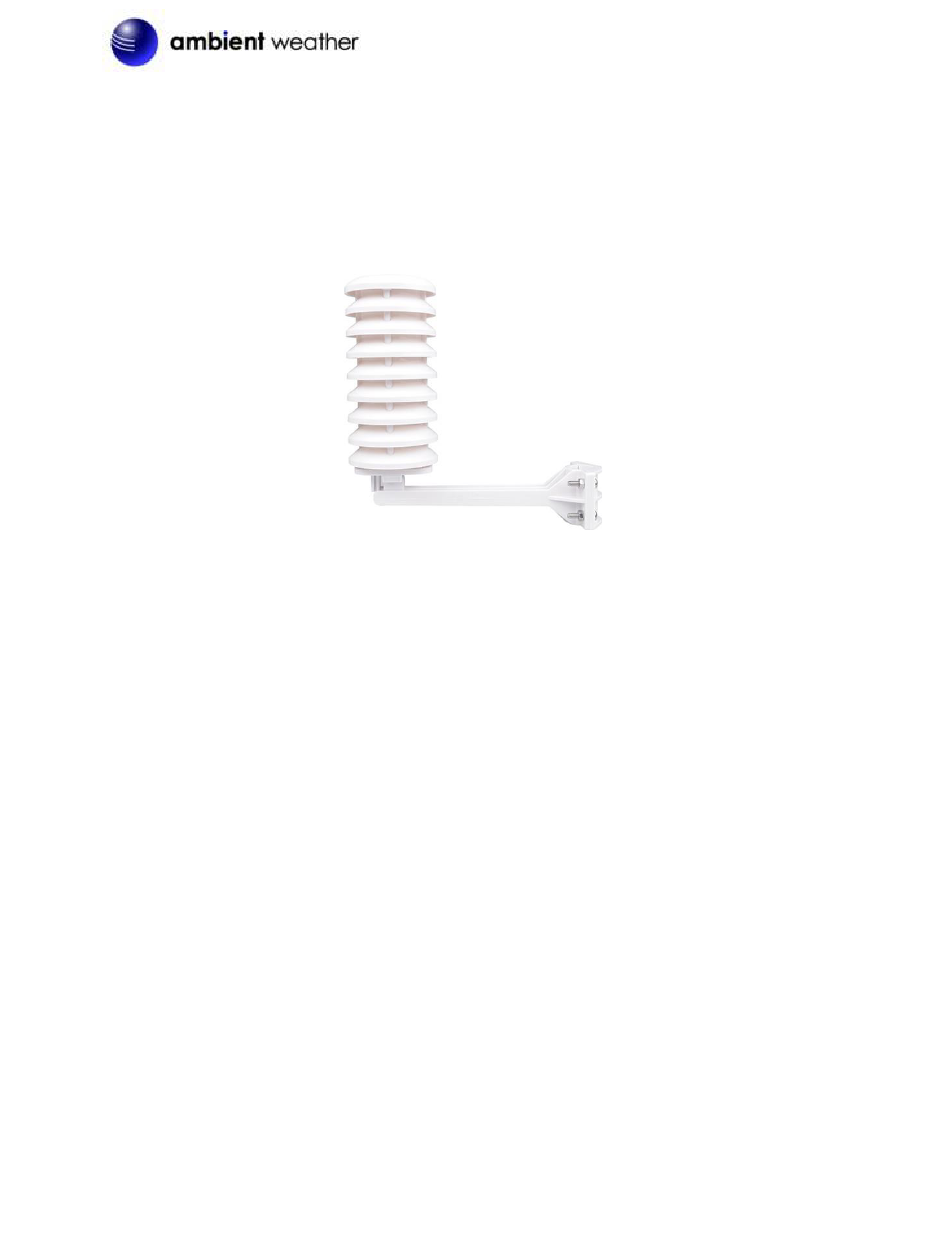

Ambient Weather WH31-SRS Installation Manual

Ambient Weather WH31-SRS Installation Manual

Temperature and humidity solar radiation shield

Advertisement

Quick Links

Ambient Weather WH31-SRS Temperature and Humidity
1
Introduction .............................................................................................................................................. 1
Part's List ................................................................................................................................................. 2
2
3
Dimensions .............................................................................................................................................. 2
4
Tools and Materials Needed ..................................................................................................................... 3
5
Location Tips ........................................................................................................................................... 3
6
Installation Options ................................................................................................................................. 3
7
Installation ............................................................................................................................................... 3
8
Compatible Sensors and Accessories ...................................................................................................... 5
9
Ambient Weather Network ...................................................................................................................... 6
10
Liability Disclaimer ................................................................................................................................. 6
11
Warranty Information............................................................................................................................... 6
12
California Prop 65 .................................................................................................................................... 8

1 Introduction

This instruction manual will take you step-by-step through the process of assembling and mounting
Ambient Weather WH31-SRS Temperature and Humidity Radiation Shield.
The WH31-SRS temperature and humidity radiation shields are low-cost solutions for protecting
temperature and relative humidity sensors. while at the same time minimizing direct exposure to sunlight.
The passive shield is shaped to allow natural air convection around the sensor so that the air temperature
inside the shield is a good representation of the outside air. The shield also provides protection from rain
and snow.
The WH31-SRS radiation shields fit most temperature and humidity sensors sold by Ambient Weather.

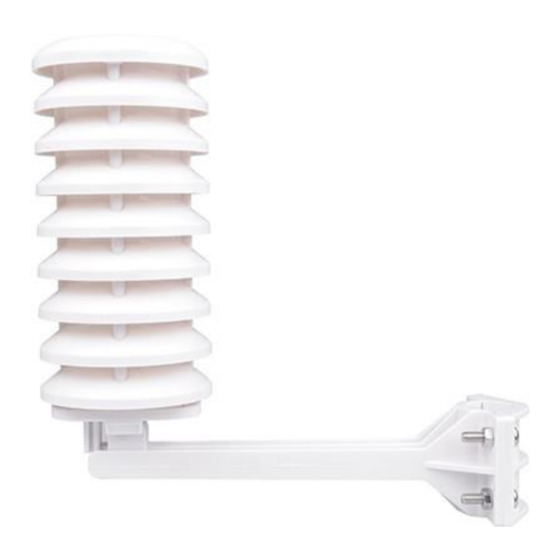

The WH31-SRS are designed with a highly reflective white surface to reflect the sun's direct radiation. The
multi-plate design allows for maximum airflow. The mounting arm can be mounted to any vertical surface.
Version 1.1
©Copyright 2022, Ambient LLC. All Rights Reserved.
Solar Radiation Shield

Table of Contents

Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH31-SRS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ambient Weather WH31-SRS

  • Page 1: Table Of Contents

    The WH31-SRS radiation shields fit most temperature and humidity sensors sold by Ambient Weather. The WH31-SRS are designed with a highly reflective white surface to reflect the sun's direct radiation. The multi-plate design allows for maximum airflow. The mounting arm can be mounted to any vertical surface.
  • Page 2: Part's List

    5/16” (8mm) nut ~ 1 31/32” (50mm) screw. 3 Dimensions WH31-SRS Dimensions Inner Dimensions (L x W) WH31-SRS: 6.125” x 2.75” Bracket Dimensions (L x W x H): 7” x 2.125” x 1.75” Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved.
  • Page 3: Tools And Materials Needed

    4 Tools and Materials Needed • 5/16” Wrench • Drill with 1/8” to 9/64” for mount without anchors • Drill with 1/4” to 5/16” for mount with anchors 5 Location Tips • The radiation shield must be placed away from large radiant heat sources, such as sun exposed buildings.
  • Page 4 Step 2: Place the sensor inside the Solar Radiation Shield, as shown in Figure 3. Note: Sensor is not secured inside the solar radiation shield until attached to the sensor mounting arm. Figure 3 Step 3: Attach the Solar Radiation Shield to the sensor mounting arm by clicking the tabs into place, as shown in Figure 4 and Figure 5 Horizontal Installation Vertical Installation...
  • Page 5: Compatible Sensors And Accessories

    Step 4: Attached WH31-SRS to a pole or a wooden post, as in figure 6 and 7 Figure 6 Figure 7 8 Compatible Sensors and Accessories The WH31-SRS is compatible with the optional sensors: WH31E Thermo-Hygrometer Sensor WH31L Lightning Detector...
  • Page 6: Ambient Weather Network

    9 Ambient Weather Network The Ambient Weather Network is an ad-free weather platform enhanced by a powerful network of weather stations providing the most accurate hyperlocal conditions for your neighborhood, activity, or business. Check your weather forecast, view local weather cameras, set alerts for changing conditions, and more! Download the Ambient Weather App for free or visit AmbientWeather.net...
  • Page 7 to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures. Version 1.1 ©Copyright 2022, Ambient LLC. All Rights Reserved. Page 7...
  • Page 8: 12 California Prop 65

    12 California Prop 65 WARNING: Use of the Ambient Weather Products can expose you to chemicals, including lead and lead compounds, which are known to the State of California to cause cancer and bisphenol A (BPA), and phthalates DINP and/or DEHP, which are known to the State of California to cause birth defects or other reproductive harm.
  • Page 9 Ambient Weather Product or component and Ambient Weather has not attempted to evaluate the level of exposure. A Proposition 65 warning means one of two things: (1) the business has evaluated the exposure and has concluded that it exceeds the "no significant risk level";...
