Digital Outputs X14 - AVL F-FEM-CON Operating Manual

4.12.7

Digital Outputs X14

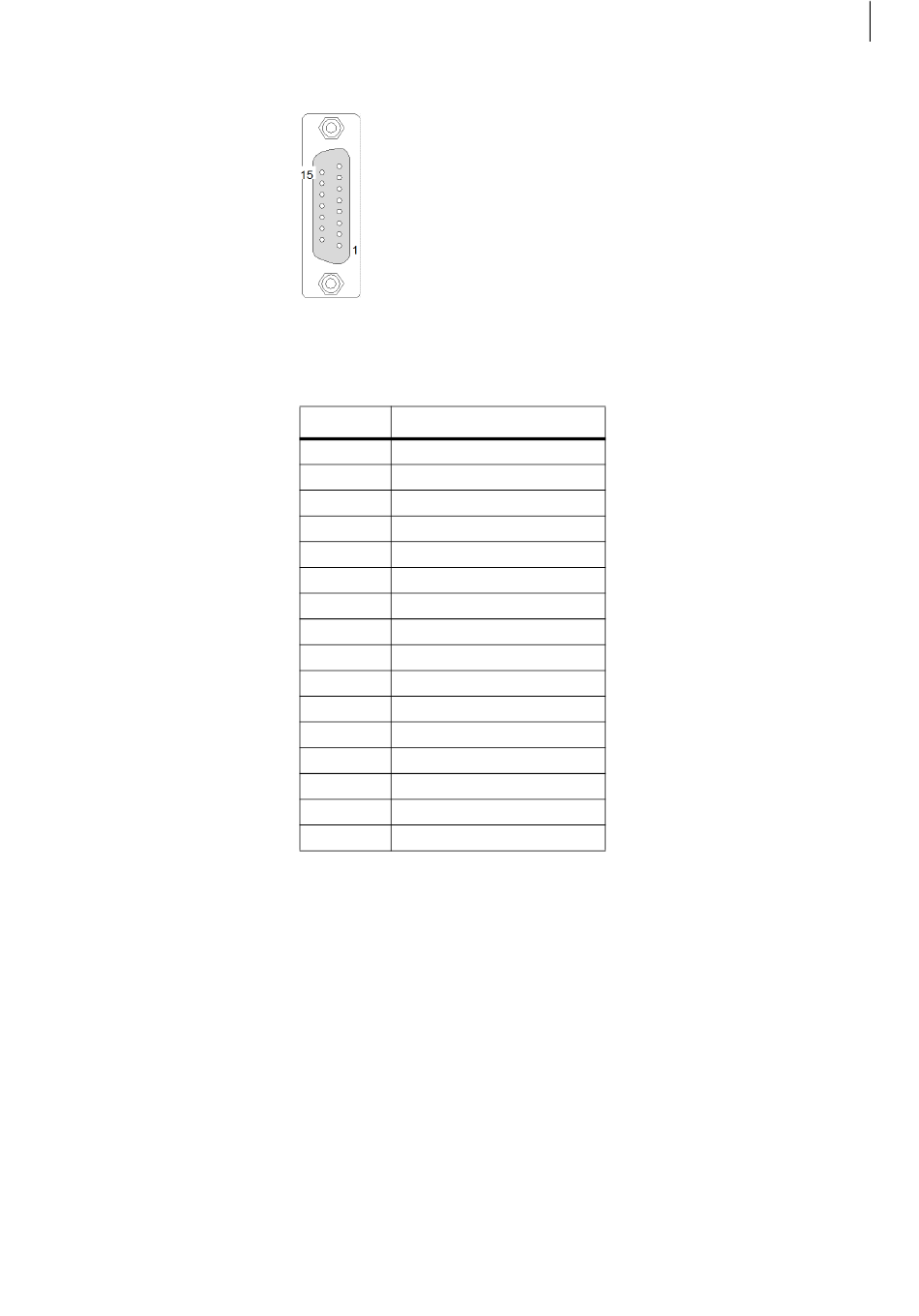

Fig. 64
The RSM8 module can be connected at this socket, using a straight-through
ribbon cable (see options).
Pin Signal at X14
1 DO1
2 DO3
3 DO5
4 DO7
5 +24 V (out)
6 NC
7 NC
8 NC
9 DO2
10 DO4
11 DO6
12 DO8
13 GND_24
14 NC
15 NC
Case Shielding
Tab. 27
F-FEM-CON — User's Guide
Operation 91
