Teledyne FLIR Lepton 3.1R Getting Started

Raspberry pi and breakout board v2.0
Hide thumbs

Advertisement

Quick Links

Download this manual
Teledyne FLIR
Infrared Camera OEM
GETTING STARTED WITH THE
RASPBERRY PI AND BREAKOUT BOARD V2.0
Disclaimer

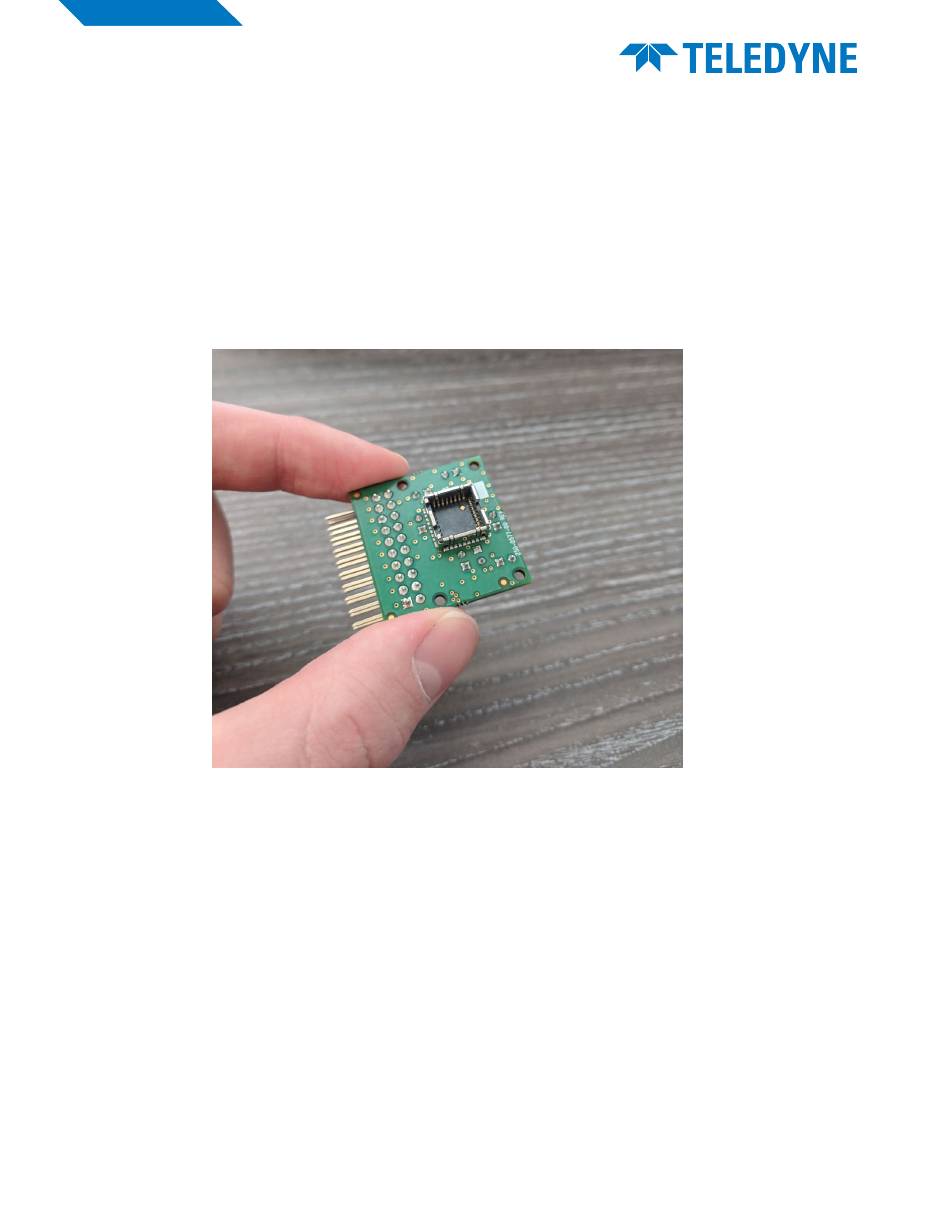

This guide is for the newer breakout board (seen here). Earlier versions of the breakout board do not
include VSYNC
Requirements
•
A computer with the ability to read/write to MicroSD cards
•
A laptop using Linux was used during this guide.
•

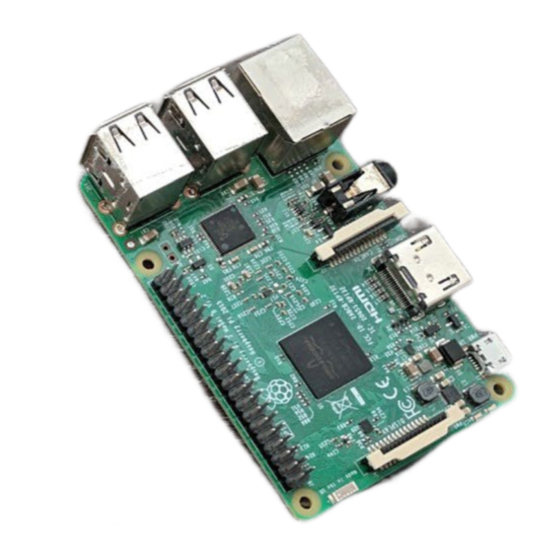

A RaspberryPi 2/3
•
You can find them here.
•
A MicroUSB to USB-A cable.
•
A MicroSD card with at least 8GB of capacity. MicroSD cards preinstalled with NOOBs
can be found here.
•
Labelled as 1.
Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited.
Imagery for illustration purposes only. Specifications are subject to change without notice. Rev. 100.
© 2021 Teledyne FLIR LLC. Approved for public release. Teledyne FLIR Approved [FLIRGTC-SBA-005]. All rights reserved.
