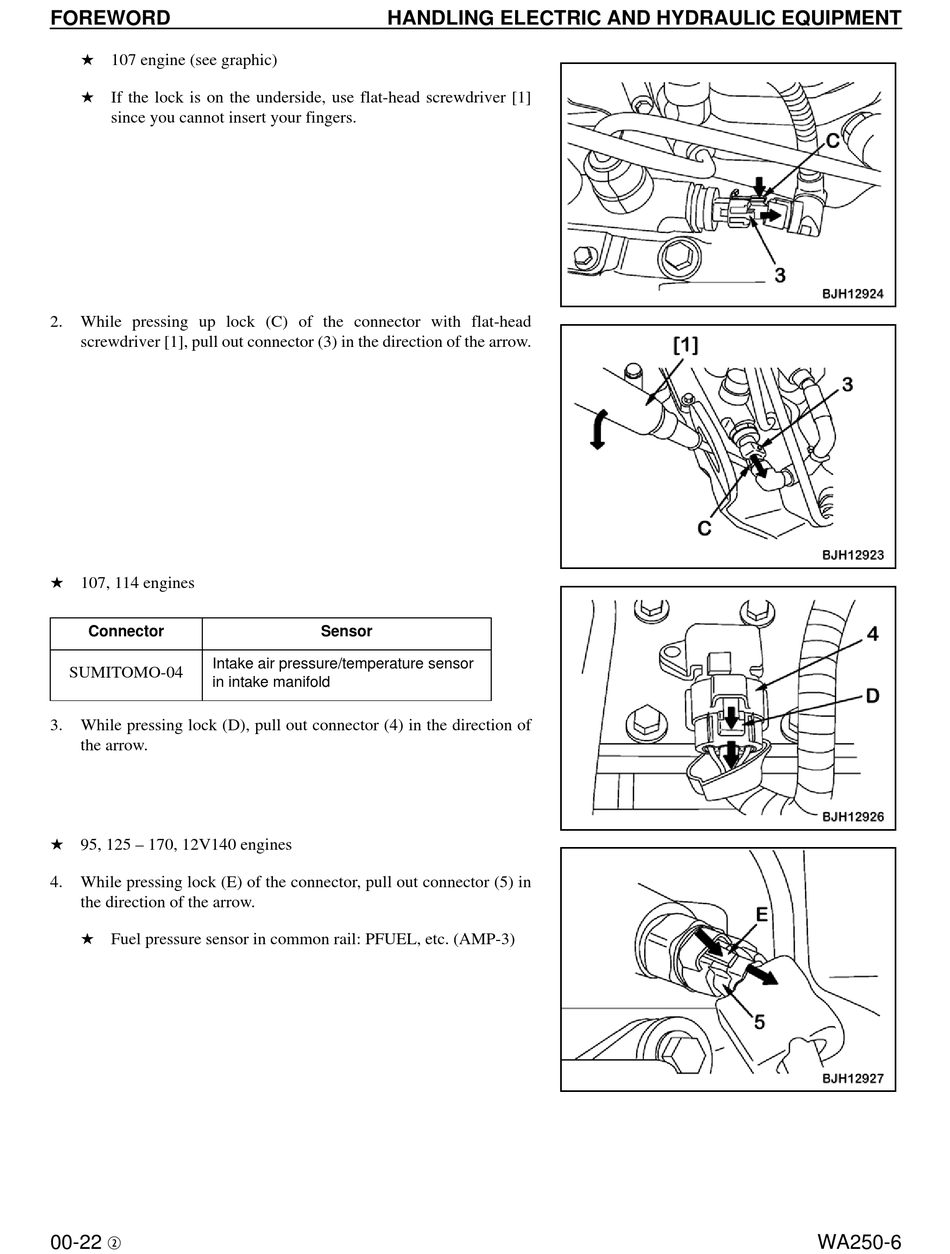

★ 107 engine (see graphic)
★ If the lock is on the underside, use flat-head screwdriver [1]
since you cannot insert your fingers.
2.
While pressing up lock (C) of the connector with flat-head
screwdriver [1], pull out connector (3) in the direction of the arrow.
★ 107, 114 engines
Connector
Intake air pressure/temperature sensor
SUMITOMO-04
in intake manifold
3.
While pressing lock (D), pull out connector (4) in the direction of
the arrow.
★ 95, 125 – 170, 12V140 engines
4.
While pressing lock (E) of the connector, pull out connector (5) in
the direction of the arrow.
★ Fuel pressure sensor in common rail: PFUEL, etc. (AMP-3)
00-22
c
HANDLING ELECTRIC AND HYDRAULIC EQUIPMENT
Sensor
WA250-6
