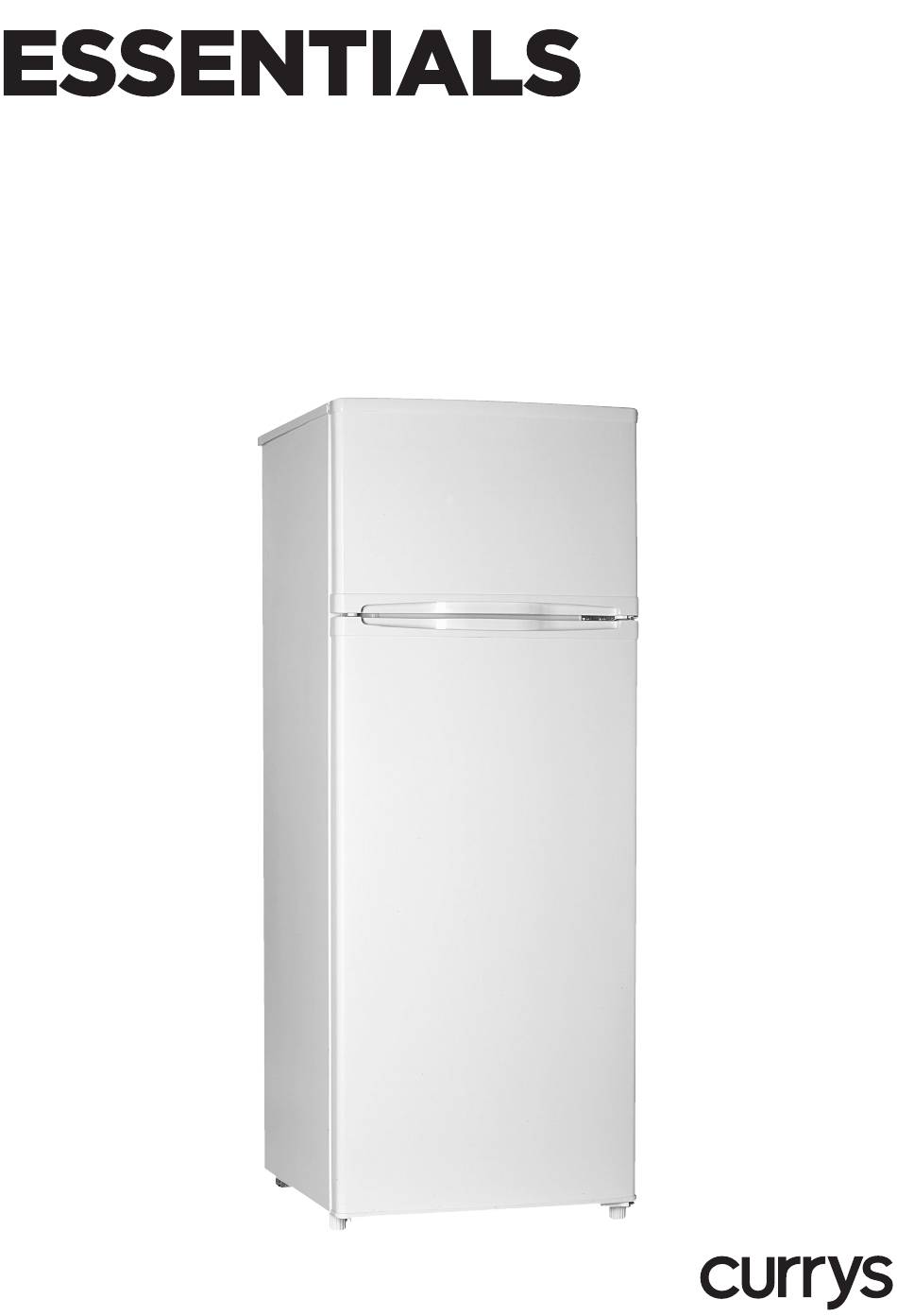

INSTRUCTION MANUAL
FRIDGE FREEZER
C55TW12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Essentials C55TW12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Currys Essentials C55TW12

  • Page 1 INSTRUCTION MANUAL FRIDGE FREEZER C55TW12...
  • Page 3: Table Of Contents

    Contents Safety Warnings ............................. 4 Unpacking ..............................6 Installation ..............................7 Location......................................7 Levelling the Unit..................................7 Installing the Spacers .................................. 7 Free Space Requirements ................................. 7 Reversing the Door Swing ................................. 8 Cleaning Before Use ...................................11 Before Using Your Unit ................................11 Product Overview ............................
  • Page 4: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
  • Page 5 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6: Unpacking

    Thank you for purchasing your new Currys Essentials Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
  • Page 7: Installation

    Installation INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.
  • Page 8: Reversing The Door Swing

    INSTALLATION Reversing the Door Swing Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g.
  • Page 9 INSTALLATION 4. Remove the three screws, then remove the upper hinge that hold the door unscrew in place. Lift the door and place it on a padded surface to prevent it from scratching. 5. Remove the bolt with a screwdriver and 180°...
  • Page 10 INSTALLATION 9. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. Unscrew Screw 10. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position. Screw 11.
  • Page 11: Cleaning Before Use

    INSTALLATION 12. Place the upper door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top screw hinge. 13. Insert the hinge bracket and screw it to the top of the unit.
  • Page 12: Product Overview

    Product Overview Freezer Freezer Door Wire Shelf Thermostat Control Fridge Door Shelves Fridge Glass Shelves Fridge Door Salad Bin Cover Salad Bin Lower Fridge Door Shelf Adjustable Feet...
  • Page 13: Operation

    Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off. 2.
  • Page 14: Tips For Keeping Food In The Unit

    Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf at the bottom of the fridge compartment.
  • Page 15: Defrosting Frozen Food

    Defrosting Frozen Food 1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don’t forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria. 2.
  • Page 16: Cleaning

    Cleaning Defrosting Frost might build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.
  • Page 17: Maintenance

    Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply. 2. Use a cross head screwdriver to remove the screw then remove the lamp cover. 3.
  • Page 18: Specifications

    Specifications Model C55TW12 Appliance Category Category 7 (Refrigerator – Freezer) Overall Dimension (W x D x H) 550 x 580 x 1415 mm Fresh Food Storage Compartment 171L Volume Frozen Food Storage Volume Defrosting Type Manual Defrost Climate Class This appliance is intended to be used at an ambient temperature between 16°C and 32°C. Freezer: ≤...
  • Page 20 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
