Installation, Operation and Maintenance
Pressure Sensor 089
Introduction

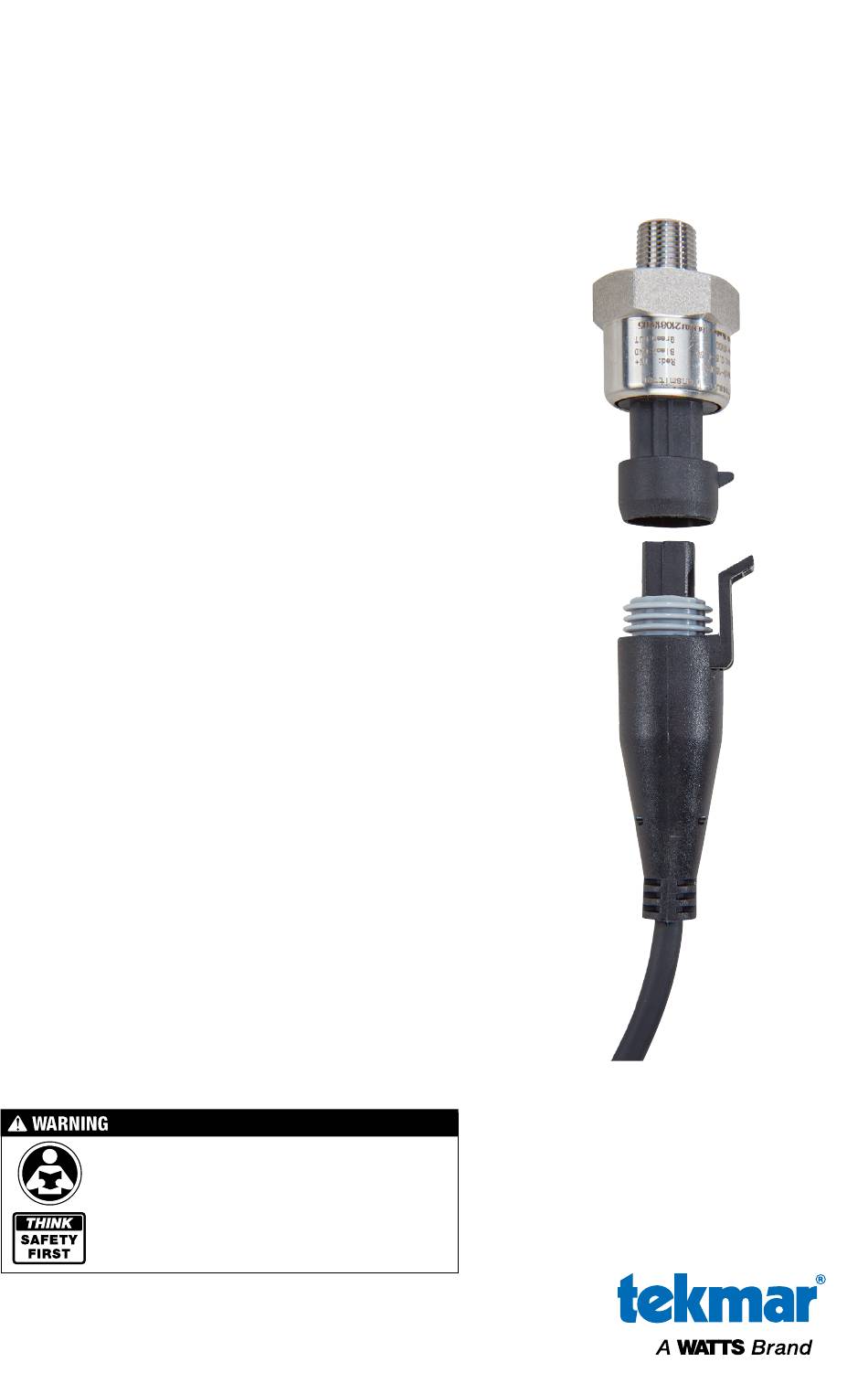

• The Pressure Sensor 089 provides a ratiometric signal to a
controller to measure the pressure of a hydronic system between
0 to 15 psi (0 to 089 kPa). The sensor bulb is designed to
install into a tee using
10 foot (3 m) long cable.
Please read carefully before proceeding with
installation. Your failure to follow any attached
instructions or operating parameters may lead to
the product's failure.
Keep this Manual for future reference.
⁄
"-27 NPT threads and includes a
1
8
IOM-T-089
Advertisement
Table of Contents
Related Manuals for Watts tekmar 089
Summary of Contents for Watts tekmar 089
- Page 1 IOM-T-089 Installation, Operation and Maintenance Pressure Sensor 089 Introduction • The Pressure Sensor 089 provides a ratiometric signal to a controller to measure the pressure of a hydronic system between 0 to 15 psi (0 to 089 kPa). The sensor bulb is designed to install into a tee using ⁄...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ..............3 Installation . -
Page 3: Important Safety Information
Important Safety Information It is your responsibility to ensure that this control is safely installed according to all applicable codes and standards. Watts is not responsible for damages resulting from improper installation and/or maintenance. ® This is a safety-alert symbol. -
Page 4: Installation
Installation Check the Contents Check the contents of this package. If any of the contents listed are missing or damaged, please refer to the Limited Warranty and Product Return Procedure on the back of this brochure and contact your wholesaler or tekmar sales ®... -
Page 5: Testing And Troubleshooting
Testing and Troubleshooting An electrical multimeter capable of measuring between 0 to 5 volts DC is required. Using the electrical meter probes, measure the voltage between the black (power common) and red (reference voltage) wires. The expected voltage is 5.0 V(dc). Using the electrical meter probes, measure the voltage between the black (power common) and green (ratiometric signal input) wires. - Page 6 Notes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
-
Page 7: Technical Data
Technical Data Pressure Sensor 089 Literature Submittal, Installation and Operating Manual Maximum Operating Pressure 0 to 15 psi (0 to 103 kPa) Operating Temperature Range -40 to 257°F (-40 to 125°C) Burst Pressure 450 psi Acceptable Fluid Media Water, glycol solution, steam Dimensions 0.87"... -
Page 8: Limited Warranty And Product Return Procedure
Limited Warranty and Product Return Procedure Limited Warranty The liability of tekmar under this warranty is limited. The Purchaser, by taking receipt of any tekmar product (“Product”), acknowledges the terms of the Limited Warranty in effect at the time of such Product sale and acknowledges that it has read and understands same.
