Quick Guide
Sound Bar
Thank you for purchasing this Yamaha product.

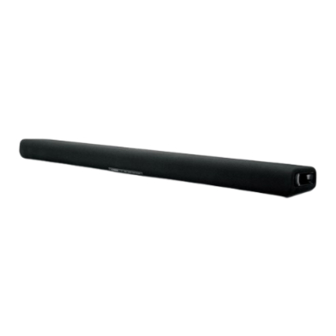

This product is a bar-shaped speaker system that can be used by
connecting it to a TV. Audio content from a Bluetooth® device can also be
played through this product.
• Be sure to read this document and the included Safety Guide to ensure
proper and safe use. Keep these documents readily available for future
reference.
Safety Guide
Be sure to read the Safety Guide first to ensure safe use.
Quick Guide (this document)
This document describes the procedure for enjoying the sound of a
TV.
1 Confirming contents of product package (p. 2)
2 Preparing the remote control (p. 3)
3 Installing the product (p. 3)
4 Connecting to a TV (p. 4)
5 Connecting to power (p. 5)
6 Playing TV sound through the sound bar (p. 5)
Adjusting the sound to your preference (p. 7)
Listening to audio from a Bluetooth® device (p. 8)
Controlling the sound bar with the smartphone app (p. 8)
User Guide
More detailed information is described.
https://manual.yamaha.com/av/23/srb30a/
EN
1
En
Advertisement
Related Manuals for Yamaha SR-B30A
Summary of Contents for Yamaha SR-B30A
- Page 1 Thank you for purchasing this Yamaha product. This product is a bar-shaped speaker system that can be used by connecting it to a TV. Audio content from a Bluetooth® device can also be played through this product. • Be sure to read this document and the included Safety Guide to ensure proper and safe use.
- Page 2 This product includes the following main devices and accessories. Take out all items from the box and make sure that all items are present. Main device Sound bar (SR-B30A) Accessories Use when mounting the sound bar on a wall.
-
Page 3: Preparing The Remote Control
Preparing the remote Installing the product control Install the sound bar as shown in the following illustration. A Lithium battery (CR2025) has already been inserted into the remote control. Pull out the insulation sheet as follows so as to use the remote control. - Page 4 Connecting to a TV Connect to a TV using the HDMI cable (included) Connect to an HDMI input jack compatible with Audio Return Channel (labeled as “eARC” or “ARC”) on the TV using the included HDMI cable. HDMI input jack (compatible with eARC/ARC) Sound bar (rear) HDMI IN...
-
Page 5: Connecting To Power
Connecting to power Playing TV sound through the sound bar After connecting the sound bar to the TV, connect the sound bar to power as follows: Power Sound bar (rear) VOLUME (+/−) Power cord (included) Remote control Turn on the TV. To an AC wall outlet When the the HDMI Control function of the TV is enabled (p. - Page 6 HDMI Control function When the sound bar is connected to the HDMI input jack compatible with Audio Return Channel (labeled as “eARC” or “ARC”) on a TV via an HDMI cable, control signals are transmitted from the TV to the sound bar. This will enable you to use the HDMI Control function to control the sound bar using the TV’s remote control.
- Page 7 Adjusting the sound to your preference GAME This sound mode provides surround playback that is best suited for video games. Accurate localization of individual sound effects provides a highly immersive gaming experience. b Playing back human voices clearly (CLEAR VOICE) The human voices within the audio can be heard more easily when the Clear Voice function is enabled.
-
Page 8: Listening To Audio From A Bluetooth® Device
Bluetooth device. The Sound Bar Remote app uses location information from the Android device only to detect the sound bar. The acquired location information will Select “Yamaha SR-B30A” or “SR-B30A” within the not be used for any other purpose. list.
