Progres Agronic 4500 Replacing Manual

SUPPLIED MATERIAL
BOX FORMAT ASSEMBLY
1
Disconnect power from the
Agrónic 4000.
4 Check whether the unit
has any telephone type cables
connected to the keyboard. If it
does, disconnect them from the
plate because they are unusable.
Agrónic 4500
Replacing the front of the Agrónic
4000 to Agrónic 4500 for box model

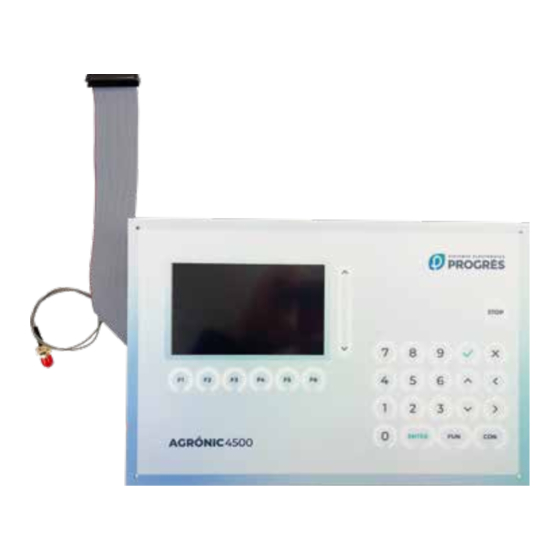

Front Agrónic 4500 box model
2
Remove the four screws.
5 If the Agrónic 4000 unit has a
GPRS modem option, remove the
modem, the antenna and also the
power cable that is connected to
the relay or analog I/O board. (The
Agrónic 4500 is supplied fitted with
its modem and integrated eSIM
card).
Front Agrónic 4500 box model:
- Agrónic 4500 micro plate
- Agrónic 4500 keyboard
- Integrated GPRS/4G or WiFi modem
- Integrated eSIM card
- Antenna
3
Lift the keyboard.
6
If the Agrónic 4500 unit has
an analog I/O option, remove the
option by removing the three screws,
so that the front can be changed.
1
Manual - Agrónic 4500 ·
