Binks STEADI-GRIP 80-295 Service Manual

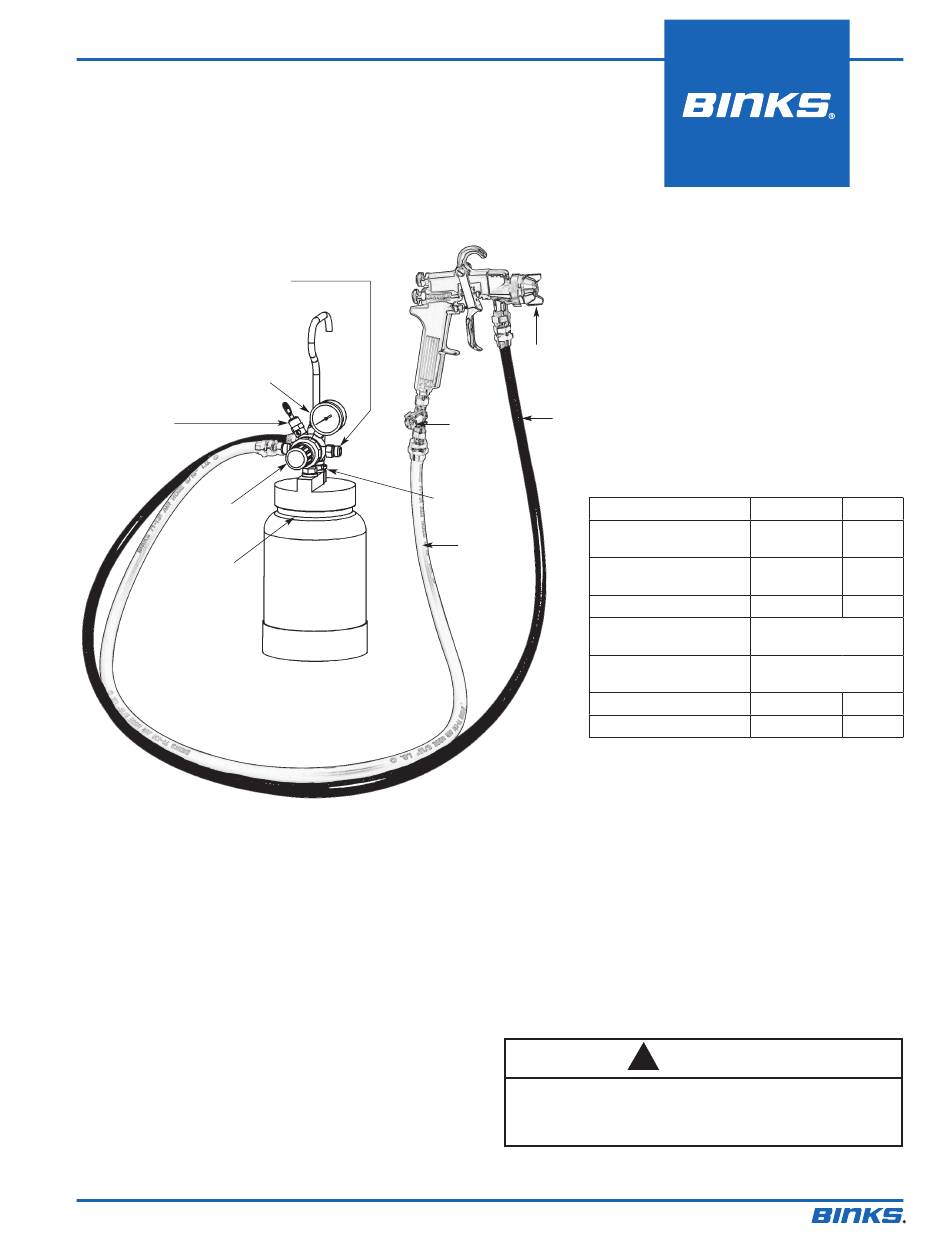

SERVICE MANUAL

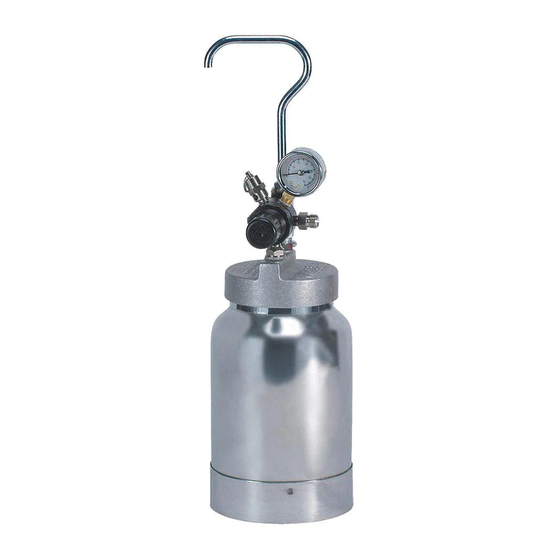

BINKS MODEL 80-295
(2 QT.) "STEADI-GRIP"
PRESSURE CONTAINER
CleanAir
centrifugal
air filter unit
Fluid Pressure
Gauge
Safety Valve
(Do not tamper with
or readjust)
Fluid Pressure
Regulator
Lubricate
Cup Threads
OPERATION AND CLEANING
External Mix Air Nozzle Application
Operation:
1. Connect hose as shown in diagram on front page.
2. Fill cup with strained fluid mixed in accordance with
manufacturer's recommendations on label of container.
3. Fasten cover securely.
4. Close air adjusting valve by turning clockwise.
5. Set air pressure at CleanAir filter unit to between 35 and 80 PSI,
depending upon atomization desired.
6. Set regulator on pressure cup to approximately 10 PSI for
enamels; 5 PSI for lacquers. (Turn knob clockwise to increase
pressure; to reduce pressure, turn knob counter-clockwise. Always
release air in cup by momentarily opening air release valve on
cover when attempting to reduce pressure.)
7. Open air adjusting valve.
8. With trigger fully pulled back, make several fast spray strokes
against a flat surface. After adjustment of pressure, proper
atomization will be indicated by an even distribution of finely
divided paint particles.
77-2823-R7.4 (6/2016)
Air Nozzle
(not included)
Fluid Hose
Ai r
(not included)
Adjusting
Va lve
(not included)
Air Release
MAX. CUP PRESSURE
Va lve
Air Hose
WITH AUXILIARY HANDLE
(not included)
W/O AUXILIARY HANDLE
AIR INLET & OUTLET
FLUID INLET & OUTLET
IMPORTANT
The most efficient atomization air pressure is the lowest air pressure
that will properly atomize the paint. This will minimize the overspray,
deposit more paint on the surface and eliminate paint waste.
If a faster coverage is necessary, first increase fluid pressure and then
adjust atomization air pressure. If a slower coverage is more
desirable, first reduce the fluid pressure and then adjust atomization
air pressure. Always attempt to maintain the lowest pressures for
maximum efficiency.
For ease of removing cup cover and to prevent leakage, always
thoroughly grease the threads on the cup.
If the cup is accidentally tipped over or held at too great an
angle, fluid will load up the underside of cup cover, and leak
into regulator. In the event this happens, clean immediately!
1 / 4
SPECIFICATIONS
50 psig
OVERALL HEIGHT
16-15/16 in.
OVERALL HEIGHT
13 in.
BASE DIAMETER 5-1/4 in.
1/4 NPS (m)
CONNECTION
3/8 NPS (m)
CONNECTION
FLUID CAPACITY 2 qts. (US)
WEIGHT 3 lb. 3 oz.
!
CAUTION
EN
3.5 bar
430 mm
330 mm
133 mm
1.9 ltr
1.46 kg
(continued on page 3)
