SERVICE MANUAL
(FOR SMALL & FULL SIZE GUNS)

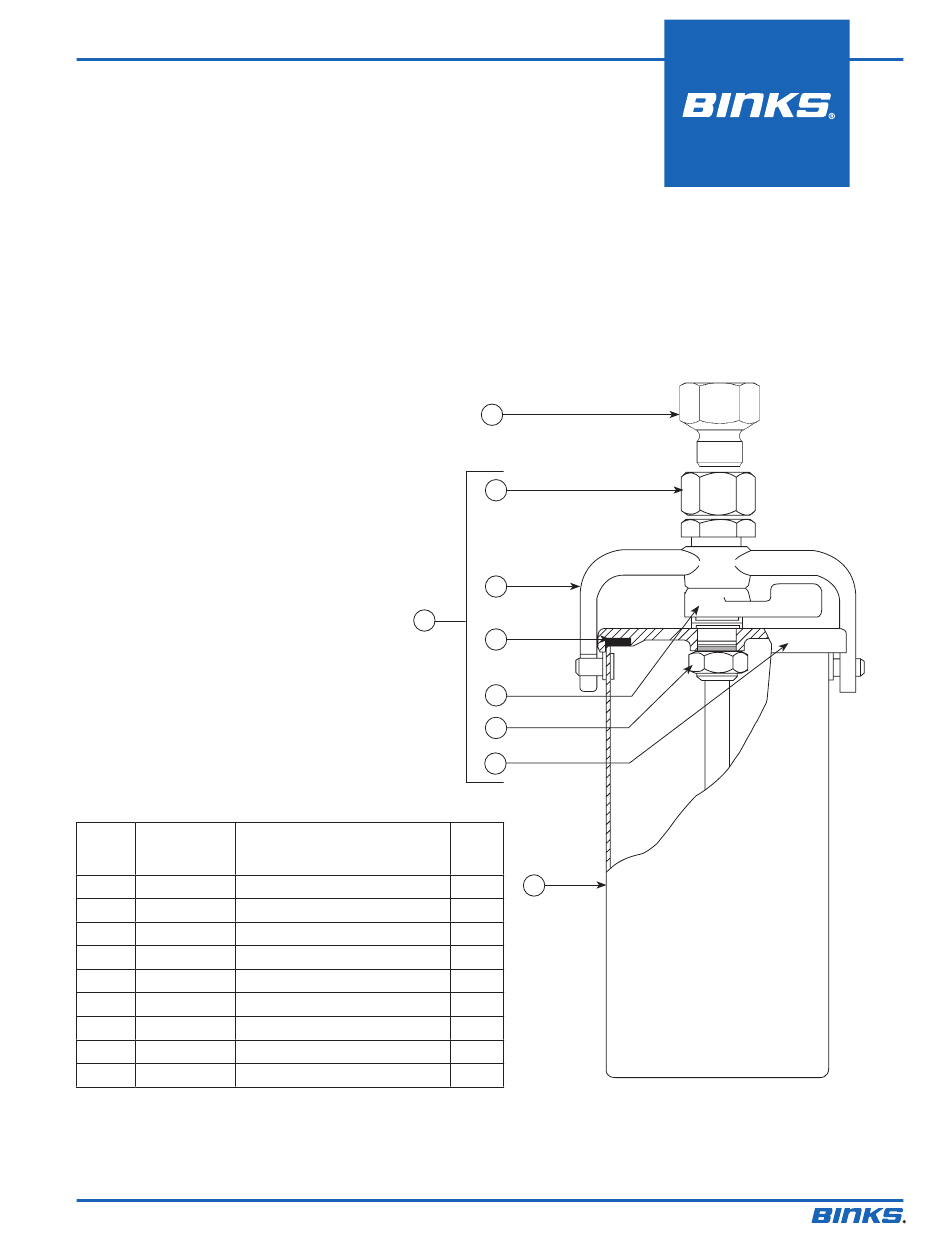

PARTS LIST
Ref.
Replacement
No.
Part No.
1
55-23
CUP COVER
2
55-24
YOKE
3
55-29
CENTER POST NUT
4
55-30
GASKET
5
55-37
LEVER
6
55-444
8 OUNCE CUP (ALUMINUM)
7
55-472
CENTER POST
8
81-440
CUP ATTACHMENT ASSEMBLY
9
AD-404*
ADAPTER, 1/4 NPS(m) x 3/8
*Required when adapting to 3/8 NPS threads.
77-1261-R16.3 (3/2017)
BINKS MODEL 81-540
8 OZ. SIPHON CUP
8
Description
Req'd.
9
7
2
4
5
3
1
Ind.
Parts
6
1
1
1
1
1
1
1
1
1
1 / 4
EN
Advertisement
Related Manuals for Binks 81-540
Summary of Contents for Binks 81-540
- Page 1 SERVICE MANUAL BINKS MODEL 81-540 8 OZ. SIPHON CUP (FOR SMALL & FULL SIZE GUNS) PARTS LIST Ind. Ref. Replacement Description Parts Part No. Req'd. 55-23 CUP COVER 55-24 YOKE 55-29 CENTER POST NUT 55-30 GASKET 55-37 LEVER 55-444 8 OUNCE CUP (ALUMINUM)
- Page 2 IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PROVIDE THIS INFORMATION TO THE OPERATOR OF THE EQUIPMENT. FOR FURTHER SAFETY INFORMATION REGARDING THIS EQUIPMENT, SEE THE GENERAL EQUIPMENT SAFETY BOOKLET (77-5300). Binks reserves the right to modify equipment specification without prior notice. 2 / 4...
- Page 3 NOTES 77-1261-R16.3 (3/2017) 3 / 4...
- Page 4 WARRANTY POLICY Binks products are covered by Carlisle Fluid Technologies one year materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. For specific warranty information please contact the closest Carlisle Fluid Technologies location listed below.
