Predator PO5-605s User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Table of Contents -

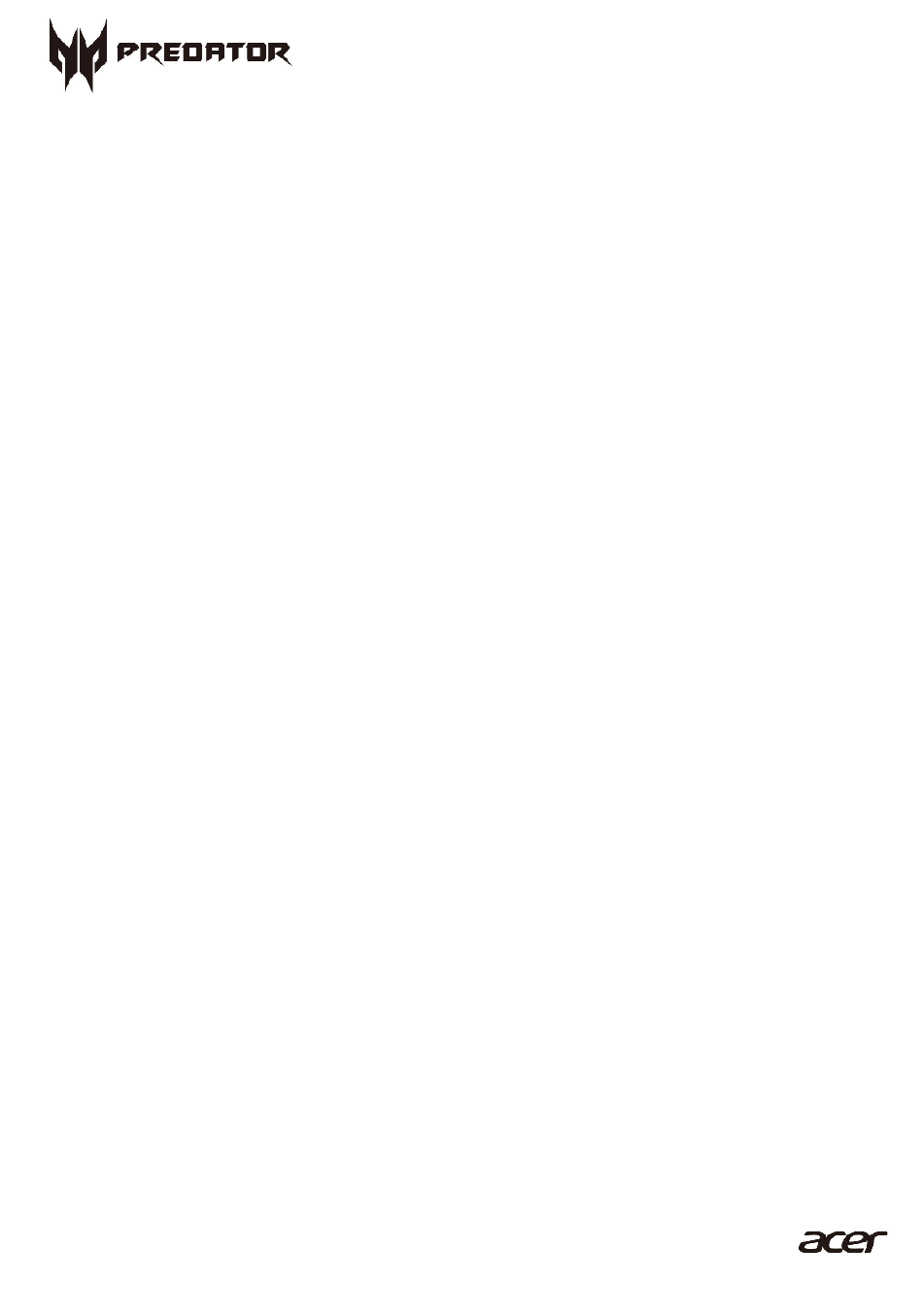

1
Predator
PO5-605s
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Predator PO5-605s

Summary of Contents for Predator PO5-605s

  • Page 1 Table of Contents - Predator PO5-605s User’s Guide...
  • Page 2 © 2019. All Rights Reserved. Desktop Computer Covers: Tower models This revision: June 2019 V1.1 Important This manual contains proprietary information that is protected by copyright laws. The information contained in this manual is subject to change without notice. Images provided herein are for reference only and may contain information or features that do not apply to your computer.

  • Page 3: Table Of Contents

    Table of Contents - Table of Contents Installing a memory module (for Water UPGRADING YOUR COMPUTER ....5 Cooler)............20 Installation precautions ......5 Removing a memory module (for Air ESD precautions .......... 5 Cooler)............21 Required tools..........5 Installing a memory module (for Air Pre-installation instructions ....
  • Page 4 - Upgrading your Computer Upgrading your Computer In this section, you will find: • Instructions on how to replace a hardware component...

  • Page 5: Upgrading Your Computer

    Upgrading your Computer - 1. UPGRADING YOUR COMPUTER Installation precautions Before you install any computer component, we recommend that you read the following sections. These sections contain important ESD precautions along with pre-installation and post-installation instructions. ESD precautions Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components.

  • Page 6: Pre-Installation Instructions

    - Upgrading your Computer Pre-installation instructions Always observe the following before you install any component: 1. Make sure that the ODD and card reader slot is empty. 2. Turn off the power to the computer and all peripherals. 3. Unplug the power cord from the computer. 4.

  • Page 7: System Upgrade

    Upgrading your Computer - System Upgrade Removing the left side system cover 1. Before you proceed, make sure that you have turned off your computer and all peripherals connected to it. Read the Pre- installation instructions on page 6. 2. Remove the two screws that secure the system cover to the computer.

  • Page 8: Installing The Left Side System Cover

    - Upgrading your Computer Installing the left side system cover 1. Align the cover to the sides of the computer and slide the cover toward the front of the computer. 2. Secure the cover with two screws. 3. Observe the Post-installation instructions on page 6.

  • Page 9: Removing The Right Side System Cover

    Upgrading your Computer - Removing the right side system cover 1. Before you proceed, make sure that you have turned off your computer and all peripherals connected to it. Read the Pre- installation instructions on page 6. 2. Remove the two screws that secure the system cover to the computer.

  • Page 10: Installing The Right Side System Cover

    - Upgrading your Computer Installing the right side system cover 1. Align the cover to the sides of the computer and slide the cover toward the front of the computer. 2. Secure the cover with two screws. 3. Observe the Post-installation instructions on page 6.

  • Page 11: Hard Drives

    Upgrading your Computer - 11 Hard drives The computer supports installation of one 3.5-inch SATA hard drives in the internal HDD cage. Removing the 3.5-inch hard drives 1. Perform Pre-installation instructions on page 6. 2. Remove the two screws that the Mask cover. 3.
  • Page 12 - Upgrading your Computer 4. Remove the four screws that the Power Cover. 5. Take off the Power Cover.
  • Page 13 Upgrading your Computer - 13 6. Disconnect the power and data cables from the hard drives. 7. Pull green rack out from HDD cage and take it off.
  • Page 14 - Upgrading your Computer 8. Remove HDD from green rack.

  • Page 15: Installing The 3.5-Inch Hard Drives

    Upgrading your Computer - 15 Installing the 3.5-inch hard drives 1. Remove the new hard drive from their packaging. 2. Insert the new hard drive into the green rack. 3. Insert green rack into HDD cage.
  • Page 16 - Upgrading your Computer 4. Connect the power and data cables to the hard drive. 5. Insert the Power Cover and fix it.
  • Page 17 Upgrading your Computer - 17 6. Insert the Mask Cover and fix it. 7. Observe the Post-installation instructions on page 6...

  • Page 18: Memory

    - Upgrading your Computer Memory The computer has four DDR4 U-DIMM slots that support up to 64 GB maximum system memory. Memory configuration guidelines DIMM4 DIMM2 DIMM3 DIMM1  To ensure data integrity, use only Acer-approved DDR4 2400 MHz or DDR4 2666 MHz type memory modules. ...

  • Page 19: Removing A Memory Module (For Water Cooler)

    Upgrading your Computer - 19 Removing a memory module (for Water Cooler) 1. Perform Pre-installation instructions on page 6. 2. Disconnect the thermal fan cable from the mainboard. 3. Press outward the holding clips on both sides of the DIMM slot outward to release the memory module (1). 4.

  • Page 20: Installing A Memory Module (For Water Cooler)

    - Upgrading your Computer Installing a memory module (for Water Cooler) Note DIMM slots on the mainboard must be installed only in certain configurations. Numbers next to DIMM slots correspond to installation sequence. Be sure to install the memory module in DIMM1 slot followed by DIMM2 slot. 1.

  • Page 21: Removing A Memory Module (For Air Cooler)

    Upgrading your Computer - 21 Removing a memory module (for Air Cooler) 6. Perform Pre-installation instructions on page 6. 7. Disconnect the thermal fan cable from the mainboard. 8. Use a long screw driver to loosen the four captive screws securing the thermal module to the mainboard.

  • Page 22: Press Outward The Holding Clips On Both Sides Of The Dimm Slot Outward To Release The Memory Module

    - Upgrading your Computer 9. Remove the thermal module from the chassis. 10. Press outward the holding clips on both sides of the DIMM slot outward to release the memory module (1). 11. Gently pull the memory module upward to remove it from the DIMM slot (2).

  • Page 23: Installing A Memory Module (For Air Cooler)

    Upgrading your Computer - 23 Installing a memory module (for Air Cooler) Note DIMM slots on the mainboard must be installed only in certain configurations. Numbers next to DIMM slots correspond to installation sequence. Be sure to install the memory module in DIMM1 slot followed by DIMM2 slot. 7.
  • Page 24 - Upgrading your Computer 12. Place the thermal module into the chassis. 13. Use a long screw driver to tighten the four captive screws and secure the thermal module to the mainboard.
  • Page 25 Upgrading your Computer - 25 14. Connect the thermal fan cable to the mainboard. 15. Observe the Post-installation instructions on page 6.

  • Page 26: Graphic Board

    - Upgrading your Computer Graphic board The computer contains one or two Graphic boards installed in the PCIe x16 slots. The detail configuration will be differed by different models. Removing the Graphic board 1. Perform Pre-installation instructions on page 6. 2.
  • Page 27 Upgrading your Computer - 27 4. Release the latch that secures the graphic board to the mainboard. 5. Detach the Graphic board from the PCIe x16 slot. 6. Remove the screw that secure the Graphic boards to the VGA Holder Bracket.

  • Page 28: Installing The Graphic Board

    - Upgrading your Computer Installing the Graphic board 1. Remove the new graphic board from its packaging. 2. Fix Graphic boards on VGA Holder Bracket with three screw 3. Insert the Graphic boards into the PCIe x16 slot and press it down until it latches into place. [Note] For replace/upgrade graphic board, please check the specification of graphic board &...
  • Page 29 Upgrading your Computer - 29 4. Secure the Graphic board with screws. 5. Connect the power cables to the Graphic boards. 6. Observe the Post-installation instructions on page 6...

  • Page 30: M.2 Ssd Module

    - Upgrading your Computer M.2 SSD module The computer contains one M.2 SSD module installed in the M.2 PCIe slot. Removing the M.2 SSD module 1. Perform Pre-installation instructions on page 6. 2. Remove the Graphic board. See Removing the Graphic board.

  • Page 31: Installing The M.2 Ssd Module

    Upgrading your Computer - 31 Installing the M.2 SSD module 1. Remove the new M.2 SSD module from its packaging. 2. Insert the M.2 SSD module into its slot in the mainboard. 3. Secure the M.2 SSD module and mainboard with screws. 4.

  • Page 32: Odd Drives

    - Upgrading your Computer ODD drives The computer supports installation of one ODD drives. Open ODD door. 1. Perform Pre-installation instructions on page 6. 2. Push triangle icon for opening.
  • Page 33 PredatorSense - 33 PredatorSense In this section, you will find: • Introduction to the PredatorSense utility • How to use PredatorSense...

  • Page 34: Predatorsense

    - PredatorSense 2 PREDATORSENSE PredatorSense (DT) is an Acer proprietary utility to enhance the user experience of Gaming products on Microsoft Windows 10. The central idea of this utility is to provide a user interface to easily control fan speed , OverClocking and also display system information.
  • Page 35 PredatorSense - 35 Alternatively, you can double-click the PredatorSense desktop shortcut to run the application. • Lighting Water Cooler Air Cooler...
  • Page 36 - PredatorSense • Overclocking Water Cooler Air Cooler...
  • Page 37 PredatorSense - 37 • Fan Control Water Cooler Air Cooler...
  • Page 38 - PredatorSense Category Description Provide overview of all features with quick adjustment  CPU/GPU/System health information Home  Fan speed control (Auto, Gaming and Silence) Provide control and adjustment for the LEDs on Front Face.  On/Off  Color: 9 basic colors (last one is rainbow color), 9 recent ...
