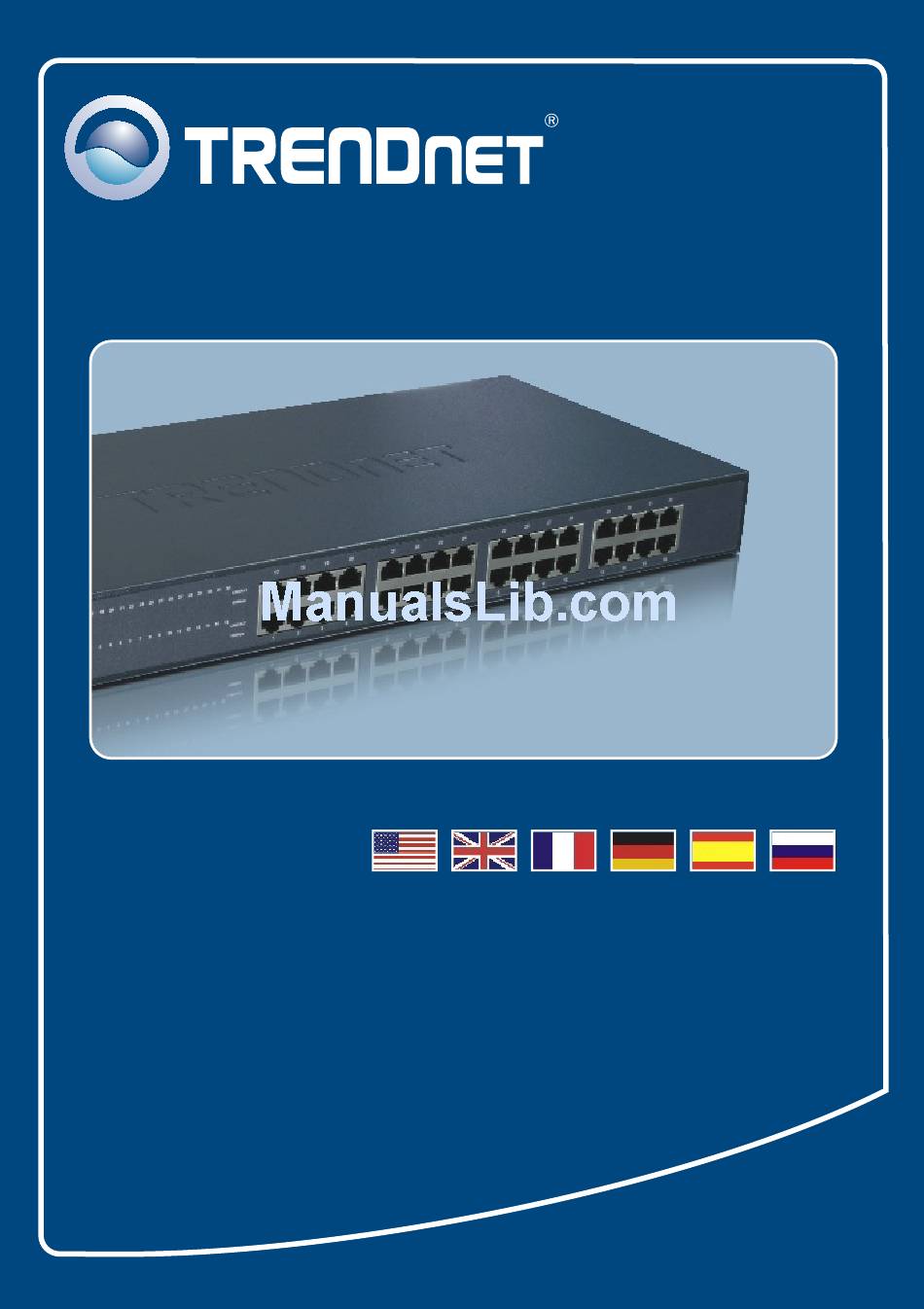

- Page 1 Quick Installation Guide TE100-S32plus...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Technical Specifications ... Troubleshooting ... Version 12.20.2006... -
Page 3: English
An environment that is free from strong electromagnetic field generators (such as motors), vibration, dust and direct exposure to sunlight Leave at least 10 cm of space at the front and rear of the Switch for ventilation EIA Standard 19-inch rack or sturdy level surface that can support the... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the Power Cord to the TE100-S32plus and then to a power outlet. 2. Connect a CAT-5 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S32plus. English... -
Page 5: Rack Mount
Rack Mount The Switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment. 3. Attach the mounting brackets to both sides of the switch and secure them with the provided screws. -
Page 6: Technical Specifications
Technical Specifications Standards Protocol Data Transfer Rates Topology Network Cables Number of Ports Transmission Method Packet Filtering/ Forwarding Rate MAC Address Learning RAM Buffer Filtering Address Table General IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full-Duplex Flow Control CSMA/CD Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex) - Page 7 Physical and Environmental Power Power Consumption Temperature Humidity Dimensions (L x W x H) Weight Certification 100-240VAC. 50/60Hz. Internal Power Supply 40 Watts max. Operating: 0 ~ 40 C, Storage: -10 ~ 70 C ° ° 10% ~ 90% 440 x 200 x 44 mm (17.3 x 7.9 x 1.73 in.) 2.66 kg (5.86 lbs) FCC, CE °...
-
Page 8: Troubleshooting
Troubleshooting After connecting the Switch to a power outlet, the LEDs do not turn on. Check the connection of the external power adapter to the TE100-S32plus and the power outlet. Also check that the power outlet is receiving power. When I connect a computer to the Switch's port, the LINK/ACT LED turns on, but the 100Mbps LED remains off. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
