Photocell Installation (Optional)
1.

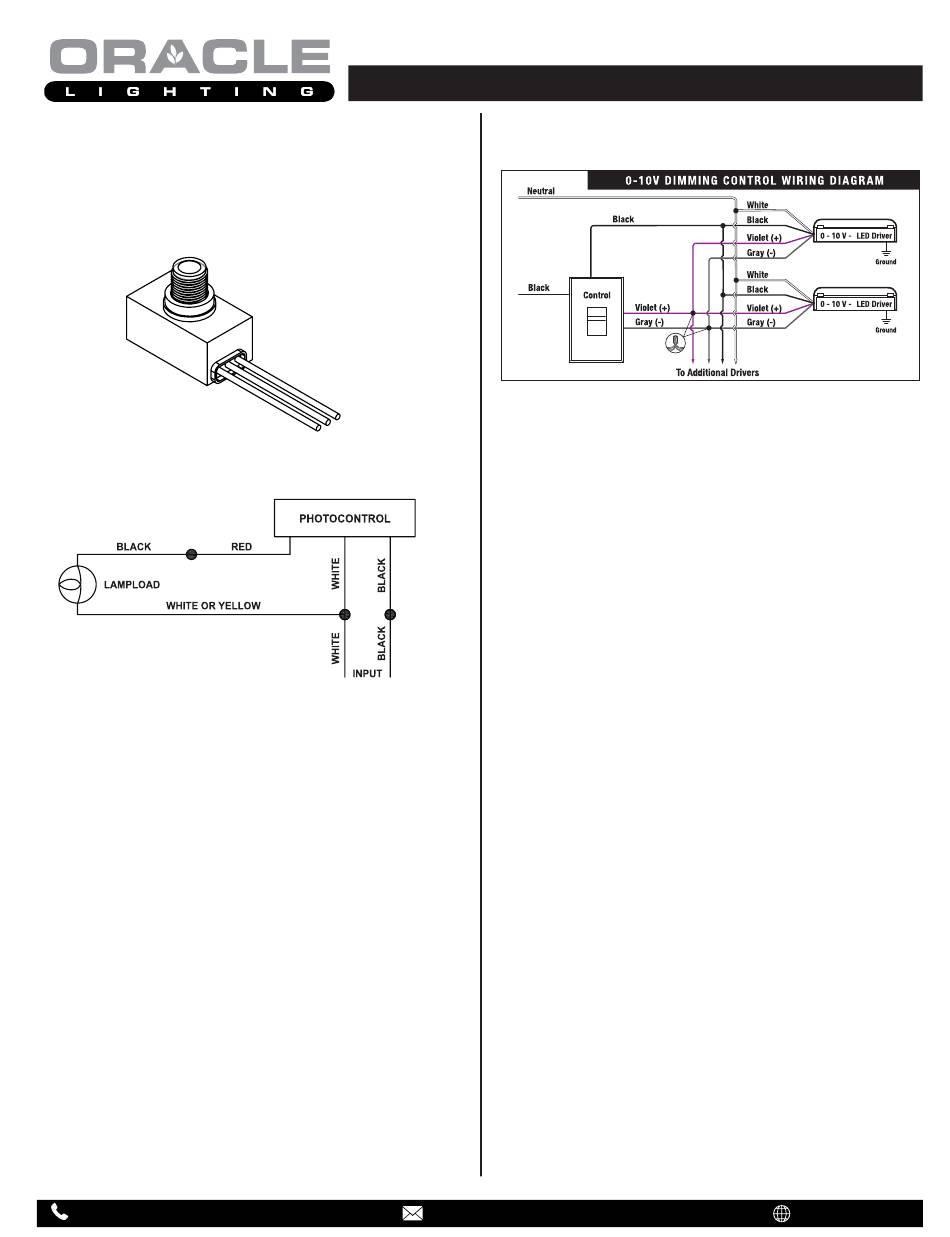

Install photocell and wire as per diagram.
2.
Use photocell rated for your supply voltage.
Elite Part#:PC120-277
Wiring Diagram
Troubleshooting
1.
Check that the line voltage at the fixture is correct. Refer to wiring
directions.
2.
Is the fixture grounded properly?.
3.
Be sure the photocell, if used, is functioning properly. To check bypass it.
323-888-1973
OWP-FC-211-LED
LED Full Cut-Off Wall Pack
Wiring Diagram
For 0-10V dimming version, please check wiring diagram below..
techsupport@iuseelite.com
INSTRUCTIONS
PAGE 2 OF 2
O.R.-Revision A: 3/13/20
