ORACLE LIGHTING OWP-FC-211-LED Instructions

SAFETY INSTRUCTIONS

1. Equipment should be mounted securely in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel. 2. Do not mount near gas or electric heaters. 3. Cap unused wires with enclosed wire nuts or other approved
method. 4. Do not use this equipment for anything other than its intended use. 5. The use of accessory equipment not recommended
by the manufacturer will void product listing and warranty and may cause an unsafe condition. 6. Use caution when servicing batteries. 7. Any
service on this equipment should be performed by qualified personnel only. 8. Make sure wire terminations are secure and leads are properly
tucked in appropriate wire channels. CONSULT A QUALIFIED ELECTRICIAN BEFORE INSTALLING
Caution:
Disconnect AC power before servicing and installation.
All electrical connections must be in accordance with
NEC/CEC or your local code.

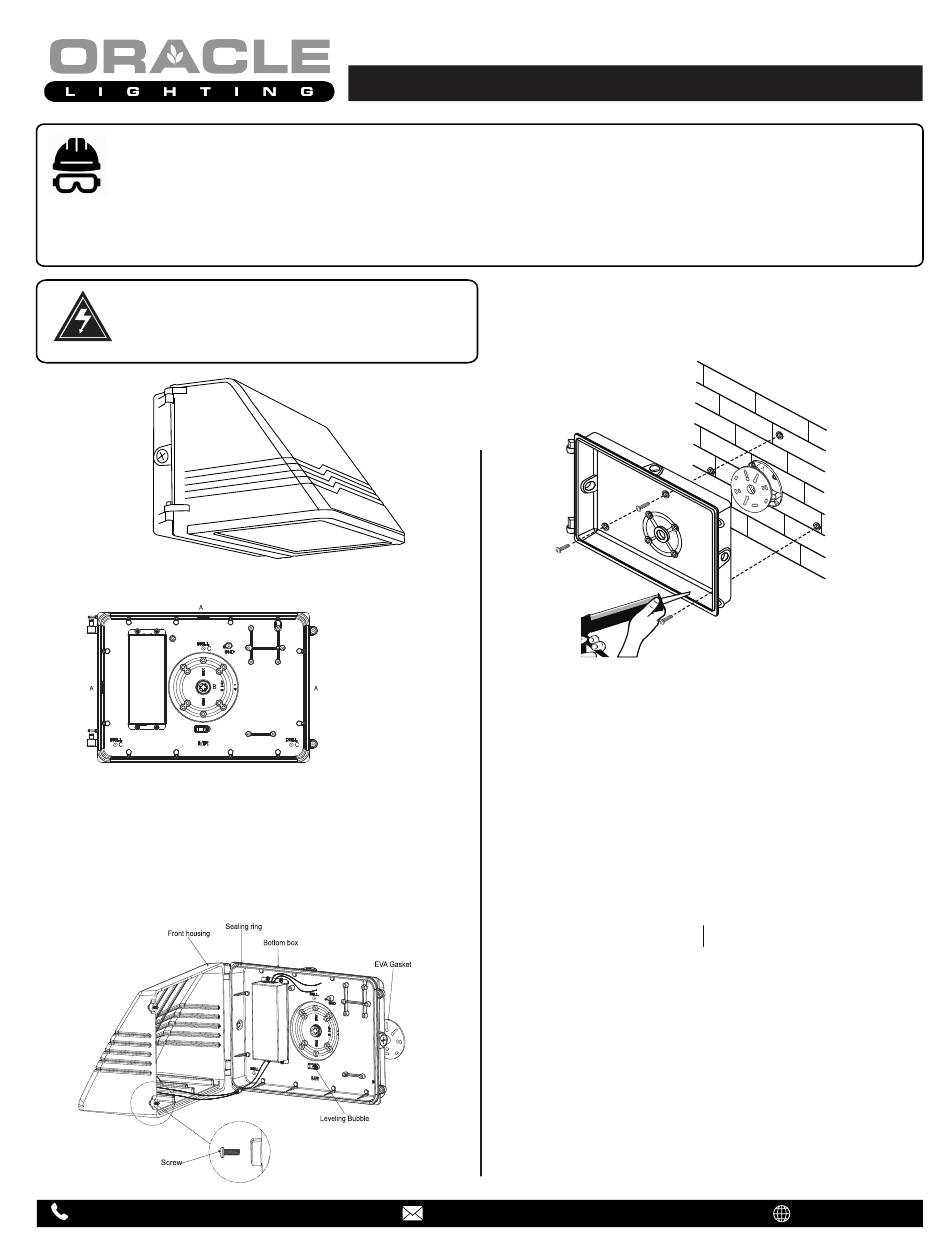

Junction Box Mounting

1.
Loosen screws and remove the front lens set carefully from the back
plate.
323-888-1973
OWP-FC-211-LED
LED Full Cut-Off Wall Pack
2.
Remove/drill the knockout cap (B) for wiring. Attach the back plate on
the wall, use the supplied gaskets for a weather tight seal. Use
water proof caulk for covering screws (C).
A: 1/2" NPS tapped holes
B: 1/2" dia. knockout
3.
C: 5/16" dia. Screw hole
Connect the wiring.
4.
Replace the lens set on the hinges, make connections and close the lens
set then tighten the screws

Conduit Installation

1.
Loosen screws and remove the front lens set carefully from the back
plate.
2.
Remove the knockout cap (A) from where you intend to feed conduit.
Attach the back plate on the wall, use the supplied gaskets for a
weather tight seal.
3.
Connect the wiring.
4.
Replace the lens set on the hinges, make connections and close the lens
set then tighten the screws
techsupport@iuseelite.com
INSTRUCTIONS
PAGE 1 OF 2
.
.
O.R.-Revision A: 3/13/20
