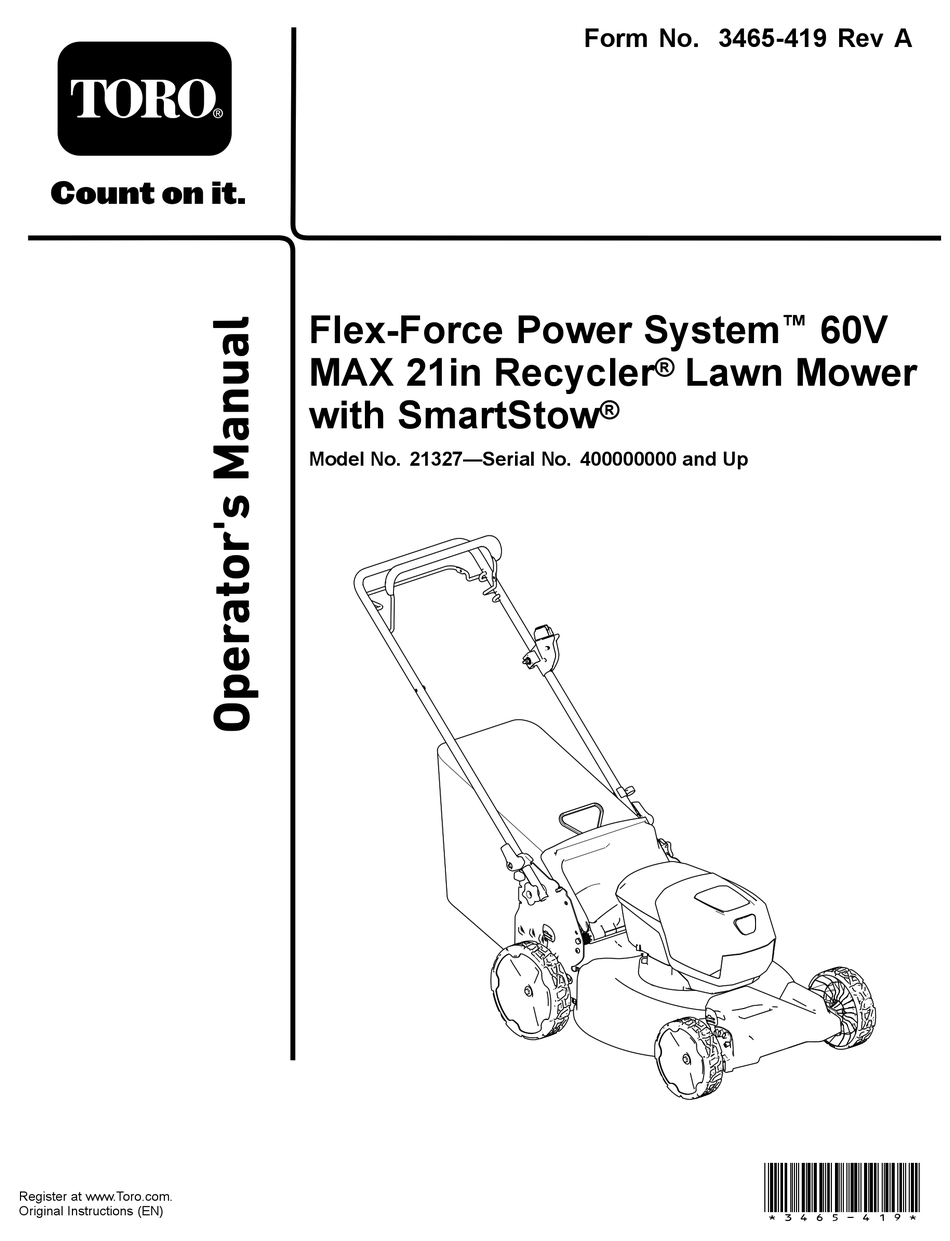

- Page 1 Form No. 3465-419 Rev A Flex-Force Power System ™ MAX 21in Recycler ® Lawn Mower with SmartStow ® Model No. 21327—Serial No. 400000000 and Up *3465-419* Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Safety-Alert Symbol
Whenever you need service, genuine Toro parts, or For assistance, please see additional information, contact an Authorized Service www.Toro.com/support Dealer or Toro Customer Service and have the model for instructional videos and serial numbers of your product ready. Figure 1... -
Page 3: Table Of Contents
Replace any damaged or unreadable labels. Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire. Plugging the battery charger into an outlet that is... - Page 4 Charge the battery pack with only the battery the influence of alcohol or drugs. charger specified by Toro. A charger suitable for Do not use a battery-operated lawn mower in 1 type of battery pack may create a risk of fire rain.
- Page 5 Replace the battery pack with a genuine Sharpen a dull blade on both edges to maintain Toro battery pack only; using another type of balance. Clean the blade and ensure that it is battery pack may cause a fire or risk of injury.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal137-9461 137-9461 1. Battery charge status decal94-8072 94-8072 decal133-8054 133-8054 Model 88660 decal140-3811... - Page 7 Model 88610 decal144-3094 144-3094 1. The battery pack is 3. The battery pack is over charging. or under the appropriate temperature range. 2. The battery pack is fully 4. Battery pack charging fault charged. decal144-3175 144-3175 1. Read the Operator’s 3.
- Page 8 decal144-3096 144-3096...
-
Page 9: Setup
Setup Important: The battery pack is not fully charged when it is purchased. Before using the machine for the first time, refer to Charging the Battery Pack (page 16). Assembling the Grass Bag No Parts Required Procedure g407949 Figure 3 Unfolding the Handle No Parts Required Procedure... - Page 10 Ensure that the cables are routed to the outside of the handle (D of Figure Engage the handle locks until the pin clicks in place to lock the handle into the operating position (E of Figure Note: You may adjust the height of the handle by changing the hole for the handle lock. Secure the knobs to the handle bolts to secure the handle (F of Figure g413061...
-
Page 11: Product Overview
Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. -
Page 12: Before Operation
Operation Note: Determine the left and right sides of the machine from the normal operating position. Before Operation Installing the Battery Pack Important: Use the battery pack only in temperatures that are within the appropriate range; refer Specifications (page 11). Make sure that the vents on the battery are clear of any dust and debris. -
Page 13: Adjusting The Cutting Height
g456020 Figure 8 1. Low handle height 2. High handle height Adjusting the Cutting Height DANGER Adjusting the height-of-cut could bring your hands into contact with a moving blade and result in serious injury. • Shut off the motor, remove the battery, and wait for all moving parts to stop before adjusting the cutting height. -
Page 14: During Operation
During Operation Starting the Machine Ensure that the battery pack is charged and installed in the machine; refer to Installing the Battery Pack (page 12). Insert the electric-start button into the electric starter switch (A of Figure 10). Squeeze the blade-control bar and hold it to the handle (B of Figure 10). -
Page 15: Bagging The Clippings
Figure 13 from the machine, and examine the machine for damage. • For best performance, install a new Toro blade before the cutting season begins or when necessary. -
Page 16: After Operation
Cutting Grass After Operation • Cut only about a third of the grass blade at a time. For improved quality of cut, runtime, and bagging, Charging the Battery Pack cut grass at a higher height of cut. Important: • The battery pack is not fully charged Do not cut below 51 mm (2 inches) unless the when you purchase it. -
Page 17: Cleaning The Machine
Folding the Handle Green Battery pack is charged Battery pack and/or battery charger is over or under the appropriate temperature range WARNING Battery pack charging fault* Folding or unfolding the handle improperly blinking can damage the cables, causing an unsafe *Refer to Troubleshooting (page 22) for more... -
Page 18: Storing The Machine In The Vertical-Stow Position
Storing the Machine in the Vertical-Stow Position You can store your machine in the vertical position to minimize storage space. DANGER The vertical-stow position exposes the bottom of the machine. • Remove the battery pack and the electric-start button before moving the machine into the vertical-stow position. -
Page 19: Maintenance
Maintenance Remove the electric-start button and battery pack from the machine before maintaining or cleaning the machine. Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. Use only the manufacturer’s recommended replacement parts and accessories. -
Page 20: Adjusting The Self-Propel Drive
Adjusting the Self-Propel Preparing the Battery Pack for Recycling Drive Important: Whenever you install a new self-propel cable or if Upon removal, cover the terminals of the self-propel drive is out of adjustment, adjust the the battery pack with heavy-duty adhesive tape. self-propel drive. -
Page 21: Storage
Storage Important: Store the machine, battery pack, and charger only in temperatures that are within the appropriate range; refer to Storage (page 21). Important: If you are storing the battery pack for the off-season, charge it until 2 or 3 LED indicators turn green on the battery. -
Page 22: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The machine does not start. - Page 23 Problem Possible Cause Corrective Action The LED indicator light on the battery 1. There is an error in the communication 1. Remove the battery pack from the charger is blinking red. between the battery pack and the battery charger, unplug the battery charger.
- Page 24 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
