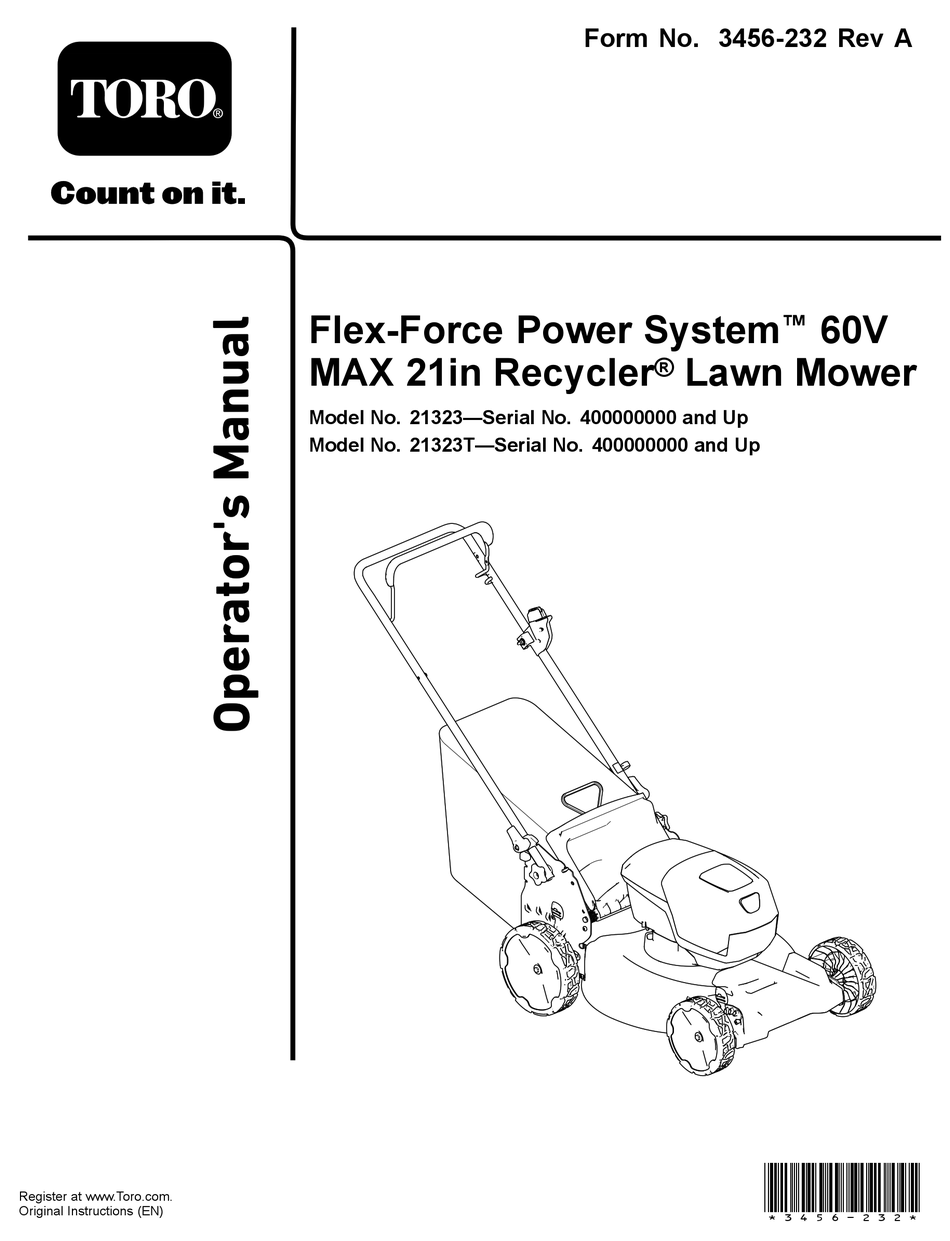

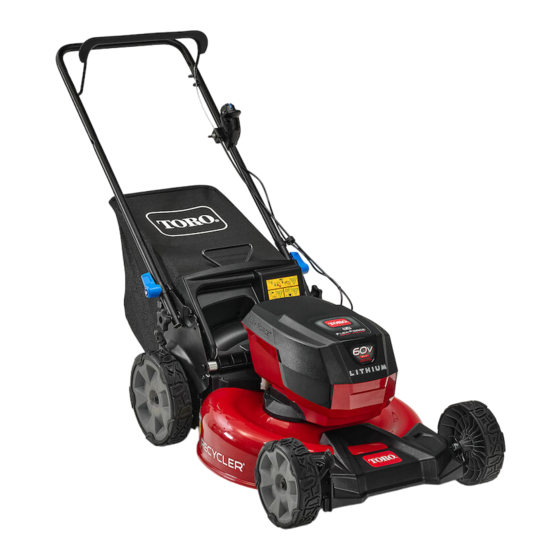

- Page 1 Form No. 3456-232 Rev A Flex-Force Power System ™ MAX 21in Recycler ® Lawn Mower Model No. 21323—Serial No. 400000000 and Up Model No. 21323T—Serial No. 400000000 and Up *3456-232* Register at www.Toro.com. Original Instructions (EN)
-
Page 2: Safety-Alert Symbol
It is not designed for cutting brush or for agricultural uses. g000502 Figure 2 It is designed to use Toro 60V lithium-ion battery packs. These battery packs are designed to be Safety-alert symbol charged only by Toro 60V lithium-ion battery chargers. -
Page 3: Table Of Contents
Replace any damaged or unreadable labels. Use only the battery pack specified by Toro. Using other accessories and attachments may increase the risk of injury and fire. Plugging the battery charger into an outlet that is... - Page 4 Do not use a battery-operated lawn mower in Charge the battery pack with only the battery rain. charger specified by Toro. A charger suitable for Operate the machine only in good visibility and 1 type of battery pack may create a risk of fire appropriate weather conditions.
- Page 5 Replace the battery pack with a genuine Sharpen a dull blade on both edges to maintain Toro battery pack only; using another type of balance. Clean the blade and ensure that it is battery pack may cause a fire or risk of injury.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. Model 88610 decal144-3094 144-3094 1. The battery pack is 3. - Page 7 decal144-3096 144-3096 decal144-3098 144-3098 Model 88640 decal139-8986 139-8986 decal140-2155 140-2155 1. Read the Operator’s 3. Keep the Lithium Ion Manual. battery away from open fire or flames. 4. Do not expose to rain. 2. Call2Recycle ® battery recycling program...
- Page 8 decal144-3175 144-3175 1. Read the Operator’s 3. To shut off the machine, Manual. release the bar. 2. To start the machine, squeeze the bar to the handle and press the button.
-
Page 9: Setup
Setup Important: The battery pack is not fully charged when it is purchased. Before using the machine for the first time, refer to Charging the Battery Pack (page 16). Assembling the Grass Bag No Parts Required Procedure g407949 Figure 3 Unfolding the Handle No Parts Required Procedure... - Page 10 Ensure that the cables are routed to the outside of the handle (D of Figure Engage the handle locks until the pin clicks in place to lock the handle into the operating position (E of Figure Note: You may adjust the height of the handle by changing the hole for the handle lock. Secure the knobs to the handle bolts to secure the handle (F of Figure g413591...
-
Page 11: Product Overview
Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com for a list of all approved attachments and accessories. To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. -
Page 12: Before Operation
Operation Before Operation Installing the Battery Pack Important: Use the battery pack only in temperatures that are within the appropriate range; refer Specifications (page 11). Make sure that the vents on the battery are clear of any dust and debris. Lift up the battery-compartment lid (A of Figure Line up the cavity in the battery pack with the tongue on the machine and slide the battery pack into the... -
Page 13: Adjusting The Cutting Height
Adjusting the Cutting Height DANGER Adjusting the height-of-cut could bring your hands into contact with a moving blade and result in serious injury. • Shut off the motor, remove the battery, and wait for all moving parts to stop before adjusting the cutting height. -
Page 14: During Operation
During Operation Starting the Machine Ensure that the battery pack is charged and installed in the machine; refer to Installing the Battery Pack (page 12). Insert the electric-start button into the electric starter switch (A of Figure Squeeze the blade-control bar and hold it to the handle (B of Figure Press the electric-start button and keep it pressed until the motor starts (C of Figure... -
Page 15: Shutting Off The Machine
• For best performance, install a new Toro blade before the cutting season begins or when necessary. Cutting Grass •... -
Page 16: After Operation
After Operation Green Battery pack is charged Battery pack and/or battery charger is over or under the appropriate temperature range Charging the Battery Pack Battery pack charging fault* blinking Important: The battery pack is not fully charged when you purchase it. Before using the tool for *Refer to Troubleshooting (page 20) for more... -
Page 17: Folding The Handle
Folding the Handle WARNING Unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cable(s) when folding or unfolding the handle. • Ensure that the cable(s) are routed to the outside of the handle. •... -
Page 18: Maintenance
Maintenance Remove the electric-start button and battery pack from the machine before maintaining or cleaning the machine. Always shut off the machine, wait for all moving parts to stop, and allow the machine to cool before adjusting, servicing, cleaning, or storing it. Use only the manufacturer’s recommended replacement parts and accessories. -
Page 19: Preparing The Battery Pack For Recycling
If you are located outside of the US and Canada, please contact your authorized • Do not store the machine with the battery pack Toro distributor. installed. • Clean all foreign material from the product. • When not in use, store the machine, electric-start button, battery pack, and battery charger out of the reach of children. -
Page 20: Troubleshooting
Troubleshooting Perform only the steps described in these instructions. All further inspection, maintenance, and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Problem Possible Cause Corrective Action The machine does not start. - Page 21 Problem Possible Cause Corrective Action The machine is producing a beeping 1. The battery pack is not charged. 1. Remove the battery pack from the sound. machine and charge it. 2. The machine is in an unsafe position 2. Ensure that the machine is not at an for operation.
- Page 22 Notes:...
- Page 23 California Proposition 65 Warning Information What is this warning? You may see a product for sale that has a warning label like the following: WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov. What is Prop 65? Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into California.
