Gasmate OBSIDIAN GM142-160 Manual

Gas fire table
Hide thumbs Also See for OBSIDIAN GM142-160:

Advertisement

Quick Links

Download this manual
CARBON MONOXIDE HAZARD
This appliance can
produce carbon
monoxide which has
no odour.
Using it in an enclosed
space, eg. boat,
caravan, tent, car,
campervan or house,
may cause death.
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odour.
Using it in an enclosed space, eg. boat,
caravan, tent, car, campervan or
house, may cause death.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odour.
Using it in an enclosed
space, eg. boat, caravan,
tent, car, campervan or
house, may cause death.
CARBON MONOXIDE H
This appliance can produce carbon mo
which has no odour.
Using it in an enclosed space, eg. boa
tent, car, campervan or house, may c

Advertisement

loading

Related Manuals for Gasmate OBSIDIAN GM142-160

Summary of Contents for Gasmate OBSIDIAN GM142-160

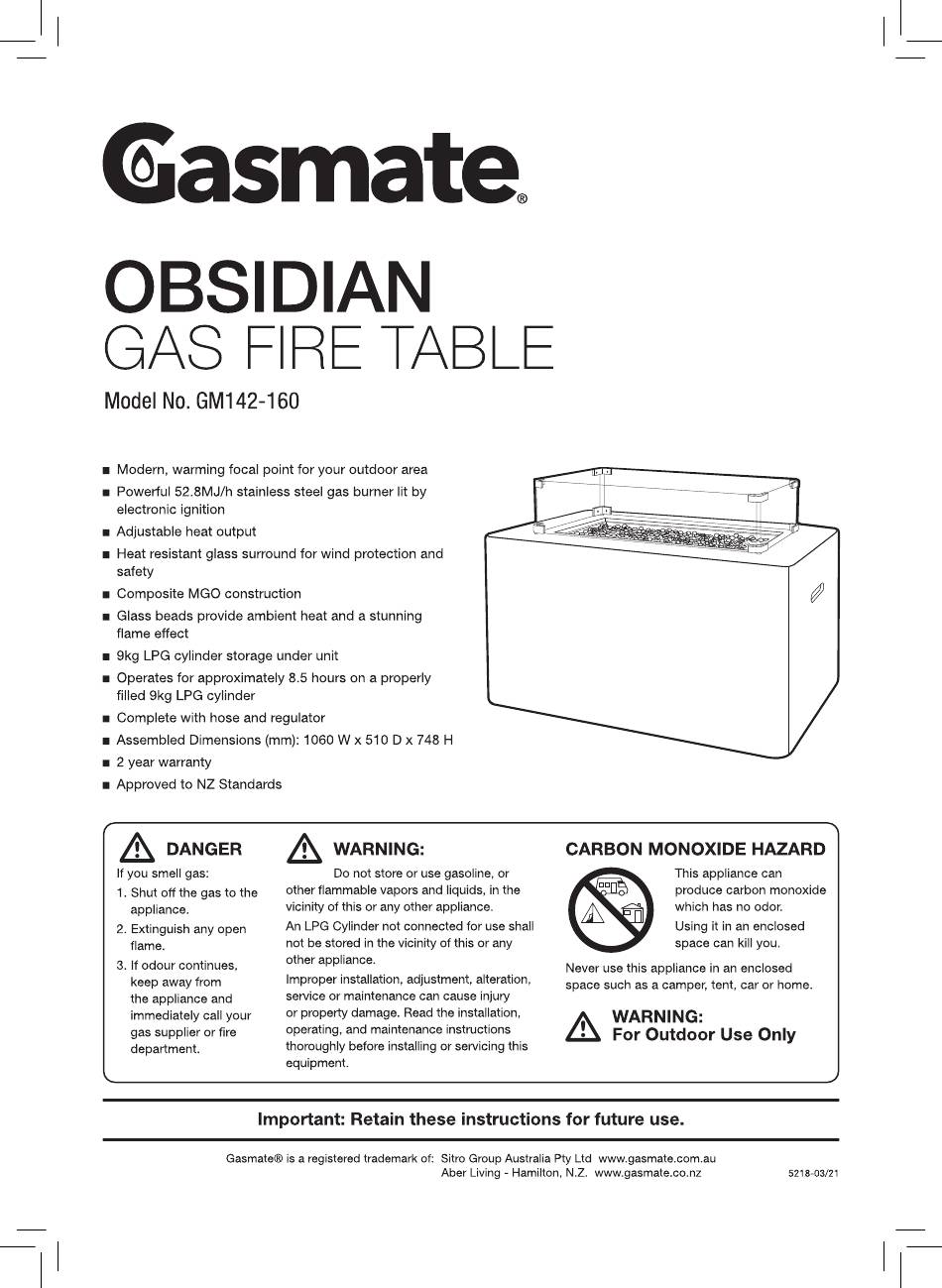

  • Page 1 CARBON MONOXIDE HAZARD CARBON MONOXIDE HAZARD This appliance can This appliance can produce produce carbon carbon monoxide which has monoxide which has no odour. no odour. Using it in an enclosed Using it in an enclosed space, eg. boat, space, eg. boat, caravan, caravan, tent, car, tent, car, campervan or campervan or house,...
  • Page 3 Screw the coupling nut of regulator into the cylinder valve outlet. Type of Gas I3/P28-30/ULPG Consumption 52.8MJ/h Operating Pressure 2.75kPa Injector Size 1.95 mm Heater specifications can be found on the data label.
  • Page 4 IMPORTANT: Before connecting and disconnecting appliance to gas source, make sure control knob is in ‘OFF’ position. CAUTION: When the appliance is not in use, the gas must be turned off at the cylinder. Glass Beads Body Door Cover Battery (AA)
  • Page 5 Part Name Screen Thermocouple Fire pan Grounding wire Ignition Pin/wire Fire Table Control knob Igniter Wing screw Control panel Battery Door Hose and regulator Nozzle Burner A. Glass Panel B. Bottom C. Base Bracket D. Screws E. Top Bracket Bracket Feet 4PCS 4PCS...
  • Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS STEP 11 STEP 12 Ensure cylinder valve is in its full off position. Check Turn on the gas cylinder ensuring that the control knob STEP 11 STEP on the outdoor heater is turned OFF at this point. for any damage to either the cylinder connection or the hose.
  • Page 7 STEP 14a shing liquid and If the connection is leaking, bubbles will start to grow ay bottle as STEP 14b STEP 14c in the soapy solution. If this happens shut off the gas WARNING: This screen must be clear and nections have a supply at the cylinder.
  • Page 8 WARNING: White smoke may appear around the burner during the first minute of the initial firing. IMPORTANT: Cover must be removed when burner is in operation.
  • Page 9 Problem: Condition: Solution suggested: Appliance won’t Igniter pin and burner are wet. Wipe dry with a cloth. light Igniter battery is incorrectly Check that battery is correctly inserted. inserted. Igniter pin cracked or broken. Contact retailer where purchased for replacement part. Electrode wire is loose or Reconnect wire to the igniter box disconnected.

  • Page 12: Limited Warranty

    2 YEAR LIMITED WARRANTY Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 24 months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental purposes.
