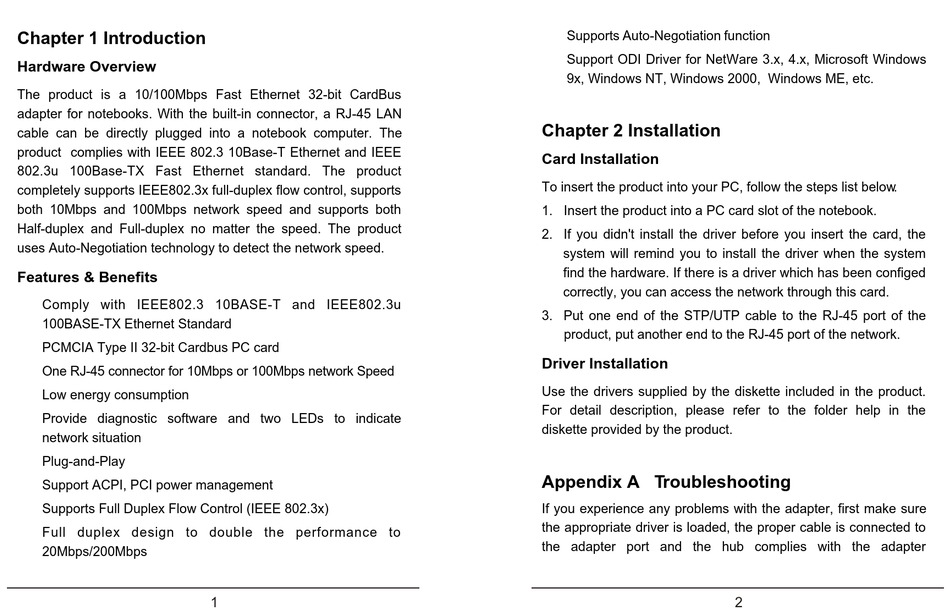

Chapter 1 Introduction

Hardware Overview
The product is a 10/100Mbps Fast Ethernet 32-bit CardBus
adapter for notebooks. With the built-in connector, a RJ-45 LAN
cable can be directly plugged into a notebook computer. The
product complies with IEEE 802.3 10Base-T Ethernet and IEEE
802.3u 100Base-TX Fast Ethernet standard. The product
completely supports IEEE802.3x full-duplex flow control, supports
both 10Mbps and 100Mbps network speed and supports both
Half-duplex and Full-duplex no matter the speed. The product
uses Auto-Negotiation technology to detect the network speed.
Features & Benefits
Comply with IEEE802.3 10BASE-T and IEEE802.3u
!
100BASE-TX Ethernet Standard
PCMCIA Type II 32-bit Cardbus PC card
!
One RJ-45 connector for 10Mbps or 100Mbps network Speed
!
Low energy consumption
!
Provide diagnostic software and two LEDs to indicate
!
network situation
Plug-and-Play
!
Support ACPI, PCI power management
!
Supports Full Duplex Flow Control (IEEE 802.3x)
!
Full duplex design to double the performance to
!
20Mbps/200Mbps
1
Supports Auto-Negotiation function
!
Support ODI Driver for NetWare 3.x, 4.x, Microsoft Windows
!
9x, Windows NT, Windows 2000, Windows ME, etc.

Chapter 2 Installation

Card Installation
To insert the product into your PC, follow the steps list below.
1. Insert the product into a PC card slot of the notebook.
2. If you didn't install the driver before you insert the card, the
system will remind you to install the driver when the system
find the hardware. If there is a driver which has been configed
correctly, you can access the network through this card.
3. Put one end of the STP/UTP cable to the RJ-45 port of the
product, put another end to the RJ-45 port of the network.
Driver Installation
Use the drivers supplied by the diskette included in the product.
For detail description, please refer to the folder help in the
diskette provided by the product.

Appendix A Troubleshooting

If you experience any problems with the adapter, first make sure
the appropriate driver is loaded, the proper cable is connected to
the adapter port and the hub complies with the adapter
2
