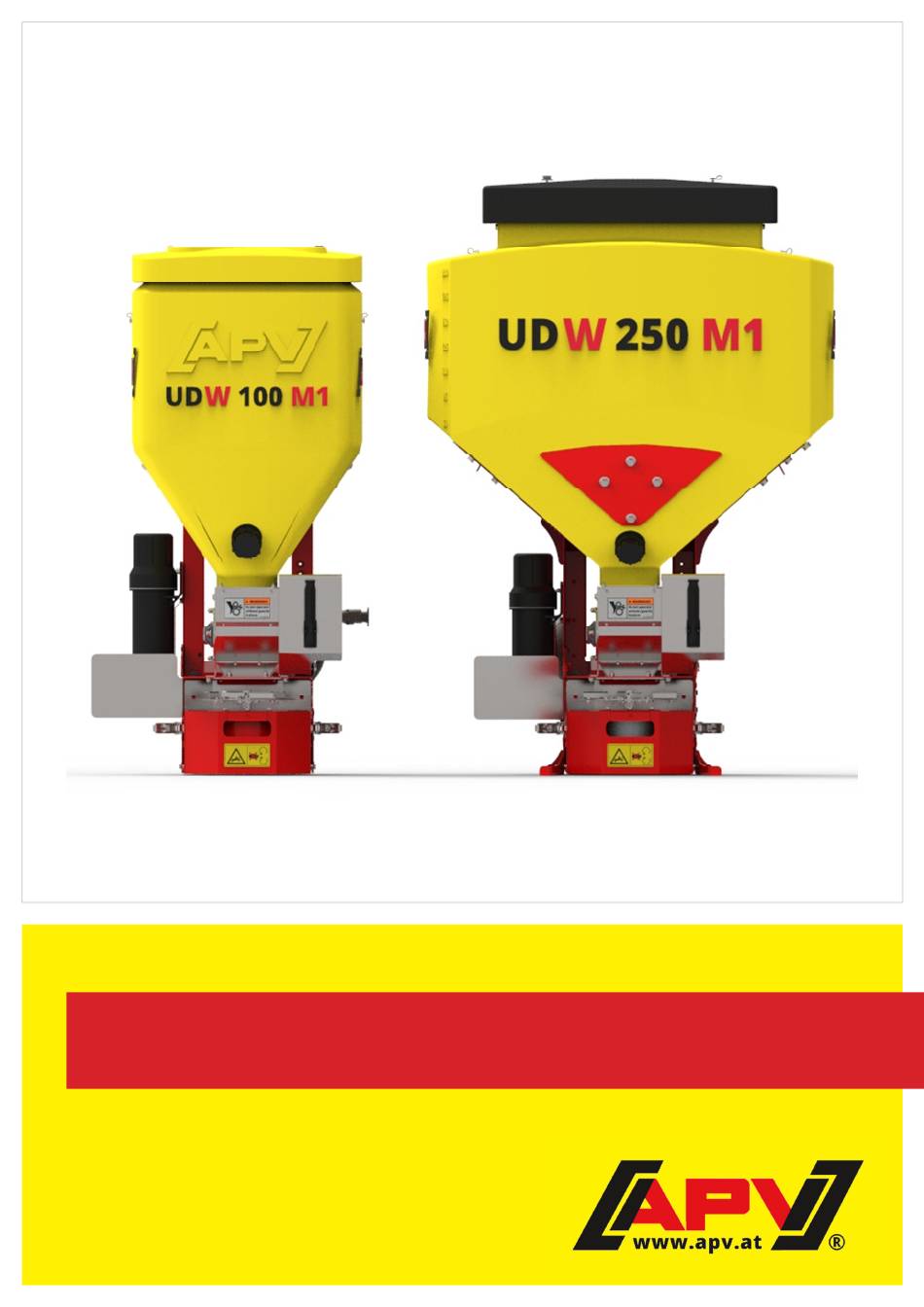

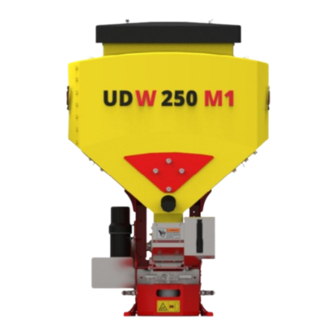

- Page 1 Version: 1.3 EN / Item no.: 00601-3-684 Operating manual UDW 100 M1, UDW 250 M1 Please read carefully before initial operation! ORIGINAL OPERATING MANUAL...
-
Page 2: Table Of Contents
Table of contents EC Declaration of Conformity ...................... 3 Identification of the implement ................... 4 Service ..........................4 Warranty..........................5 Accident prevention safety instructions ................5 Intended use ......................5 General safety-related instructions and accident prevention regulations ....5 Mounted implements ....................7 Maintenance ...................... -
Page 3: Ec Declaration Of Conformity
ISO 14982 Agricultural and forestry machinery ― Electromagnetic compatibility ― Test methods and acceptance criteria If applicable: Title / Number / Current version Your CE contact person at APV is Mr. Jürgen Schöls. He can be reached at the telephone number +43(0) 2913-8001. Dallein, 10/2019... -
Page 4: Identification Of The Implement
If you still have questions regarding the handling of the spreader despite the information provided in • this operating manual For spare parts orders • To order maintenance and repair work • APV - Technische Produkte GmbH HEADQUARTERS Telephone: +43 (0) 2913 8001 Dallein 15 Fax: +43 (0) 2913 8002 A-3753 Hötzelsdorf Email: service@apv.at AUSTRIA Web: www.apv.at... -
Page 5: Warranty
Warranty Please check the implement for any transport damage immediately upon receipt. Later claims regarding transport damage can no longer be considered. We provide a one-year factory warranty as of the date of delivery (your invoice or the delivery slip serve as a warranty certificate). - Page 6 Use additional lighting (e.g., flashlight) for repair or maintenance work! • The warning and information signs applied to the implement provide important instructions for safe • operation, observe them for the sake of your own safety! Observe the respective regulations when using public roads! •...
-
Page 7: Mounted Implements
When filling the hopper with slug pellets or similar toxic agents, only fill as much as is needed in the • near future. Protective clothing, safety gloves, and face and eye protection must be worn during the filling procedure. Observe the warning information provided by the manufacturer on the packaging. The seed grains •... -
Page 8: Maintenance
Layout and mode of operation The UDW 100 M1/UDW 250 M1 is a universal spreader with a capacity of 105 litres or 250 litres. The spread rate is regulated by the seeding shaft, which is driven by a 12V gear motor. The working width is regulated comfortably from the driver's seat via the speed of the spreading plate. -
Page 9: Mounting The Control Box
Mounting the control box To fasten your control box: Fasten the standard supplied bracket in the tractor cab with two bolts. Stow the excess cable in the • driver's cab to avoid pinching. CAUTION! If possible, do not roll up the cable into a coil! On the bottom side of the control box, there is a 3-pin •... -
Page 10: Settings And Operation
Settings and operation Spreading width The spreading width depends on the density of the de-icing product/salt/grit, on the delivery rate of the seeding shaft, and the speed of the spreading disc. The spreader is designed such that it can spread the spreading material evenly across a spreading width of up to 6 m. -
Page 11: Spreading Disc, Throwing Vanes
• Install the deflector with the supplied star knob • screw. Figure 5: Deflector on the UDW 100 M1 Dismounting the seeding shaft To dismount the seeding shaft, proceed as follows: PLEASE NOTE! When changing the seeding shaft, ensure that the hopper is completely empty. - Page 12 Empty the hopper completely. Loosen the two locking nuts (WAF 10) marked in Figure 6 and take off the bearing flange. Figure 6 Loosen the star knob screws marked in Figure 7 and fasten them on the marked position. Pull the seeding shaft out of the metering unit in the direction shown by the arrow (Figure 7).
-
Page 13: Agitator
Agitator If the agitator is not needed, then proceed as follows: To remove the motor cover, remove the 4 bolts marked in Figure 8 and Figure 9 (width across flats 10). Figure 8: Removing the 2 bolts Figure 9: Removing the 2 bolts Loosen the nut marked in Figure 10 from the bolt (width across flats 7) and pull out the bolt. -
Page 14: Calibration Test / Regulation Of The Seed Rate
Calibration test / Regulation of the seed rate The speed of the seeding shaft depends on the spread rate and the forward speed when operating with sensors. To determine the desired spread rate, you should perform a calibration test before beginning work. -
Page 15: Emptying The Hopper
When the work is finished, first switch off the seeding shaft, then the spreading plate, and finally the • entire control box with the "On/Off" button. The following points must be observed during operation: The spreading plate must always be switched on during operation. •... -
Page 16: Repairs And Service
Disconnecting the spreader from the power supply. Remove the seeding shaft (see Dismounting the seeding shaft for this, Point 6.5). Fold back the cover of the spreading material hopper to open it. Clean the inside of the spreader and the spreading material paths with compressed air. Clean the outside of the spreader with a moist cloth. -
Page 17: Technical Data
Technical data Designation: UDW 100 M1 UDW 250 M1 Hopper content: 105 litres 250 litres Weight: 45 kg 80 kg Dimensions (H x W x D): 1100 x 550 x 550 mm 1300 x 1000 x 850 mm Max. spreading width:... -
Page 18: Accessories
Figure 15: Calibration slide rubber strap Item number: 11003-2-028 Pick-up mounting bracket • For practical and easy attachment of the UDW 100 M1 to flatbeds or pick- up trucks. Items included: Pick-up mounting bracket Item number: 00300-1-001 Figure 16: Pick-up... - Page 19 Fill level sensor • This sensor can be retrofitted on the UDW 100 M1. It measures the fill level in the hopper and triggers an alarm on the control box when the set level is undercut.It measures the fill level in the hopper and triggers an alarm on the control box when falling below the set level.
-
Page 20: Connection Diagram
Connection diagram Stecker- Gerätekabel Streuteller Säwellenmotor Füllstandsensor Abdrehschalter (SW) (sowing (FS) (fill level (AS) (calibration (machine (plug-pin) cable) (spreading shaft motor) sensor) button) disc) 4 mm² / blau 2,5 mm² / 1,5 mm² / 0,75 mm² / (blue) rot (red) schwarz braun (brown) (black) -
Page 21: My Idea
Your information goes directly to the leading developers at APV. I would like to thank you in advance for your involvement and wish you lots of fun with your APV product! Sincerely yours, Your Head of Development & Technology Ing. -
Page 22: Safety Signs
Safety signs Observe this sticker on the implement! It informs you of special dangers! Operating errors can lead to serious injuries. Read and observe the operating manual before commissioning or maintenance! Danger due to thrown parts; observe the safety distance! Do not reach into rotating parts. -
Page 23: Index
Index Accessories ............ 18 Layout and mode of operation ......8 Accident prevention .......... 5 Maintenance ..........8, 15 Agitator ............13 Mounted implements ........7 Calibration button ........... 18 Mounting ............8 Calibration slide ..........18 Operation on the road ........14 Calibration test .......... - Page 24 Fax: +43 (0) 2913 / 8002 Web: www.apv.at Company details APV - Technische Produkte GmbH, Managing Director: Ing. Jürgen Schöls, Dallein 15, 3753 Hötzelsdorf, Austria, marketing@apv.at, www.apv.at, UID: ATU 5067 1107 Photo credits: Company photos © APV Page 24...
