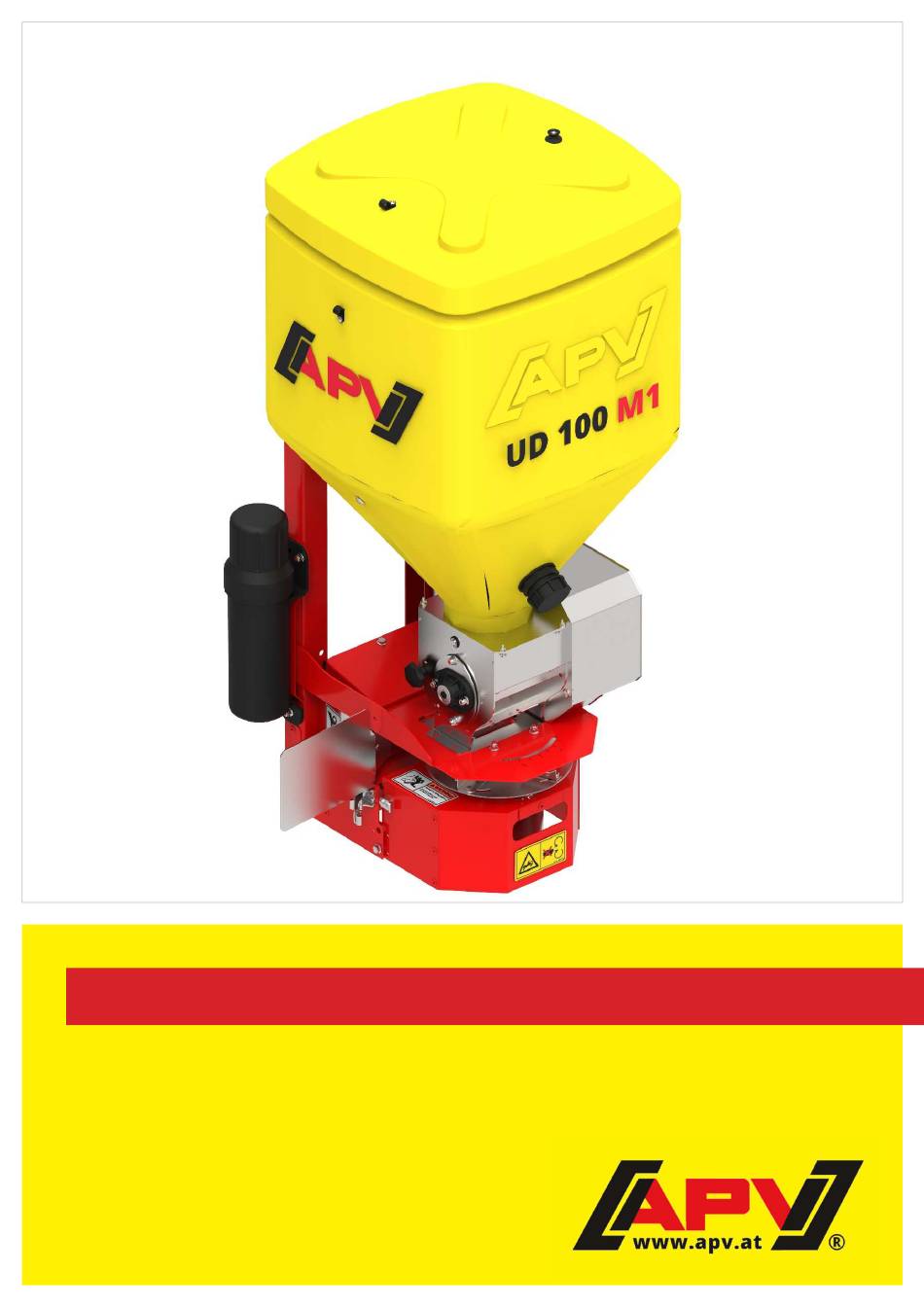

- Page 1 Version: 1.0 EN / Item no.: 00601-3-684 Operating manual UD 100 M1 Please read carefully before initial operation! ORIGINAL OPERATING MANUAL...
-
Page 2: Table Of Contents
Table of contents EC Declaration of Conformity ...................... 3 Provisions ..........................4 Warranty..........................4 Accident prevention safety instructions ................4 Mounting of the spreader ....................5 Layout and mode of operation ..................5 Mounting the implement ..................... 5 Mounting the control box .................... 6 Settings and operation ...................... -
Page 3: Ec Declaration Of Conformity
ISO 14982 Agricultural and forestry machinery ― Electromagnetic compatibility ― Test methods and acceptance criteria If applicable: Title / Number / Current version Your CE contact person at APV is Mr. Jürgen Schöls. He can be reached at the telephone number +43(0) 2913-8001. Dallein, 10/2018... -
Page 4: Provisions
Provisions Dear customer! We are pleased and congratulate you on your purchase and wish you lots of fun and success in working with this implement! Please be sure to read all the instructions in this operating manual before operating this implement! Warranty Please check the implement for any transport damage immediately upon receipt. -
Page 5: Mounting Of The Spreader
Mounting of the spreader Layout and mode of operation The UD 100 M1 is a universal spreader with a capacity of 105 litres. The spread rate is regulated by the seeding shaft, which is driven by a 12V gear motor. The working width is regulated comfortably from the driver's seat via the speed of the spreading plate. -
Page 6: Mounting The Control Box
Mounting the control box Fasten the standard supplied bracket with two bolts in the tractor cab. Stow the excess cable in the driver's cab to avoid pinching. Figure 2 CAUTION! If possible, do not roll up the cable into a coil! On the bottom side of the control box, there is a 3-pin plug (= connection to the power supply of the tractor), a 6-pin plug (= connection of the spreader to the... -
Page 7: Settings And Operation
CAUTION! The 12 volt power supply must NOT be connected to the socket for the cigarette lighter. After use of the implement, the control box should be disconnected again (for various safety-related reasons). If your battery is charged by a charger that is in "Start" operating mode, there can be voltage peaks! These can cause damage to the electrical system of the control box if it is also connected when the battery is being charged. -
Page 8: Setting Charts
Setting charts These tables can be used as reference values. However, they cannot be used in the same way everywhere as many factors play a role or strong changes can occur (such as the density, spreading material moisture content, changes in flow behaviour, and much more). CAUTION! The grain size of the grit may not exceed 5-6 mm. -
Page 9: Spreading Disc, Throwing Vanes, Point Of Impact Adjustment
Spreading disc, throwing vanes, point of impact adjustment With the variable throwing vanes (Figure 4) attached to the spreading disc, the spread pattern can be adapted to the specific weight of the spreading material. This results in uniform lateral distribution. When the throwing vanes are moved forward, the spreading material exits the spreading disc a little later and the... -
Page 10: Deflector (Guide Plate)
Deflector (guide plate) The deflector is required when the spreading material is flung towards the front onto the vehicle. It is installed on the left side in the direction of travel of the spreader. To install the deflector, remove the M6x16 flange screw and install the deflector with the supplied star knob screw. -
Page 11: Agitator
Loosen the star knob screws marked in Figure 8 and fasten them on the marked position. Pull the seeding shaft out of the metering unit in the direction shown by the arrow (Figure 8). To install the seeding shaft, proceed in the reverse sequence. -
Page 12: Calibration Test / Regulation Of The Seed Rate
Figure 11: Remove the 1 bolt Figure 12: Loosen the nut from the bolt Loosen the nut marked in Figure 12 from the bolt (WAF 7) and pull out the bolt. Reinstall the motor cover on the spreader. Calibration test / Regulation of the seed rate The speed of the seeding shaft depends on the spread rate and the forward speed when operating with sensors. -
Page 13: Operation On The Road
Proceed as follows to perform the calibration test: 1. Fold down the spreading plate by opening the quick fasteners (Figure 13). 2. For the calibration test, use the supplied sack or a different hopper that can be attached to the metering unit to collect the spreading material (Figure 14). -
Page 14: Emptying The Hopper
Emptying the hopper • To empty the hopper, unscrew the screw plug on the emptying nozzle at the front of the hopper, and hold a container, sack or other vessel underneath. • To ensure complete emptying, open the fastener and fold down the spreading plate. -
Page 15: Location Of The Rating Plate
Location of the rating plate The rating plate is located on the steel frame. In cases of inquiries or warranty claims, please always tell us the production number of your machine. Figure 16 Cleaning the spreader The spreader must be cleaned inside and out on a regular basis to ensure long-term proper functioning. If not cleaned properly, germs can form inside the spreader due to spreading material residues. -
Page 16: Decommissioning, Storage And Disposal
Decommissioning, storage and disposal Decommissioning the implement To ensure that the implement remains fully functional even if it is out of operation for longer periods of time, it is important to take precautions for storage: 1. Completely remove all spreading material from the spreader. 2. -
Page 17: Technical Data
Technical data Designation: UD 100 M1 Hopper content: 105 litres Weight: 45 kg Dimensions (H x W x D): 1100 x 550 x 550 mm Max. spreading width: 6 m with salt Recommended spreading width: Min. spread rate 0.5 kg of salt per minute Max. -
Page 18: Accessories
Accessories • Truck bed mounting bracket For practical and easy attachment to flatbeds or pick-up trucks. Scope of delivery: Truck bed mounting bracket Item number: 00300-1-001 Figure 18: Truck bed mounting bracket • Calibration button The calibration button is integrated directly in the wiring harness of the universal metering unit. - Page 19 • Shovel bracket The shovel bracket can be retrofitted on the UD in order to carry a snow shovel and/or a broom. Attention: The snow shovel must not have a handle on the shaft; if it does it will not fit into the bracket. The thickness of the shaft must not exceed 41 mm.
-
Page 20: Connection Diagram
Connection diagram Figure 23 Page 20... -
Page 21: My Idea
Your information goes directly to the leading developers at APV. I would like to thank you in advance for your involvement and wish you lots of fun with your APV product! Sincerely yours Your Head of Development & Customer Service Ing. -
Page 22: Safety Instructions
Safety instructions For your safety… This supplement to the operating manual contains general rules of conduct for the intended use of the implement and safety-related information that should always be observed for your personal safety. The list is very extensive, and some of the information does not apply exclusively to the delivered implement. - Page 23 • Maintenance and cleaning work must be carried out with the implement lowered, shut down and secured to prevent it being switched on again. • Working under the implement is forbidden. • Observe the generally applicable safety and accident prevention regulations! •...
-
Page 24: Mounted Implements
• Lock the track markers in transport position! • When filling the hopper with slug pellets or similar toxic agents, only fill as much as is needed in the near future. Protective clothing, safety gloves, and face and eye protection must be worn during the filling procedure. -
Page 25: Maintenance
Maintenance • Maintenance, repair, and cleaning work as well as the elimination of malfunctions should always be performed when the drive is switched off and the motor is at a standstill! – Remove the ignition key! – Switch off the implement! •... -
Page 26: Safety Signs
Safety signs Observe this sticker on the implement! It informs you of special dangers! Always switch off the engine and remove the key Read and observe the operating manual before maintenance work! before operating the implement! Danger due to thrown parts; observe the safety distance! Do not reach into rotating parts. - Page 27 Notes Page 27...
- Page 28 Fax: +43 (0) 2913 / 8002 Web: www.apv.at Company details APV - Technische Produkte GmbH, Managing Director: Ing. Jürgen Schöls, Dallein 15, 3753 Hötzelsdorf, Austria, marketing@apv.at, www.apv.at, UID: ATU 5067 1107 Photo credits: Company photos © APV Page 28...
