envea HYCONTROL SHIELD Lite Quick Start Manual

SPS-SHIELDLITE SYSTEM
Failure to follow safe operating / installation and maintenance guidelines could result in serious injury or death
➢ Use suitable PPE for tasks to be performed and for the environment you are working in.
➢ All installation, operation and maintenance work must be undertaken by qualified authorised personnel.
➢ All applicable industry and statutory regulations must be followed.
➢ Any site-specific equipment should be used.
➢ Ensure all tools are in good working order.
➢ DO NOT undertake any operation or work on the PRV on the silo top unless qualified and authorised to do
so.
➢ For full manual, refer to https://www.hycontrol.com/downloads/manuals.
The product described in this document is NOT suitable for use in an ATEX classified area.

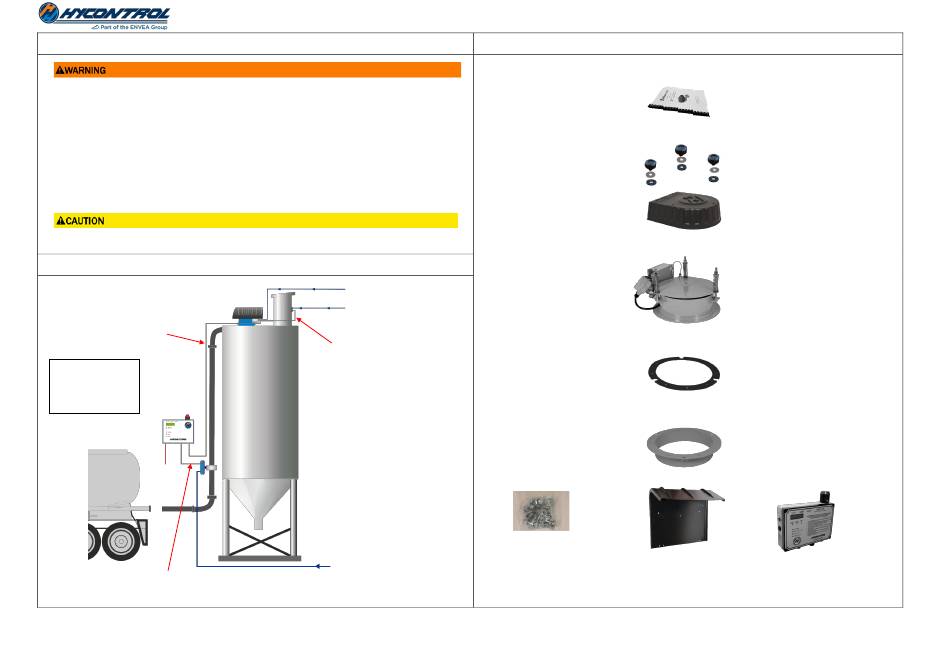

1. SYSTEM OVERVIEW

24V DC and comms
4 core screened cable
(Maximum 100m length)
DISPLAY PANEL
MUST BE MOUNTED
AT FILL POINT
VISIBLE TO DRIVER
100 – 240V
AC Supply
Inlet fill valve
6 core screened cable
(control and feedback)
Shieldlite20 Quick Start guide EN V1_2.docx
Quick Start Guide
CONTINUOUS AIR SUPPLY TO PRV
7 – 10 bar (101 – 145psi)
AIR SUPPLY TO FILTER
Filter control
3 core screened cable
AIR SUPPLY TO
FILL VALVE
6 – 8 bar (87 - 116psi)
For first time users, we recommend the use of the SPS-Shieldlite system manual
2. PARTS LIST
9 x M10 30mm
BOLTS &
WASHERS
WEATHER COVER FOR
SPS-SHIELDLITEDB
1 of 4
INSTRUCTION MANUAL
3x HAND KNOBS
3x METAL PENNY WASHERS
3x RUBBER WASHERS
WEATHER COVER
PRESSURE SENSOR
PRESSURE RELIEF VALVE
LEVEL PROBE
GASKET
UPSTAND /
SPIGOT FLANGE
SPS-SHIELDLITEDB
