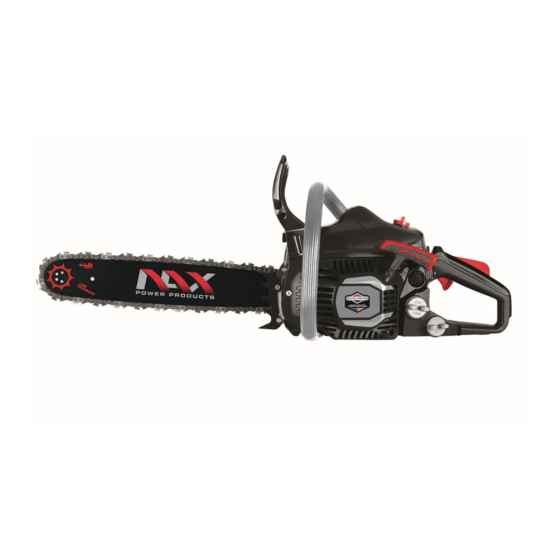

NAX 200C

Advertisement

Table of Contents
loading

Related Manuals for Briggs & Stratton NAX 200C

Summary of Contents for Briggs & Stratton NAX 200C

  • Page 1 NAX 200C...
  • Page 3 CHAIN SAW NAX 200C...

  • Page 4: Chain Saw Construction And Overview Drawings

    CONSTRUCTION OF CHAIN SAW AND PREVIEW DRAWINGS Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5...
  • Page 5 Fig. 6 Fig. 7 Fig. 9 Fig. 8 Fig. 10...
  • Page 6 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15...
  • Page 7 Fig. 16 Fig. 17 Fig. 18 Fig. 19 Fig. 20 Fig. 21...
  • Page 8 Fig. 22 Fig. 26 Fig. 23 Fig. 27 Fig. 24 Fig. 25 Fig. 28...
  • Page 9 Fig. 29...
  • Page 10 Fig. 30...

  • Page 11: Table Of Contents

    Original operation manual, edition 1/2020 Translation of the original operation manual from polish language This manual should be treated as an integral part of the device. It should be stored in the place provided for it so that it is easily accessible.

  • Page 12: Technical Data

    TECHNICAL DATA CIRCULAR COMBUSTION SAW Type, model NAX 200C Engine TT-1E39F series BS Fuel mix 40: 1 (4 l of gasoline for every 100 ml of two-stroke oil) Fuel tank capacity 310 cm Mix oil (recommended) Briggs & Stratton for two-stroke engines...

  • Page 13: Description Of Graphic Pages And Pictograms

    DESCRIPTION OF GRAPHIC PAGES AND PICTOGRAMS Pictograms page 2.A Attention! Danger. Exercise special caution. Important! Read the instructions and follow the warnings. Risk of fire or explosion. Gasoline is highly flammable. Keep out of the reach of children. It is prohibited to work in the rain. Note: Exhaust gases are harmful to health.
  • Page 14 SAFETY DURING WORKING WITH FUEL  The internal combustion engine is designed to run on gasoline or a fuel mixture (see type of fuel in the device's technical data).  Gasoline should be stored only in specially prepared containers (canisters). ...

  • Page 15: Detailed Safety Regulations

     Store the unused equipment out of the reach of children. Do not allow people not familiar with the tool or this manual to use the equipment. Internal combustion tools and equipment are dangerous in the hands of untrained users. ...
  • Page 16  Safety devices (e.g. cutting unit cover, housing, handle, engine switch) are in good technical condition and work properly;  Before adjustment, cleaning, maintenance, switch off the engine.  Do not use the device when other people, especially children or pets, are nearby. ...
  • Page 17  When cutting through, always use the buttress as a fulcrum. Holding the chainsaw by the main handle, guide it with the auxiliary handle.  If it is not possible to cut the material at once, pull the saw back slightly, move the buttress and continue cutting by slightly raising the main handle of the saw.

  • Page 18: Safety And Producer's Liability

    SAFETY AND PRODUCER'S LIABILITY Any use of the chain saw, other than described in this manual is considered improper and the manufacturer is not liable for any damage or damages resulting from such a procedure. Proper use also includes respecting the operating, maintenance, storage and repair conditions established by the manufacturer. To prevent accidents, all safety precautions and hazard avoidance must be followed.

  • Page 19: Construction Of A Chainsaw

     Use extreme caution when cutting small branches and trees, as thin material can get stuck in the saw chain and hit the operator or throw him off balance.  When cutting stressed boughs, be careful not to be hit when the stress in the wood fibers is reduced. ...
  • Page 20 SYMBOLS ON THE DEVICE Symbols are placed on the device for safe operation and maintenance. Use these guidelines to be careful not to make a mistake. Designations of the symbols. (Fig. 8) Hole for refilling the fuel mixture. Place: fuel tank housing Fig. 1, point 10. Hole for topping up oil to the chain.

  • Page 21: Starting The Saw

    CAUTION! Do not use used or regenerated oil, as this may damage the oil pump. Check chain lubrication system. After starting the engine, use the gas control lever to set the maximum speed and check that the chain is spraying oil as shown on Fig. 9. The oil flow for chain lubrication can be adjusted by inserting a screwdriver into the bottom slot on the clutch side (Fig.

  • Page 22: Operation

    PROTECTION AGAINST JET FORCE Check the function of the chain brake before each use by switching on the saw and at maximum engine speed after 1-2 seconds push the safety brake forward. The chain should stop immediately when the engine is running at full speed. If the chain stops too slowly or does not stop at all, replace the brake band and clutch drum before using the saw.
  • Page 23 AIR FILTER CLEANING A dirty air filter increases fuel consumption and reduces the efficiency of an internal combustion engine. The air filter should be cleaned as needed, at least every 5 hours of operation of the saw. Sawdust on the filter surface can be removed with a brush. To clean the filter from the inside, use compressed air.

  • Page 24: Transport

    The idle speed can be adjusted by using the marked screw 1 (Fig. 25). By turning the screw counterclockwise the rotation decreases, by turning the screw clockwise we increase the rotation. To set the speed, turn the idle adjustment screw slowly clockwise until the chain begins to rotate, and then turn the screw counterclockwise until the chain stops moving.

  • Page 25: Storage

     Before transporting the chain saw, replace the chain guard and engage the chain brake.  Carry the chain saw by the front handle to avoid possible injury.  For transport, the saw must be secured with transport belts, and if possible, transport the scythe folded in its original packaging.

  • Page 26: Review And Diagnosis Of Problems

    REVIEW AND DIAGNOSIS OF PROBLEMS INSPECTIONS Prior to After work After each Once In case of Inspections Monthly each use or daily refueling a week damage required visually check (condition, leaks) Entire Machine clean Throttle switch and lock, combination test switch test Chain brake...

  • Page 27: Device Assembly Diagrams

    TROUBLESHOOTING Problem Possible cause Solution Difficulties in starting a cold Low fuel. Check the fuel level and add fuel if necessary. engine. Spark plug flooded or damaged. Check, clean or replace the spark plug. No spark on the spark plug. Replace the spark plug with a new one.

  • Page 28: Declaration Of Conformity

    DECLARATION OF CONFORMITY        ...
  • Page 29 WARRANTY Dear Sir or Madam, Thank you for purchasing our product and congratulations on your right choice. The device that you bought was designed and manufactured according to the latest technologies and represents global standards of quality and reliability, while being environmentally friendly. We remind you to carefully read the commissioning and operation procedures before using the device;...

  • Page 30: Warranty Conditions

    WARRANTY CONDITIONS 1. NAX guarantees smooth operation of the device in accordance with the technical and operational conditions described in the User Manual. 2. The device is granted a 36-month warranty to the consumer (i.e. a natural person making a legal transaction with the entrepreneur not directly related to its business or professional activity) and a 12-month warranty when purchased by the entrepreneur (i.e.

  • Page 31: Warranty Card

    Warranty card ………………………………………………………………….. ……………………………………………………………………………………….. Equipment name * Model * …………………………… ………………………………………… ………………………………………… Date of sale * Device serial number * Engine serial number I declare that I have read the User Manual and the Warranty Card. I received the purchased equipment in working order, complete, along with the proof of purchase. Legible signature of the buyer ....................
