- Page 1 INSTALLATION MANUAL ORC – E3 (v1.1) Contents:...

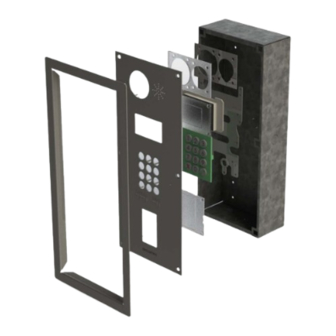

- Page 2 Installation: 1.. Mounting the External Panel Cut hole in wall 175 x 410 x 55 mm Drill 4x (5mm) holes and insert raw plug Flush only 2.. Fixing to wall 3.. Connecting cables Insert and screw to wall Connect the power cable to 12V DC PSU with minimum 4 fixings Insert Ethernet Cable 4..
- Page 3 Details of the failed product. (Part code and batch number) Installation and invoice dates. Detailed description of the problem, with number and percentage of failures. Application, hours used and estimated number of switch cycles. Orcomm | Victor Way | Radlett Road | St Albans | AL2 2FL | www.orcomm.co.uk...
- Page 4 This product complies with all basic requirements and other relevant provisions of the 1999/5/EC directive. For the full wording of the Declaration of Conformity can be found on our website at www.orcomm.co.uk This device complies with part 15 of the FCC Rules. Operation is subject to the following...
