Syswan Octolinks SW88 Series Quick Start Manual

Multi wan router

Hide thumbs Also See for Octolinks SW88 Series:

Quick Start Guide

For advanced setup please refer to your User Guide on the CD-ROM for more detailed information.

Step 1:

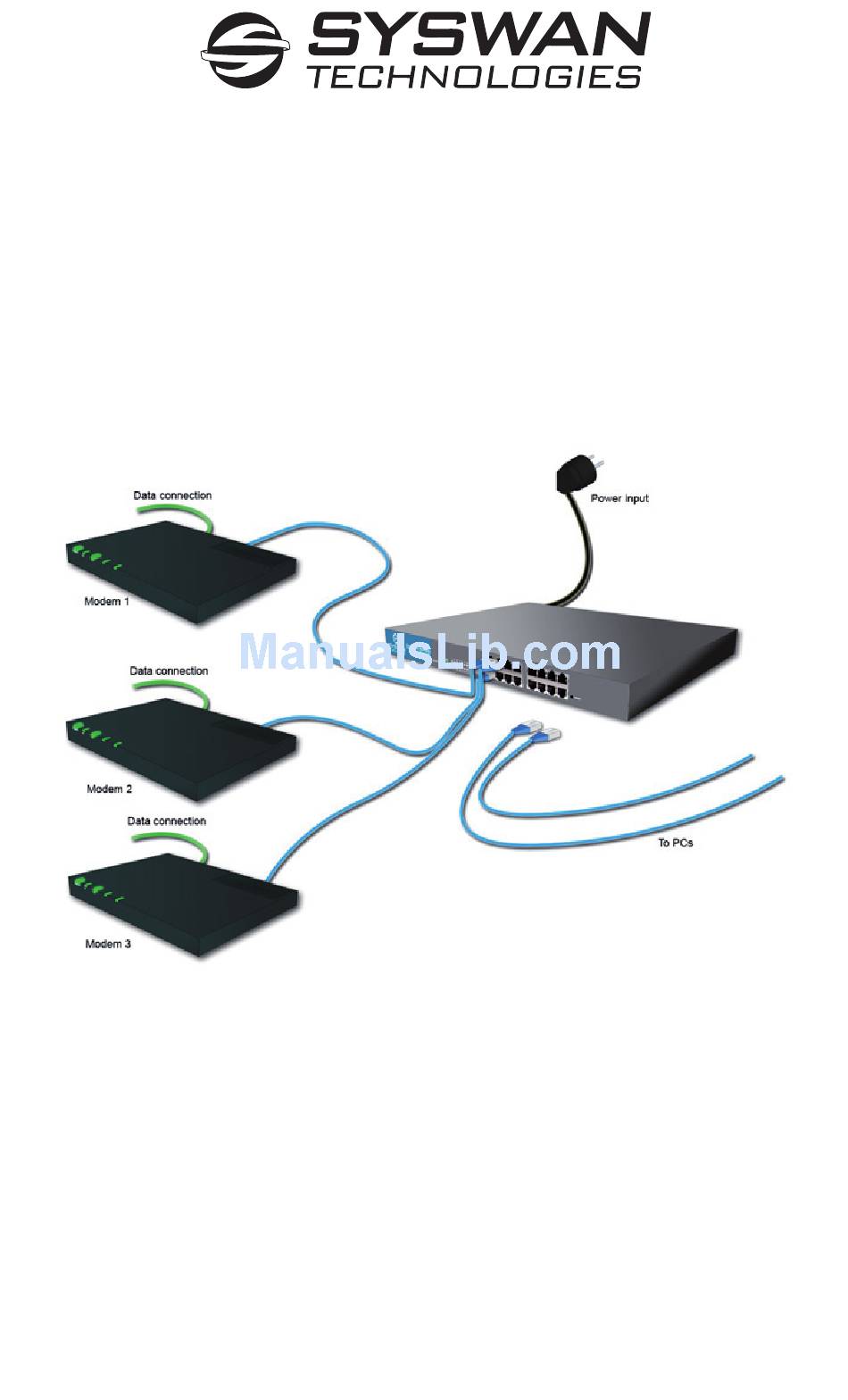

Connect your Octolinks SW88 Series multi WAN router

1. First, verify that your Octolinks SW88 Series router and your cable or DSL modems are powered OFF.

2. Using Ethernet cables connect your Broadband modems to the Octolinks SW88 Series router's WAN

ports on the front panel starting from Ethernet port number 1.

3. Connect the Ethernet cables from PCs to the LAN ports of your Octolinks SW88 Series router.

Any LAN port on the Octolinks SW88 Series router will automatically act as an «Uplink» port when

connected to another Ethernet Switch or Hub.

4. Power ON the modems and wait for synchronization (approx. 30 seconds).

5. Plug in the power cord of the Octolinks SW88 Series router to an electrical outlet and connect it into

the AC input on the back panel. Immediately the Power LED of your router will light up.

6. The corresponding WAN – Link/ACT LED will be ON if the WAN port is correctly connected to a

Broadband modem.

7. For each PC connected to the LAN ports, the corresponding LAN – Link/ACT LED will be ON.

Table of Contents

Do you have a question about the Octolinks SW88 Series and is the answer not in the manual?

Page 1: Quick Start Guide
4. Power ON the modems and wait for synchronization (approx. 30 seconds). 5. Plug in the power cord of the Octolinks SW88 Series router to an electrical outlet and connect it into the AC input on the back panel. Immediately the Power LED of your router will light up.
Page 2 The default user name is admin. On the admin setup page you will see next, you will be able to modify the default user name and set a password. Once done, select Submit. It is recommended that you set a password to prevent unauthorized access to your router. Select “Go to primary setup” to go to the Primary Setup page.
Page 3 1. Restart each PC connected to the LAN ports of your router in order to automatically obtain an IP address (DHCP) from your Octolinks SW88 Series router. 2. Ensure that your PCs are configured to use the Octolinks SW88 Series router for Internet access, as described below.
Page 4 For any additional information or assistance refer to your User Manual on the CD or visit our web site. Phone Support USA / Canada : 1 - 877 - 7 - SYSWAN (Toll Free : 1 - 877 - 779 - 7926) Phone Support International : 00 - 1 - 203 - 453 - 7326 E-mail Support : support@syswan.com...
