Syswan Duolinks SW24 Series Quick Start Manual

Syswan duolinks sw24: quick start

Hide thumbs Also See for Duolinks SW24 Series:

Quick Start Guide

For advanced setup please refer to your User Guide on the CD-ROM for more detailed information.

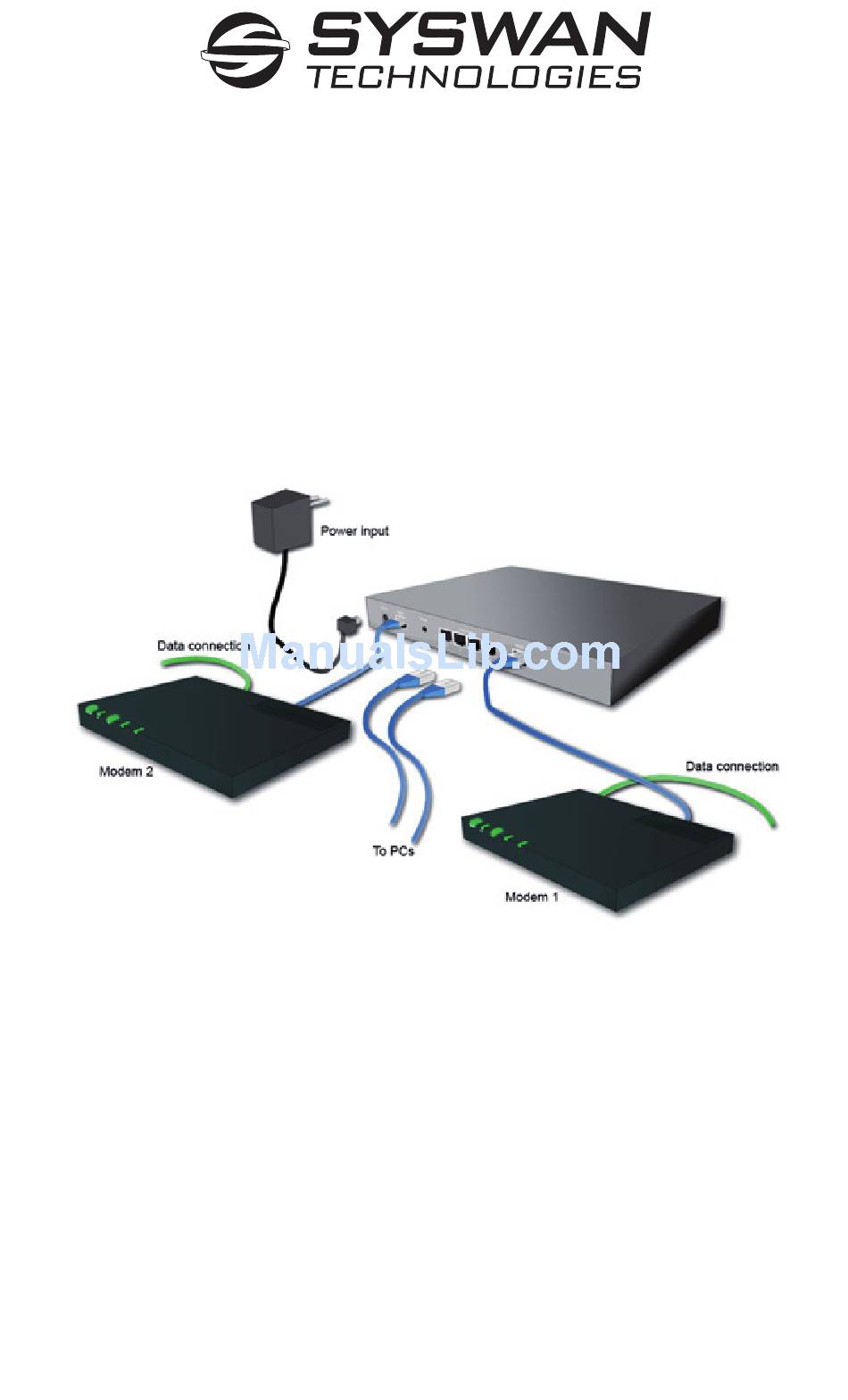

Step 1:

Connect your Duolinks SW24 Series router

1. First, verify that your Duolinks SW24 Series router and your cable or DSL modems are powered OFF.

2. Using Ethernet cables connect your Broadband modems to the Duolinks SW24 Series router's WAN

ports on the back panel.

3. Connect the Ethernet cables from PCs to the LAN ports of your Duolinks SW24 Series router.

Any LAN port on the Duolinks SW24 Series router will automatically act as an «Uplink» port when

connected to another Ethernet Switch or Hub.

4. Power ON the modems and wait for synchronization (approx. 30 seconds).

5. Plug in the power adapter of the Duolinks SW24 Series router to an electrical outlet and insert the

power cord into the DC 5V input on the back panel. Immediately the Power LED of your router will light

up.

6. The corresponding WAN – Link/ACT LED will be ON if the WAN port is correctly connected to a

Broadband modem.

7. For each PC connected to the LAN ports, the corresponding LAN – Link/ACT LED will be ON.

Table of Contents

Do you have a question about the Duolinks SW24 Series and is the answer not in the manual?

Page 1: Quick Start Guide
4. Power ON the modems and wait for synchronization (approx. 30 seconds). 5. Plug in the power adapter of the Duolinks SW24 Series router to an electrical outlet and insert the power cord into the DC 5V input on the back panel. Immediately the Power LED of your router will light 6.
Page 2 The default user name is admin. On the admin setup page you will see next, you will be able to modify the default user name and set a password. Once done, select Submit. It is recommended that you set a password to prevent unauthorized access to your router. Select “Go to primary setup” to go to the Primary Setup page.
Page 3 1. Restart each PC connected to the LAN ports of your router in order to automatically obtain an IP address (DHCP) from your Duolinks SW24 Series router. 2. Ensure that your PCs are configured to use the Duolinks SW24 Series router for Internet access, as described below.
Page 4 For any additional information or assistance refer to your User Manual on the CD or visit our web site. Phone Support USA / Canada : 1 - 877 - 7 - SYSWAN (Toll Free : 1 - 877 - 779 - 7926) Phone Support International : 00 - 1 - 203 - 453 - 7326 E-mail Support : support@syswan.com...
