Quick Facts
 Complete Package is Fully Assembled
and includes Motor Unit, Power Con-
trol Panel, UV Resistant High Density
Thermoplastic Float, Two 15' Braided
Nylon Mooring Lines, SJTOW Rated 3
Wire Power Cable, and 5 Glass Filled
Thermoplastic Deflector Nozzles (LED
Light Ring with 50' Cord is Standard
on 1400JFL Models)
 Operates in 12" (30.5cm) of Water
 Total Package Listed by ETL to meet
UL and CSA Standards for Safety in
Water
 Series 300 Austenitic Stainless Steel
Construction of Exposed Metal
 2 Year Warranty
 UPS Shippable
 LED Light Ring with 50' Cord and
Transformer is Standard with 1400JFL
Units and Optional with 1400JF Units
 Energy Efficient with Excellent GPM/
kW Rates
 Industrial Strength Design
 Top Intake for Shallow Water Opera-
tion
 UV Resistant Thermoplastic Fountain
Housing has Built In Screening to Keep
Debris Out and Allow for Maximum
Water Flow Into the Unit

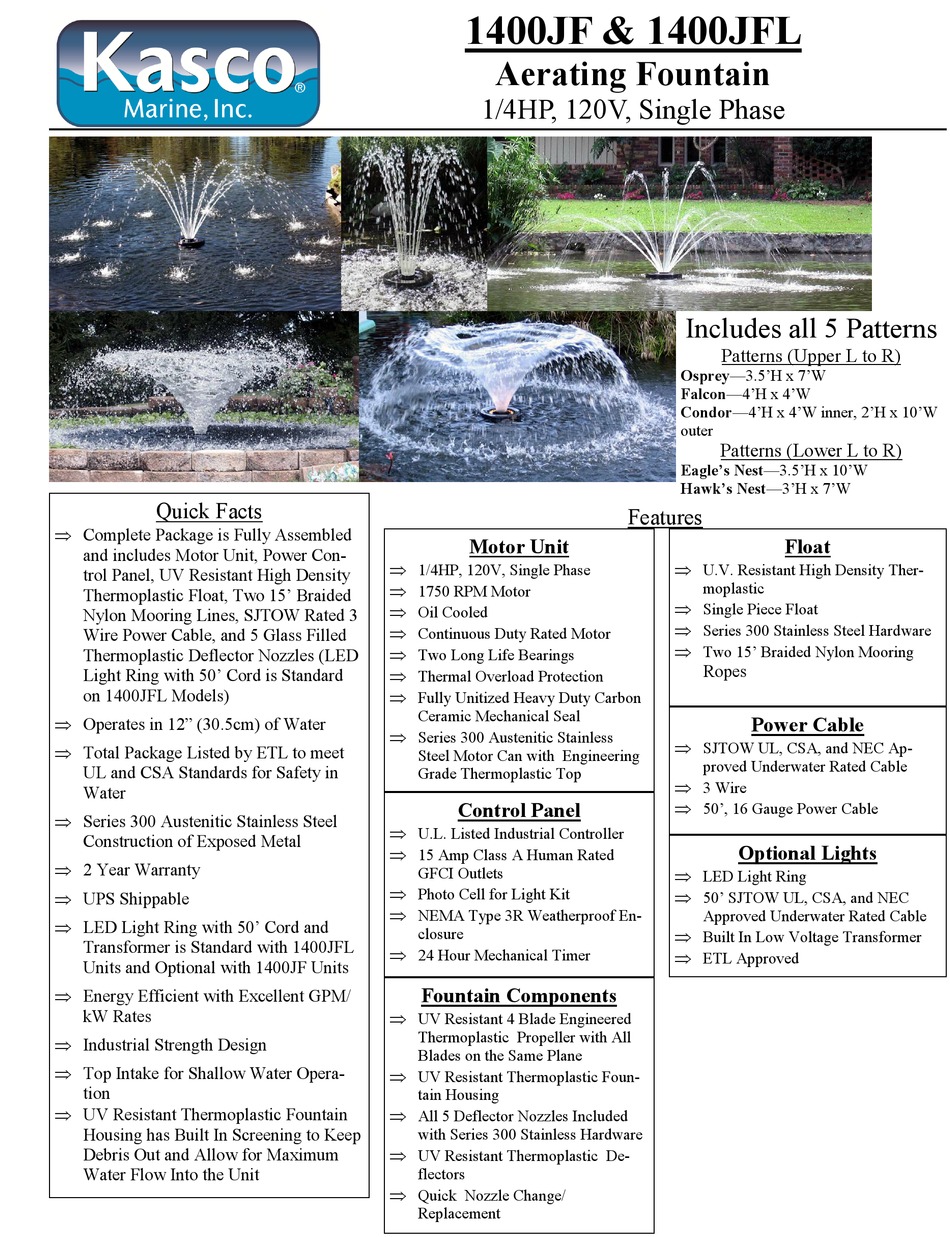

1400JF & 1400JFL
Aerating Fountain
1/4HP, 120V, Single Phase
Motor Unit

1/4HP, 120V, Single Phase

1750 RPM Motor

Oil Cooled

Continuous Duty Rated Motor

Two Long Life Bearings

Thermal Overload Protection

Fully Unitized Heavy Duty Carbon
Ceramic Mechanical Seal

Series 300 Austenitic Stainless
Steel Motor Can with Engineering
Grade Thermoplastic Top
Control Panel

U.L. Listed Industrial Controller

15 Amp Class A Human Rated
GFCI Outlets

Photo Cell for Light Kit

NEMA Type 3R Weatherproof En-
closure

24 Hour Mechanical Timer
Fountain Components

UV Resistant 4 Blade Engineered
Thermoplastic Propeller with All
Blades on the Same Plane

UV Resistant Thermoplastic Foun-
tain Housing

All 5 Deflector Nozzles Included
with Series 300 Stainless Hardware

UV Resistant Thermoplastic De-
flectors

Quick Nozzle Change/
Replacement
Includes all 5 Patterns
Patterns (Upper L to R)
Osprey—3.5'H x 7'W
Falcon—4'H x 4'W
Condor—4'H x 4'W inner, 2'H x 10'W
outer
Patterns (Lower L to R)
Eagle's Nest—3.5'H x 10'W
Hawk's Nest—3'H x 7'W
Features
Float

U.V. Resistant High Density Ther-
moplastic

Single Piece Float

Series 300 Stainless Steel Hardware

Two 15' Braided Nylon Mooring
Ropes
Power Cable

SJTOW UL, CSA, and NEC Ap-
proved Underwater Rated Cable

3 Wire

50', 16 Gauge Power Cable
Optional Lights

LED Light Ring

50' SJTOW UL, CSA, and NEC
Approved Underwater Rated Cable

Built In Low Voltage Transformer

ETL Approved
