SIP Industrial Products Limited
Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
United Kingdom
For help or advice please
contact your distributor, or SIP
directly on:
Tel.: 01509 500400
Email:
sales@sip-group.com or
customerservice@sip-group.com
www.sip-group.com

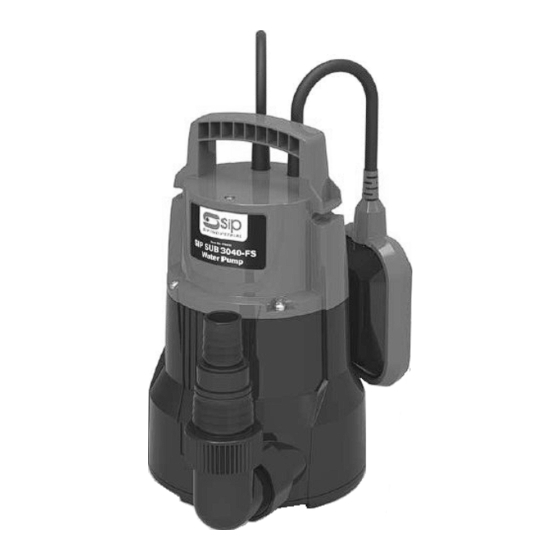

Submersible Water Pumps
06865 06889 06888 06825 06897
Advertisement
Table of Contents
Related Manuals for SIP 06865
Summary of Contents for SIP 06865

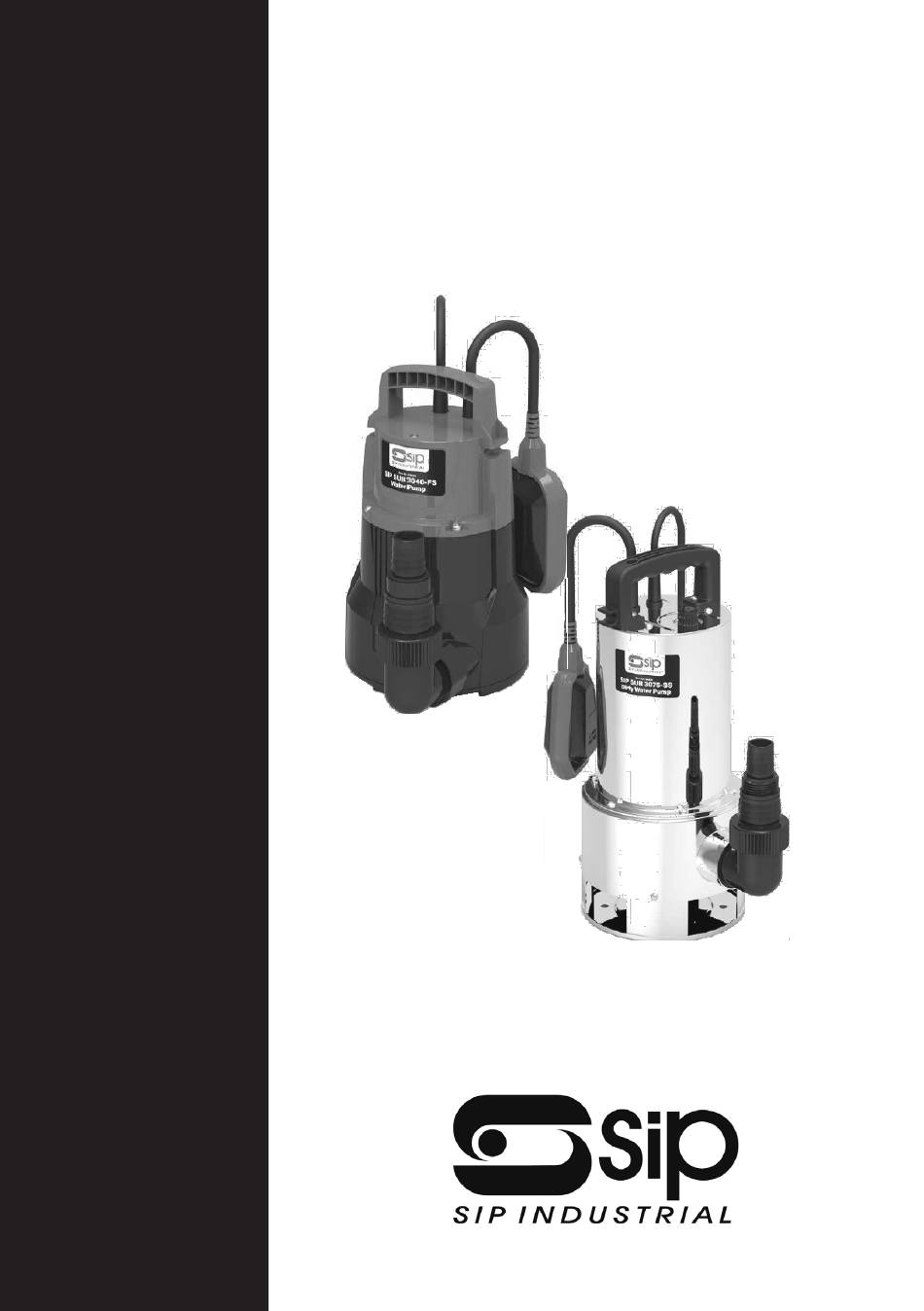

- Page 1 SIP Industrial Products Limited Gelders Hall Road Shepshed Submersible Water Pumps Loughborough Leicestershire LE12 9NH United Kingdom 06865 06889 06888 06825 06897 For help or advice please contact your distributor, or SIP directly on: Tel.: 01509 500400 Email: sales@sip-group.com or customerservice@sip-group.com...
-
Page 3: Table Of Contents
CONTENTS Page No. Description Safety Instructions Electrical Connections Guarantee Your item Technical Specifications Your item Technical Specifications Operating Instructions Maintenance Troubleshooting Wiring Diagram Exploded Drawing & Parts List Notes UK - Declaration Of Conformity EU - Declaration Of Conformity... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Danger / Caution: This picture indicates risk of personal injury and/ or the possibility of damage. Warning: This picture indicates risk of electrical injury or damage! Note: This picture indicates supplementary information. Important: Please read the following instructions carefully, failure to do so could lead to serious personal injury and / or damage to the item. - Page 5 • USE ONLY RECOMMENDED ACCESSORIES: Consult this user manual, your distributor or SIP directly for recommended accessories. Follow the instructions that accompany the accessories. The use of improper accessories may cause hazards and could invalidate any warranty you may have.
- Page 6 SAFETY INSTRUCTIONS • When installing, please ensure your SIP water pump is disconnected from the electrical supply to prevent possible injury to people and / or damage due to unwanted start up. • Avoid inserting hands or other objects into the inlet / outlet of the pump whilst it is connected to the mains supply.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. - Page 8 ELECTRICAL CONNECTIONS NOTE: Always make sure the mains supply is of the correct voltage and the correct fuse protection is used. In the event of replacing the fuse always replace the fuse with the same value as the original. NOTE: You must check and inspect all electrical products, before use, to ensure that they are safe.
-
Page 9: Guarantee
GUARANTEE This item is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or operating the item outside the scope of this manual - any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs, failure to regularly clean your item will shorten its working life and reduce performance. -
Page 10: Your Item
YOUR ITEM Item Description Item Description Base Handle Elbow Mains Lead Hose Adaptor Float Switch... -
Page 11: Technical Specifications
TECHNICAL SPECIFICATION 06865 06889 06888 Model No. Input Voltage 230v ~ 50hz Power 400W 550W 750W Flow Rate 150l/min 200l/min 233l/min Outlet Diameter 25mm Ø - 40mm Ø & 1” BSP Max. Pumping Head Max. Operating Depth Max. Particle 35mm 35mm Max. -
Page 12: Your Item
YOUR ITEM Item Description Item Description Base Handle Elbow Mains Lead Hose Adaptor Float Switch Air Test Port... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATION 06825 Model No. 06897 Input Voltage 230v ~ 50hz Power 750W 1000W Flow Rate 275l/min 300l/min Outlet Diameter 25mm Ø - 40mm Ø & 1” BSP Max. Pumping Head Max. Operating Depth Max. Particle 35mm Max. Water Temperature 35°C Body type Stainless steel... -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS ATTACHING THE HOSE • Choose the correct hose adaptor size to match your hose (diagram below). Fig.1 Fig.1 13, 15 & 19MM HOSE • Remove the topmost section from the hose adaptor (1). • Screw a 1” bsp female tap adaptor onto the hose adaptor. •... - Page 15 The duty cycle for these pumps is 60 minutes on followed by at least 10 minutes of rest. Other use than that specified is not permitted. CONTENTS & ACCESSORIES • Water Pump • Instruction Manual • Elbow • Hose Adaptor NOTE: If any parts are missing, please contact SIP Customer Service: customerservice@sip-group.com...
- Page 16 OPERATING INSTRUCTIONS INSTALLING THE PUMP When installing, please ensure your submersible pump is disconnected from the electrical supply to prevent possible injury to people and / or damage due to unwanted start up. • Screw the hose adaptor onto the elbow, then screw it into the side of the water pump.
- Page 17 OPERATING INSTRUCTIONS Float Cable Slot Fig.3 NOTE: You may need to shake the float switch if the pump has not been use for a long period or when it is used for the first time.
-
Page 18: Maintenance
MAINTENANCE Danger / Caution: Prior to any adjustment, maintenance or service work. Switch off the machine and disconnect the mains power plug! The pump is mainly maintenance free as long as the pump is drained and cleaned after each use; You may need, from time to time to clear the impeller of any unwanted waste / debris. -
Page 19: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Remedy A. The suction grid is clogged. B. The impeller is clogged or 1. The pump works but it damaged. A. Clean the filter. does not deliver water. C. The required head is B. Remove the blocks. higher than the pump characteristic. -
Page 20: Wiring Diagram
WIRING DIAGRAM 06865 06889 & 06888 & 06825... - Page 21 WIRING DIAGRAM 06897...
-
Page 22: Exploded Drawing & Parts List
EXPLODED DRAWING & PARTS LIST *For full Exploded Drawing, Parts List & Wiring Diagram contact: • https://www.sip-group.com/ • SIP Customer Service: 01509 500400 • Email: customerservice@sip-group.com... -
Page 23: Notes
NOTES... - Page 24 DECLARTION OF CONFORMITY - 06865...
- Page 25 DECLARATION OF CONFORMITY - 06888...
- Page 26 DECLARATION OF CONFORMITY - 06825...
- Page 27 DECLARATION OF CONFORMITY - 06897...
- Page 28 OR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR, OR SIP DIRECTLY Please dispose of packaging for the product in a TEL: 01509 500400 responsible manner. It is suitable for recycling. Help EMAIL: to protect the environment, take the packaging to ales@sip-group.com or...
