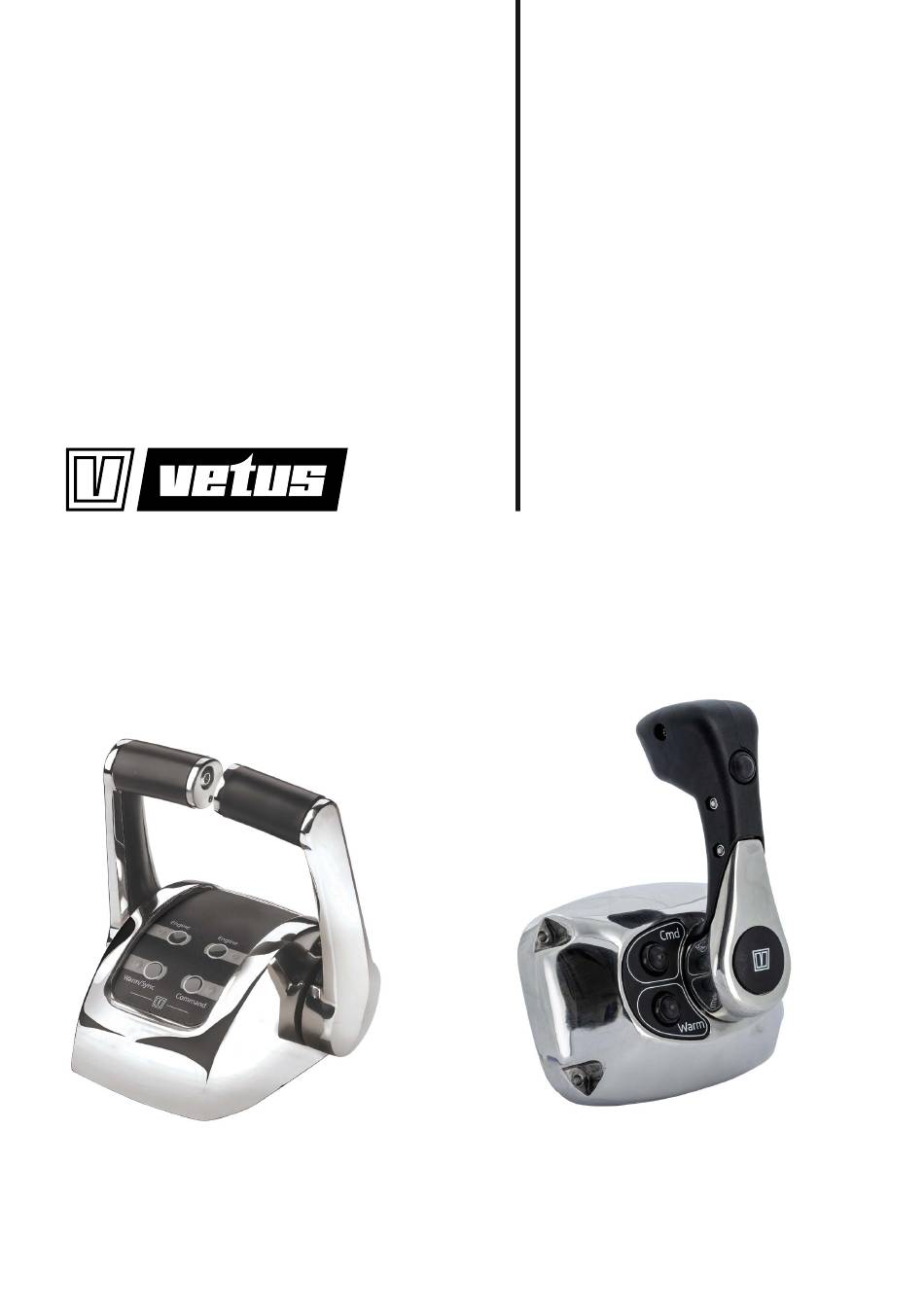

- Page 1 Installation & user manual ENGLISH Trolling & Flap option for Electronic engine remote control EC4HSM Copyright © 2023 VETUS B.V. Schiedam Holland 030626.03...
-
Page 2: Table Of Contents
Contents Introduction ..................3 General installation features . -
Page 3: Introduction
For general information about how to install an electronic control system, please refer to the product manual for control levers EC3 & EC4. The same Trolling option can be used either with levers EC3 & EC4. General installation features... -
Page 4: Pilot Instructions
Pilot instructions The command station for the standard electronic system or for the electronic system with the trolling option is the same. It is possible to switch between standard operating mode and trolling mode and vice versa by simply depressing for 2 seconds the Command push button of the station which at the moment has the command of the electronic system (red command light = “ON”). -
Page 5: Control Keypad
• fixed light if trolling function is deactivated Control keypad On the command station it is mounted an electronic keypad with 4 push-buttons and 4 LEDs. Command station EC3 Command station EC4 without trim option with trim option Trim vetus... -
Page 6: Acquisition Of The Command
It follows the table with the definition of LED and push buttons. Push-button Description Engine The left LED is for the port (left) engine, while the right LED is for the star- board (right) engine. If the LED has a fixed light on (green), the correspond- ing gearbox is in neutral position. -
Page 7: Synchro Mode
Synchro mode It is possible to command both engines at the same speed and direction with only one lever. This function can be acti- vated only by the station which has the command. With both levers in neutral position, press at the same time for 1,5 seconds the two “engine” push-buttons. The command of both engines is now on the right lever. -
Page 8: Actuator
• N° 1 cable 6 poles for the gearbox + neutral relay (code ECG3/6,ECG5/6 or ECG7/6 (see product manual EC3-EC4)) • N° 1 cable 2 poles for the PWM command of the trolling (2 wire used, code EC3T3M (see product manual EC3-EC4)) Electronic engine remote control 030626.03... -
Page 9: Wiring From The Actuator Box To Gearbox With Trolling Option
Wiring from the actuator box to gearbox with trolling option Cabling of gearbox and neutral relay Solenoid FWD Function Wire number Forward (FWD) - Signal Reverse (REV) - Signal Gearbox Neutral relay Forward (FWD) - GND Neutral relay Solenoid REV Reverse (REV) - GND Cabling of the trolling valve Function... -
Page 10: Relays Pcb Version 3.0 For Electronic Gearboxes With Trolling Option
Relays PCB version 3.0 for electronic gearboxes with trolling option Fuse 9 10 11 12 Description (Not connected) GND (connect to Wire ID 4 and 6 of “Gearbox + neutral” connectors, both left and right) Connect to VDC (Pin 1) Forward Left (Wire ID 1, “Gearbox + neutral”... -
Page 11: Programming Of The Trolling Functions
Programming of the Trolling functions This chapter is dedicated to the specific parameters for setting up the trolling functionalities: for general programming of the actuator please refer to chapter 11 of the Lever EC3 - EC4 Product Manual. Trolling actuator parameters Flexball actuator for trolling control permits to adapt to every trolling valve system by correctly modifying a specific set of parameters, which are listed in the following table. - Page 12 Parameter “t4” In some application it might be useful to slightly change the motor speed during the trolling ramp. When motor is idling, motor speed could be at its minimum. When the gear is engaged, it might be necessary to slightly increase the motor RPM to compensate an increase of the increased load of the shft + propeller, which are now clutched together with the motor.
- Page 13 The following pictures describe the trolling parameters effect in case trolling is active. (current) t5=1 t5=0 Lever angle 16° 48° 80° Engine throttle 100% Lever angle 16° 48° 80° (current) Time Notes: • In the third graph, time “0” is the instant at which the lever reaches the mechanical indent (gear engagement): no more lever movement is assumed;...
-
Page 14: Flap Actuator Box Option
Flap actuator box option In case in addition to the trolling option it is required also the Flap option, the system must be added of the option kit which is composed of: • Trim/Flap actuator box • N°1 T CANBus connector •... - Page 15 Installation scheme: For all the instruction related to this function, please refer to the Lever EC3 - EC4 product Manual. Wire number Function Yellow/green Supply (external) Black 1 TRIM/FLAP + Black 2 TRIM/FLAP - V DC Gearbox: Yellow/Green V DC Trim ap: Brown...
-
Page 16: System Types And Installation Schemes
System types and installation schemes The actual plant architecture is related to • type and quantity of engines; • type of gearboxes; • number of command stations. Actuators and command stations, which communicate together through the CANBus network, must be configured in relation to where they are connected to the CANBus network. -
Page 17: Installation With 2 Mechanical Actuators - Solution B
Installation with 2 mechanical actuators – solution B Command station A Command station C Command station B Actuator full electronic Left and right engines Actuator for flap option JP14: NO (address) JP19: NO (end-line) Data transmission cable Code: DTCANxx This installation scheme is valid for systems with up to 3 command stations and 2 engines and gearboxes, full electronic Electronic engine remote control 030626.03... -
Page 18: Electrical Cables
Black 1 Black 2 Black 3 Black 4 Black 5 Black 6 Yellow/Green Length Vetus code L=3 m ECG3/6 L=5 m ECG5/6 L=7 m ECG7/6 Important: this cable is without connector on gearbox side Actuator – Trolling valve cable & Actuator box – Trim/flap cable The same cable is used either to connect the Actuator to the Trolling valve and the Flap actuator box to the flap option. - Page 19 Electronic engine remote control 030626.03...
